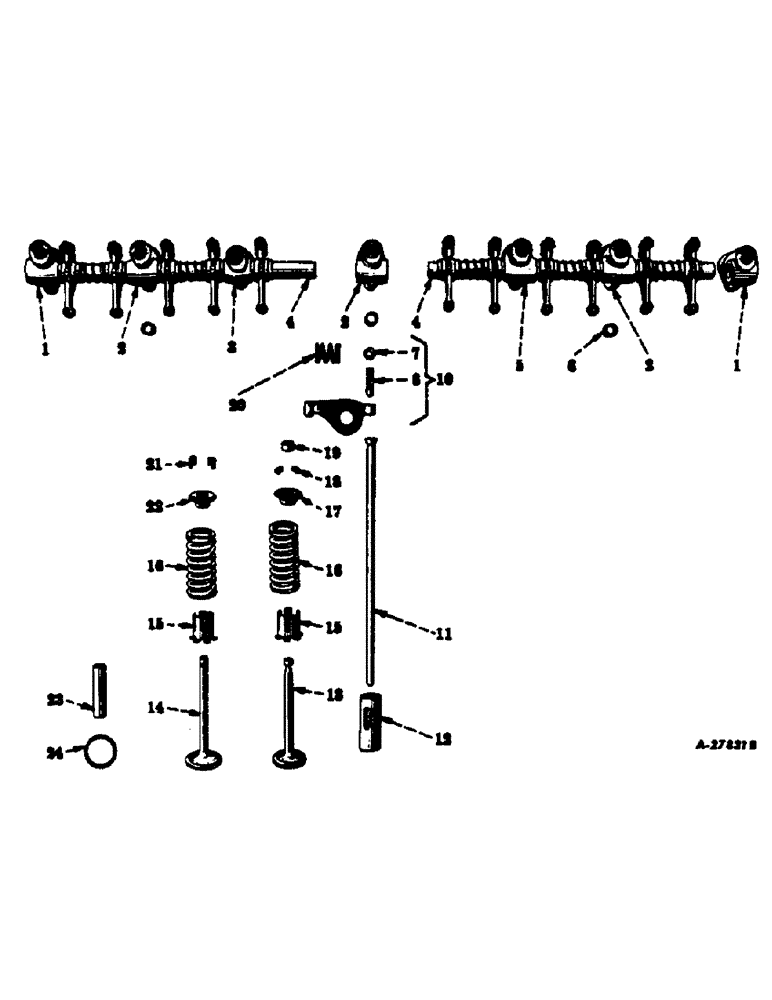

Запчасти Case IH 303 (322) - BD-220 ENGINE, 3-9/16 X 3-11/16, VALVES, TAPPETS, ROCKER ARMS AND LIFTER RODS (10) - ENGINE

1

164422R1

BRACKET

front and rear rockershaft

2шт.

2

164423R11

BRACKET

W/DOWEL ASSY, rocker arm shaft

3шт.

3

164425R1

BRACKET

rocker arm shaft, intermediate no. 3

1шт.

4

76953R3

SHAFT

front rocker arm

2шт.

109544R1

PLUG

3/4 expansion plug

2шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

2шт.

5

164425R1

BRACKET

rocker arm, intermediate no. 5

1шт.

6

69500R1

SLEEVE

DOWEL, rocker arm shaft bracket hollow, intermediate nos. 2, 4, and 6

3шт.

7

133093R1

NUT,Hex, 3/8" - 24

tapping adjusting screw lock

12шт.

8

16067DA

ADJUSTMENT SCREW,3/8" - 24

tappet adjusting

12шт.

9

NOT USED

1шт.

10

164432R91

ARM

ASSY, valve rocker

12шт.

11

164436R91

PUSH ROD

ROD, valve push

12шт.

12

75524R3

TAPPET

valve

12шт.

13

164429R2

VALVE

exhaust, roto

6шт.

14

234275R1

VALVE

intake

6шт.

15

75941H

DAMPER, valve spring

12шт.

16

76954R1

SPRING

valve

12шт.

17

105306R2

CUP

RETAINER, exhaust valve spring

6шт.

18

84484R3

RETAINER

LOCK, exhaust valve spring

12шт.

19

84482R1

CUP

exhaust valve tip, roto

6шт.

20

35619H

SPRING

valve rocker arm

6шт.

21

41339D

KEY

intake valve spring retainer

12шт.

22

151167R3

SEAT

RETAINER, intake vavle spring

6шт.

23

237248R1

GUIDE

intake and exhaust valve stem

12шт.

24

NOT USED

1шт.

866834R1

BAFFLE

DEFLECTOR, oil intake and exhaust valve

12шт.
