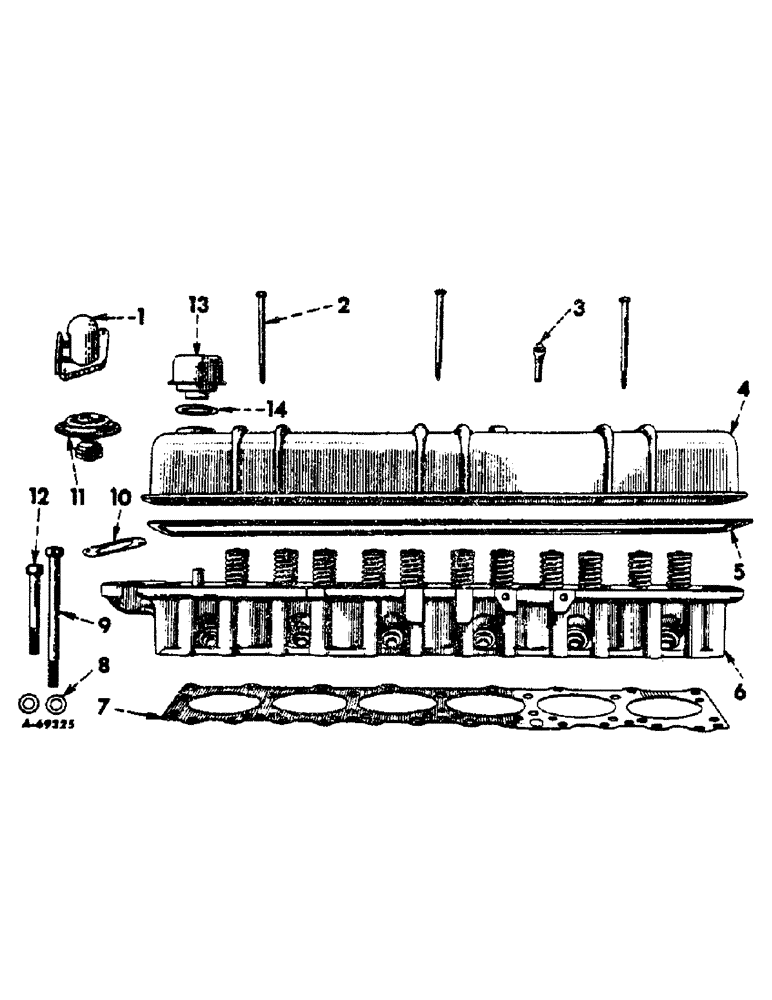

Запчасти Case IH 303 (321) - BD-220 ENGINE, 3-9/16 X 3-11/16, CYLINDER HEAD, VALVE AND CONNECTIONS (10) - ENGINE

1

316384R1

ELBOW, water outlet

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

168144R1

BOLT (SPREADER)

BOLT, cylinder head cover

3шт.

Q399

WASHER

CYLINDER HEAD COVER BOLT WASHER

3шт.

3

665016R91

TEMPERATURE SENDER

UNIT ASSY, temperature sending

1шт.

4

164419R11

COVER ASSY, cylinder head

1шт.

164420R1

GROMMET

CYLINDER HEAD COVER GROMMET

3шт.

5

369983R1

GASKET

cylinder head cover

1шт.

6

184872R95

HEAD W/VALVES AND SPRINGS ASSY, cylinder, Composed of

1шт.

84402R1

CUP

6шт.

75941H

DAMPER

12шт.

866834R1

BAFFLE

DEFLECTOR

12шт.

184871R94

HEAD

1шт.

41339D

KEY

12шт.

84484R3

RETAINER

LOCK

12шт.

151167R3

SEAT

RETAINER

6шт.

105306R2

CUP

RETAINER

6шт.

76954R1

SPRING

12шт.

164429R2

VALVE

6шт.

234275R1

VALVE

6шт.

6

184871R94

HEAD ASSY, cylinder, Composed of

1шт.

164415R3

HEAD

1шт.

237248R1

GUIDE

12шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, Sq Hd, 1/2"-14 NPTF

1шт.

70128R1

PLUG,Cup, 1 5/8"

1шт.

70128R1

PLUG,Cup, 1 5/8"

1-5/8 expansion

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

1шт.

7

164418R2

CYLINDER HEAD GASKET

cylinder head

1шт.

8

56516H

WASHER, cylinder head bolt

14шт.

9

118643HA

BOLT

long cylinder head

7шт.

10

69742R1

GASKET

water outlet elbow

1шт.

11

216906R91

THERMOSTAT

158 deg - 163 deg

1шт.

11

108119R91

THERMOSTAT

148 deg - 153 deg

1шт.

12

69722R1

BOLT,Hex, 1/2" - 13 x 4.688", Gr 8

short cylinder head

8шт.

13

76770R91

CAP

oil filler

1шт.

14

87351R1

GASKET

oil filler cap

1шт.
