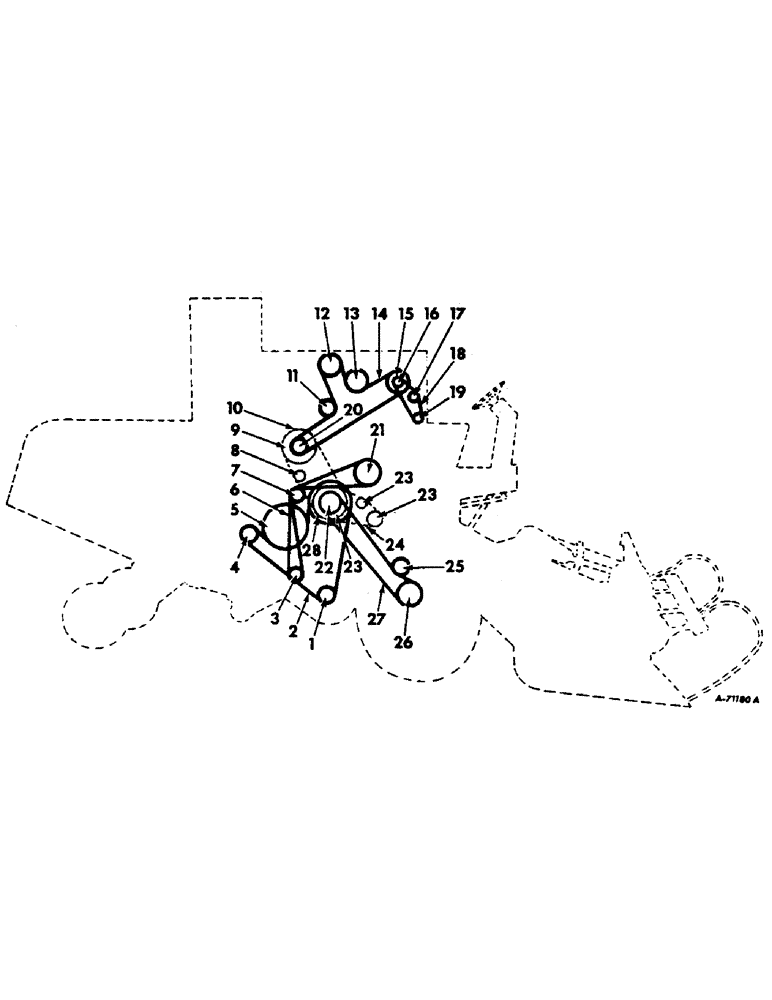

Запчасти Case IH 303 (014) - BELT, CHAIN, SHEAVE AND SPROCKET DIAGRAM, RIGHT SIDE (05) - SERVICE & MAINTENANCE

1

634076R1

SHEAVE, inner half drive, regular

1шт.

1

634078R1

SHEAVE, inner half driven, slow speed fan drive attachment, See unit listed under fan drive and slow speed fan attachment

1шт.

1

564481R2

SEHAVE, outer half driven, regular

1шт.

1

564811R2

SHEAVE, outer half driven, slow speed fan drive attachment, See unit listed under fan drive and slow speed fan attachment

1шт.

2

937928R1

V-BELT

Fan and straw rack drive, regular, For grain, rice, and windrow special, See unit listed under straw rack and drive

1шт.

2

629334R1

BELT

fan and straw rack drive, regular, For bean, special, slow speed, Serial no. 7277 & below, See ref. no. 14 listed under straw rack and drive

1шт.

2

150434C1

V-BELT,0.88" W x 166.99" L

Fan and Straw Rack Drive, Regular, For Bean, Special, Slow Speed, See Unit Listed Under Straw Rack and Drive 0.88" W x 166.99" L

1шт.

3

627895R1

PULLEY

SHEAVE, unloader auger drive

1шт.

4

574097R91

PULLEY

SHEAVE, fan belt tightener, See unit listed under fan drive and slow speed fan attachment

1шт.

5

568237R11

SHEAVE W/SPACER, straw rack driven, See unit listed under straw rack and drive

1шт.

5

574040R1

SHEAVE, straw rack driven, regular for bean special, slow speed, See unit listed under straw rack and drive

1шт.

6

562655R1

V-BELT,0.88" W

Unloader drive, See unit listed under grain tank unloader auger drive 0.88" W

1шт.

7

154742C91

PULLEY

SHEAVE ASSY, unloader drive tightener sheave outer, See unit listed under grain tank unloader auger drive

1шт.

7

570265R91

PULLEY

SHEAVE ASSY, unloarder drive tightener sheave inner, See unit listed under grain tank unloader auger drive

1шт.

8

565442R91

SPROCKET

elevator drive chain tightener, See unit listed under grain elevator and drive

1шт.

9

629166R1

SPROCKET ASSY.

SPROCKET, elevator jackshaft driven, 38T, See unit listed under grain elevator and drive

1шт.

10

CHAIN, elevator jackshaft drive roller, Order 71 links of 5/8 pitch roller chain, standard, from a 10 ft. roll marked 1791D, (1) connecting link, 1310D, See unit listed under grain elevator and drive

1шт.

11

154742C91

PULLEY

SHEAVE, elevator drive tightener, See unit listed under grain elevator and drive

1шт.

12

633198R1

SHEAVE, elevator driven, See unit listed under grain elevator and drive, Serial no. 7277 & below

1шт.

12

939241R11

PULLEY ASSY.

PULLEY ASSY, elevator driven, See unit listed under grain elevator and drive, Serial no. 7278 & above

1шт.

13

633199R1

SHEAVE, grain tank distributor auger drive, See unit listed under grain elevator and drive

1шт.

14

937928R1

V-BELT

Elevator drive, Grain machines equipped with grain tank

1шт.

14

150434C1

V-BELT,0.88" W x 166.99" L

Elevator Drive, Rice Machines Equipped with Grain Tank, Also Used on Grain Machine with Raised Leveling Auger 0.88" W x 166.99" L

1шт.

14

634891R1

V-BELT 0.88" W, Elevator drive, Grain machines equipped with grain tank, Grain tank extension and scourkleen attachment, Serial no. 2750 & below 0.88" W

1шт.

14

150433C1

V-BELT,206.49" L

Elevator Drive, Grain Machines Equipped with Grain Tank and Scourkleen Attachment 206.49" L

1шт.

14

150431C1

BELT, elevator drive, rice machines equipped with grain tank and scourkleen attachment, Also used on grain machines equipped with raised leveling auger and scourkleen, See unit listed under grain elevator and drive

1шт.

14

150435C1

BELT

elevator drive, bagger

1шт.

14

150434C1

V-BELT,0.88" W x 166.99" L

Elevator Drive, Grain Machine with Grain Tank Extension, Serial No. 2750 amd Below 0.88" W x 166.99" L

1шт.

14

626589R1

BELT,0.88" W

V-BELT , Elevator drive, Grain machine with grain tank extension, Serial no. 2751 to 7277 0.88" W

1шт.

14

150433C1

V-BELT,206.49" L

Elevator Drive, Grain Machine with Grain Tank Extension and Scourkleen, Serial No. 2751 to 7277 206.49" L

1шт.

14

152585C1

BELT, elevator drive, grain machine with grain tank extension, and scourkleen, Serial no. 7278 to 9429, See unit listed under grain elevator and drive

1шт.

15

633198R1

SHEAVE, elevator driven, See unit listed uner tailings elevator and drive, Serial no. 7277 & below

1шт.

15

939241R11

PULLEY ASSY.

PULLEY ASSY, elevator driven, Serial no. 7278 & above, See unit listed under tailings elevator and drive

1шт.

16

632830R1

PULLEY

SHEAVE, tailings delivery auger drive, See unit listed under tailings delivery auger drive

1шт.

17

567872R91

PULLEY

SHEAVE ASSY, tailings delivery auger drive belt tightener, See unit listed under tailings elevator and drive

1шт.

18

627297R1

V-BELT,0.63" W

Tailings delivery auger drive, See unit listed under tailings elevator and drive 0.63" W

1шт.

19

633282R1

SHEAVE

tailings auger driven, See unit listed under tailings elevator and drive

1шт.

20

627988R1

SHEAVE, elevator drive, See unit listed under grain elevator and drive

1шт.

20

936394R1

PULLEY, elevator drive, fast speed

1шт.

21

22784KA

PULLEY

SHEAVE W/RING, unloader driven, See unit listed under grain tank unloader drive

1шт.

22

564497R1

SHEAVE, Shaker shaft drive, See unit listed under grain pan and Shaker shaft drive

1шт.

23

564475R2

SPROCKET ASSY.

SPROCKET, 20T, single, grain, regular

1шт.

23

565376R2

SPROCKET ASSY.

SPROCKET, 30T, single, rice, regular

1шт.

23

564476R2

SPROCKET, 25T, single, regular

1шт.

23

564474R2

SPROCKET ASSY.

SPROCKET, 43T, single, regular

1шт.

23

627886R1

SPROCKET, 22T, single, regular

1шт.

23

568855R1

SPROCKET, 43T, single, bean special

1шт.

23

574054R1

SPROCKET, 48T, single, bean special

1шт.

23

569201R2

PINION

SPROCKET, 20T, double, grain

1шт.

23

569200R2

DRIVE SPROCKET

SPROCKET, 25T, double, grain, special

1шт.

23

569202R2

DRIVE SPROCKET

SPROCKET, 43T, double, grain, special

1шт.

23

627884R1

SPROCKET ASSY.

SPROCKET, 22T, double, grain, special, See unit listed under cylinder drive and slip clutch

1шт.

24

CHAIN, cylinder drive roller, Use 75 links of 3/4 single pitch standard roller chain from a 10 ft. roll marked 1793D, (1) roller link, 1316D and two pitch combination offset links, 570036R91, grain

1шт.

24

CHAIN, cylinder drive roller, Use 79 links of 3/4 single pitch standard roller chain from a 10 ft. roll marked 1793D, (2) roller links, 1316D, (4) connecting links, 1786D, and two pitch combination offset links, 570036R91, rice

1шт.

CHAIN, cylinder drive roller extension, Use 6 links of 3/4 single pitch roller chain from a 10 ft. roll marked 1793D, (3) connecting links, 1786D and (1) two pitch combination offset connecting links, 570036R91, bean special, See unit listed under cylinder drive and slip clutch

1шт.

25

566519R91

PULLEY

SHEAVE, drive belt tightener, See unit listed under grain pan and Shader shaft drive

1шт.

26

564569R11

PULLEY ASSY.

SHEAVE ASSY, Shaker shaft driven, Not bean special

1шт.

26

628503R1

SHEAVE, Shaker shaft driven, fast speed

1шт.

26

553412R91

SHEAVE ASSY, Shaker shaft driven, bean special, See unit listed under grain pan and Shaker shaft drive

1шт.

27

13988K

V-BELT,115.23" L

Shaker shaft Drive, Not Bean Special 115.23" L

1шт.

27

553079R1

V-BELT,0.66" W

Shaker shaft drive, Bean special, See unit listed under grain pan and shaker shaft drive 0.66" W

1шт.

27

561093R1

V-BELT,0.63" W

Shaker shaft drive, Fast speed, Shaker shaft driven sheave attachment 0.63" W

1шт.

28

629164R2

SPROCKET ASSY.

SPROCKET AND SHEAVE, elevator jackshaft drive, 38T, See unit listed under fan drive and slow speed fan attachment

1шт.
