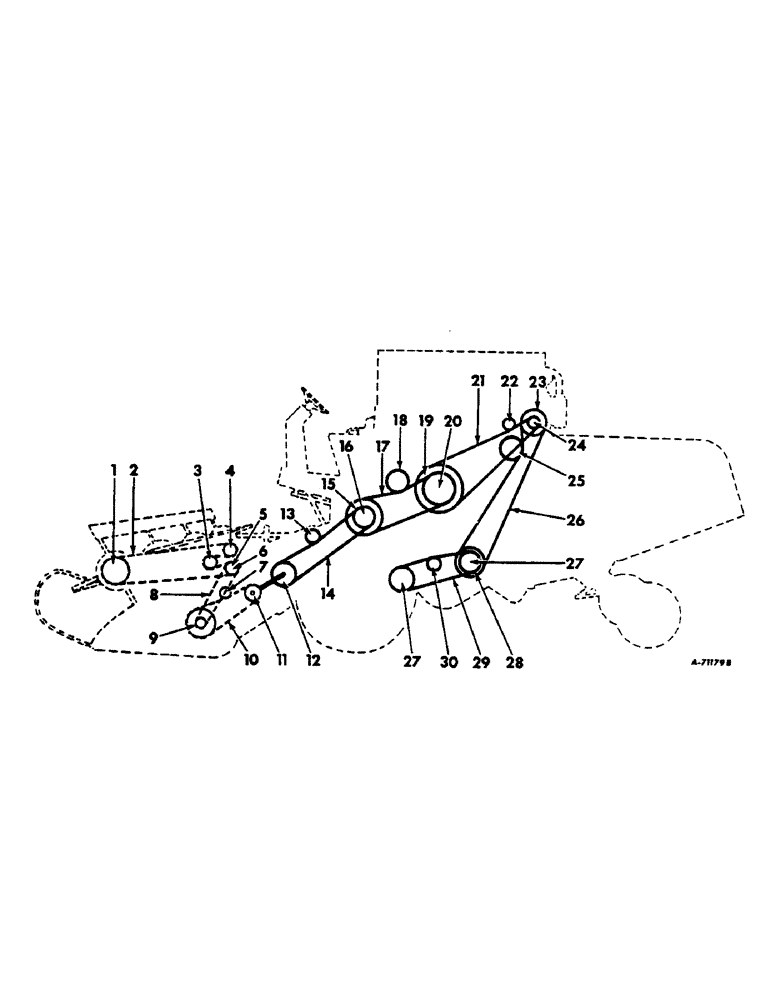

Запчасти Case IH 303 (011) - BELT, CHAIN, SHEAVE AND SPROCKET DIAGRAM, LEFT SIDE (05) - SERVICE & MAINTENANCE

1

570032R1

SPROCKET ASSY.

SPROCKET, reel shaft 20T, See unit listed under reel support arms and drive

1шт.

CHAIN, reel drive roller, Use 110 links of 1-1/4 extended pitch stock roller chain, agricultural, from a 10-ft. roll marked 569089R91, and (1) connecting link, 456980R91, and (1) offset connecting link, 454929R91, See unit listed under reel support arms and drive

1шт.

3

564989R91

DRIVE SPROCKET

SPROCKET ASSY, reel drive chain tightener, 9T, See unit listed under reel support arms and drive

1шт.

4

564989R91

DRIVE SPROCKET

SPROCKET ASSY, reel drive chain idler, 9T, See unit listed under reel support arms and rive

1шт.

5

569018R1

SPROCKET ASSY.

SPROCKET, reel idler drive, slow speed, 16T

1шт.

5

569019R1

NO LONGER SERVICED

SPROCKET, reel idler drive, intermediate speed, 14T

1шт.

5

588771R1

SPROCKET ASSY.

SPROCKET, reel driven, standard for rice, special for grain, 19T

1шт.

5

569020R1

SPROCKET ASSY.

SPROCKET, reel idler drive, fast speed, grain, 12T, See unit listed under platform auger and drive

1шт.

6

569017R1

SPROCKET ASSY.

SPROCKET, reel drive idler, 8T, See unit listed under reel support arms

1шт.

7

564989R91

DRIVE SPROCKET

SPROCKET, platform auger drive tightener, 9T, 10, 12 and 13 ft. platform

1шт.

7

571441R91

SPROCKET ASSY.,15T

SPROCKET, platform auger drive tightener, 13 ft. and 14 ft., See unit listed under platform auger and drive

1шт.

CHAIN, reel jackshaft drive roller, Use 43 links of 1-1/4 extended pitch stock of roller chain, agricultural, from a 10 ft. roll marked 569089R91, (3) roller links, 456979R91, (3) connecting links, 456980R91, (4) offset connecting links, 456929R91, See unit listed under platform auger and drive

1шт.

9

569333R1

SPROCKET ASSY.

SPROCKET, platform auger drive slip clutch, 10 ft., 12 ft, and 13 ft., 27T and 10T

1шт.

9

571460R1

SPROCKET ASSY.

SPROCKET, platform auger drive slip clutch, 45T and 10T, 14 ft.

1шт.

9

156867C1

SPROCKET ASSY.

SPROCKET, platform auger drive slip clutch, 45T and 10T, 14 ft., See unit listed under platform auger and drive

1шт.

10

CHAIN, platform auger drive roller, Use 49 links of 1-1/4 extended pitch stock roller chain, agricultural, from a 10 ft. roll marked 5469089R91, (1) connecting link, 456980R91 and (2) offset connecting links, 456929R91, 10 ft. and 12 ft. platforms

1шт.

10

CHAIN, platform auger drive roller, Use 85 links of 3/4 pitch stock roller chain, standard, from a 10 ft. roll marked 1793D, (1) connecting link, 1317D, 13 ft., 14 ft., See unit listed under platform auger and drive

1шт.

11

633711R1

SPROCKET ASSY.

SPROCKET, platform auger and reel drive, 10T, 10 ft., 12 ft. and 13 ft., regular

1шт.

11

633715R1

SPROCKET ASSY.

SPROCKET, platform auger and reel drive, 17T, 14 ft., regular

1шт.

11

589148R91

SPROCKET ASSY, platform auger and reel drive, 15T, slow speed, 14 ft.

1шт.

11

634127R1

SPROCKET, platform auger and reel drive, 20T, special, For machines equipped with platform less cutting parts, See unit listed under feeder and feed conveyor chain

1шт.

12

571435R1

SHEAVE, jackshaft driven, 14 ft., Serial no., Serial Range: 501-4806

1шт.

12

654592R1

SHEAVE, jackshaft drive, 14 ft., Serial no. 4807 & above

1шт.

12

574049R11

SHEAVE ASSY, platform jackshaft driven, See unit listed under feed conveyor chain

1шт.

13

566518R91

PULLEY,152.4mm Idler Dia x 171.45mm OD x 38.1mm W

SHEAVE, platform jackshaft tightener, 10 ft., 12 ft. and 13 ft., See unit listed under feeder and feed conveyor chain

1шт.

13

568941R11

PULLEY

SHEAVE, platform jackshaft tightener, 14 ft., See unit listed under feeder and feed conveyor chain

1шт.

14

633724R2

V-BELT,0.88" W

Platform jackshaft drive, 10 ft., 12 ft. or 13 ft. equipped w/13.6/12-26, 14.9/13-26 and 16.9/14-26 main wheel tires 0.88" W

1шт.

14

633726R2

V-BELT,0.88" W

Platform jackshaft drive, 10 ft., 12 ft. or 13 ft. equipped w/18.4/15-26 main wheel tires, Serial no. 9428 & below 0.88" W

1шт.

14

569845R1

V-BELT, Platform jackshaft drive, 14 ft. equipped with 13.6/12-26, 14.9/13-26 and 16.9/14-26 main wheel tires

1шт.

14

150814C1

BELT, platform jackshaft drive, 10 ft. and 13 ft. equipped with 18.4-26 main wheel tires, Serial no. 9429 & above, See unit listed under feeder and feed conveyor chain

1шт.

14

633727R1

V-BELT,0.88" W

Platform jackshaft drive, 10 ft., 12 ft. or 13 ft. equipped w/23.1/18-26 main wheel tires 0.88" W

1шт.

14

569663R1

V-BELT, Platform jackshaft drive, 10 ft. and 13 ft. equipped with 23.1-26 main wheel tires, Serial no. 9429 & above, See unit listed under feeder and feed conveyor chain

1шт.

14

633723R2

V-BELT,1.26" W

Platform jackshaft drive, 14 ft. equipped w/18.4/15-26 main wheel tires, See unit listed under feeder and feed conveyor chain 1.26" W

1шт.

14

569845R1

V-BELT, Platform jackshaft drive, 14 ft. equipped with 14.9-26 or 16.9-26 main wheel tires, See unit listed under feeder and feed conveyor chain

1шт.

15

571467R1

SHEAVE, feeder drive, Serial no. 7277 & below, See unit listed under feeder and feed conveyor chain

1шт.

15

568937R21

PULLEY

SHEAVE ASSY, feeder driven, Serial no. 7278 & above, See unit listed under feed and feed conveyor chain

1шт.

16

564568R11

SHEAVE, platform jackshaft drive, 10 ft., 12 ft. and 13 ft., See unit listed under feeder and feed conveyor chain, Not rice special, Serial no. 9428 & below

1шт.

16

150815C11

PULLEY ASSY, platform jackshaft drive, rice special, Serial no. 9429 & above, See unit listed under feeder and feed conveyor chain

1шт.

16

571467R1

SHEAVE, platform jackshaft drive, 14 ft. serial no. 7277 & below, See unit listed under feeder and feed conveyor chain

1шт.

16

568937R21

PULLEY

SHEAVE ASSY, platform jackshaft drive, 14 ft., Serial no. 7278 & above, See unit listed under feeder and feed conveyor chain

1шт.

17

937932R1

BELT

V-BELT, Feeder drive, See unit listed under feeder and feed conveyor chain

1шт.

17

589145R1

V-BELT 1.26" W, Feeder drive, Slow speed, See unit listed under feeder and feed conveyor chain 1.26" W

1шт.

17

156062C1

V-BELT,1.26" W x 114.48" L

Feeder Drive, Window Special, See Unit Listed Under Feeder and Feed Conveyor Chain 1.26" W x 114.48" L

1шт.

18

568941R11

PULLEY

SHEAVE ASSY, feeder drive clutch tightener, See unit listed under feeder separator clutch and throttle control

1шт.

19

628881R91

PULLEY

W/HUB, separator driven, Serial no., Serial Range: 501-4806

1шт.

19

936714R91

PACKAGE

ASSY, cylinder beater and separator driven pulley, Serial no. 4806 & below, See unit listed under separator and propulsion jackshaft drive, Consists of

1шт.

936432R11

SHAFT

ASSY, cylinder beater

1шт.

936474R91

PULLEY ASSY, separator driven

1шт.

117988

KEY

3/8 x 1-1/2 Woodruff

1шт.

629724R11

COLLAR

COLLAR W/SET SCREW ASSY

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 x 3/8 SET SCREW

1шт.

632471R1

1-1/32 X 2 X 22 ga washer

4шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 X 2-1/4 X 1/4 washer

4шт.

19

936474R91

PULLEY ASSY, separator drive, Serial no. 4807 & above, See unit listed under separator and propulsion jackshaft drive

1шт.

20

150493C11

SHEAVE, feeder drive, See unit listed under feeder and feed conveyor chain

1шт.

20

588984R1

PULLEY, feeder drive, slow speed, See unit listed under feeder and feed conveyor chain

1шт.

21

628880R1

BELT,4.00" W x 154.25" L

Separator drive, See unit listed under separator and propulsion jackshaft drive 4.00" W x 154.25" L

1шт.

22

564407R1

PULLEY, separator drive belt tightener, See unit listed under separator drive, pulley and housing and propulsion jackshaft drive

1шт.

23

589762R1

SHEAVE, propulsion jackshaft drive, See unit listed under separator drive pulley and housing, propulsion jackshaft drive

1шт.

24

276162R1

PULLEY, separator drive, See unit listed under separator and propulsion jackshaft drive

1шт.

25

569193R11

PULLEY

SHEAVE ASSY, propulsion jackshaft drive belt tightener, See unit listed under separator drive pulley and housing and propulsion jackshaft drive

1шт.

26

150436C1

BELT

propulsion jackshaft drive, See unit listed under propulsion variable speed and jackshaft drive

1шт.

27

628706R91

SHEAVE W/BUSHING ASSY, propulsion variable speed drive sheave, See unit listed under propulsion variable speed and jackshaft drive

1шт.

27

574984R11

SHEAVE, propulsion drive adjustable half, See unit listed under propulsion variable speed and jackshaft drive

1шт.

28

628883R1

SHEAVE, propulsion jackshaft driven, See unit listed under propulsion variable speed and jackshaft drive

1шт.

29

935949R1

BELT

propulsion drive, See unit listed under propulsion variable speed and jackshaft drive

1шт.

30

569963R1

PULLEY

SHEAVE, propulsion drive belt tightener, See unit listed under propulsion variable speed and jackshaft drive

1шт.
