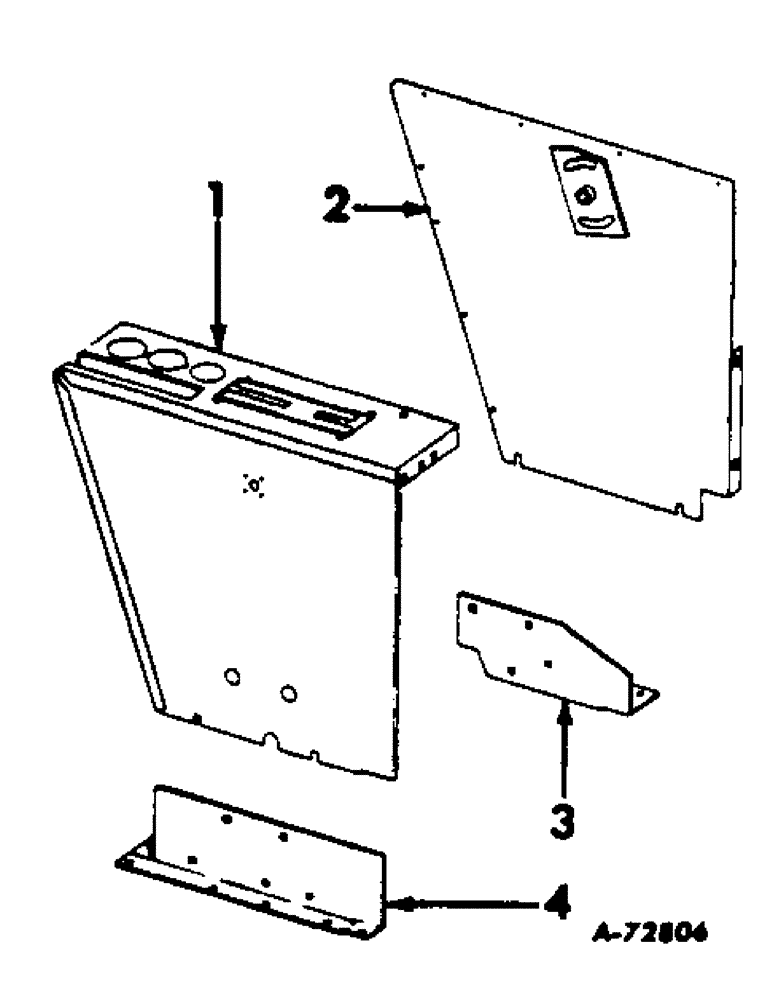

Запчасти Case IH 303 (098) - OPERATORS LEVER SHROUD, SERIAL NO. 7277 AND BELOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

627168R91

SHROUD W/PLATE, control lever

1шт.

5/16 x 1/2 crg bolt w/nut

2шт.

1/4 nut

4шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 sltd-rd-hd mach screw

4шт.

1/4 lockwasher

4шт.

5/16 lockwasher

2шт.

11/32 x 3/4 x 16 ga washer

2шт.

2

627173R91

COVER W/HUB, lever shroud, Not for operators cab

1шт.

2

937647R91

COVER ASSY, operators control housing RH, For operators cab

1шт.

5/16 x 3/4 crg bolt w/nut, Not for operators cab

2шт.

5/16 x 1/2 mach bolt w/nut, Not operators cab

2шт.

558012R1

NUT

No. 10 Tinnerman nut

8шт.

118832

DRIVE BUSHING

No. 10 x 1/2 slt-rd-hd self-tapping screw

8шт.

5/16 lockwasher, Not operators cab

4шт.

3

627167R1

SUPPORT, control lever RH

1шт.

5/16 x 3/4 crg bolt w/nut

5шт.

1/8 x 3/4 cotter pin

1шт.

SB191

HEADED PIN,3/8" x 1 3/4"

3/8 x 1-3/4 dld pin

1шт.

5/16 lockwasher

5шт.

4

627164R91

SUPPORT W/BOLT, control lever

1шт.

1/4 x 3/4 crg bolt w/nut

2шт.

5/16 x 3/4 crg bolt w/nut

1шт.

3/8 x 3/4 crg bolt w/nut

2шт.

3/8 x 3 crg bolt w/nut

3шт.

3/8 x 3/4 mach bolt w/nut

2шт.

1/4 lockwasher

2шт.

5/16 lockwasher

3шт.

3/8 lockwasher

7шт.

11/32 x 3/4 x 16 ga washer

2шт.

615009R1

WASHER

17/64 x 3/4 x 16 ga washer

2шт.
