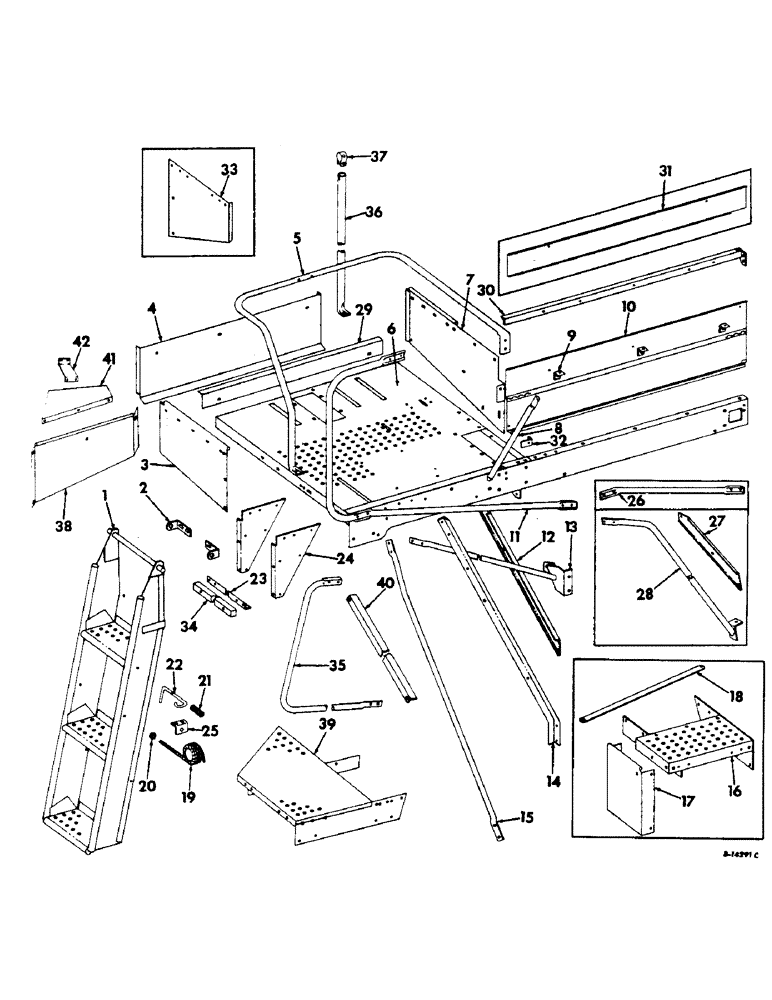

Запчасти Case IH 303 (096) - OPERATORS DECK AND LADDER, SERIAL NO. 7278 AND ABOVE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

627726R92

LADDER ASSY, operators deck, Includes ref. nos. 21, 22, 25

1шт.

2

627730R1

SUPPORT

HANGER, ladder

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 mach bolt w/nut

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga washer

4шт.

3

939204R1

SHROUD, operators platform LH

1шт.

14986R1

5/16 x 1/2 crg bolt w/nut

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

4

939202R11

SHROUD ASSY, operators platform front

1шт.

1/4 C-Z nut

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz locknut

3шт.

443507

CABLE

1/4 x 1/2 C-Z slt pan-hd screw

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z truss-hd whiz lock screw

3шт.

1/4 C-Z lockwasher

2шт.

5

938887R1

RAIL, operators platform front, Not operators cab, Serial no. 9427 & below

1шт.

5

939640R1

RAIL, operators platform front, Not operators cab, Serial no. 9428 & above

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z crg bolt w/nut

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z mach bolt w/nut

2шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z mach bolt w/nut

2шт.

120382R1

3/8 C-Z lockwasher

5шт.

6

936531R91

PLATFORM ASSY, operators

1шт.

5/16 x 3/4 crg bolt w/nut

6шт.

3/8 x 3/4 crg bolt w/nut

1шт.

3/8 x 1 crg bolt w/nut

2шт.

5/16 lockwasher

6шт.

3/8 lockwasher

3шт.

7

939203R1

SHROUD, operators platform RH, Not windrow special

1шт.

7

939244R1

SHROUD, operators platform RH, For windrow special

1шт.

5/16 x 3/4 crg bolt w/nut

5шт.

3/8 x 1 crg bolt w/nut

2шт.

5/16 lockwasher

5шт.

3/8 lockwasher

2шт.

Q5028

WASHER

15/32 x 1 x 11 ga washer

2шт.

8

629430R1

BRACE, operators deck upper

1шт.

9

631818R1

CLIP, operators platform rear support cover

3шт.

5/16 x 1/2 mach bolt

3шт.

5/16 lockwasher

3шт.

10

938888R91

COVER ASSY, operators platform rear support, Not windrow special

1шт.

10

939853R91

COVER ASSY, operators platform rear support, For windrow special

1шт.

11

939243R1

RAIL, operators platform rear, grain tank, Not operators cab, 23.1/18-26 tires, Serial no. 9427 & below, grain tank, Not operators cab, Serial no. 9428 & above

1шт.

11

939662R1

RAIL, operators platform rear, grain tank, Not operators cab, For 23.1/18-26 tires, Serial no. 9427 & below

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 x 3/4 C-Z crg bolt w/nut

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

3/8 x 3/4 C-Z crg bolt w/nut

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z mach bolt w/nut

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

627825R1

SUPPORT, operators deck RH, Not windrow special

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

3/8 x 1 crg bolt w/nut

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

627821R91

BRACE ASSY, operators to separator LH front post, Not for windrow special

1шт.

3/8 x 3/4 mach bolt w/nut

3шт.

7/16 x 1-1/4 mach bolt w/nut

2шт.

3/8 lockwasher

3шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga washer

1шт.

14

631775R1

SUPPORT, operators deck rear

1шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 mach bolt w/nut

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

15

938886R1

SUPPORT, operators platform center

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, , w/nut Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

17427R1

7/16 x 1 mach bolt w/nut

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

16

569628R91

EXTENSION ASSY, operators deck, For 23.1/18-26 main wheel tires, Serial no. 9427 & below

1шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 1", G2

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 mach bolt w/nut

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

17

633742R11

SHROUD ASSY, operators deck extension, For 23.1/18-26 main wheel tires, Serial no. 9427 & below

1шт.

18

939670R1

BRACE, operators platform extension front rail, Not operators cab with 23.1/18-26 main wheel tires, Serial no. 9427 & below

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z mach bolt w/nut

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 C-Z mach bolt w/nut

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

19

ROPE, operator deck ladder lift, Order Sisal rope, 3/8 x 96 in., 3-ply

1шт.

20

552219R1

GROMMET

1шт.

21

140DS

SPRING, Not operators cab

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

22

151452C1

HOOK ASSY, operators deck ladder, Not operators cab

1шт.

23

574488R1

BAR, bumper, Not for operators cab

1шт.

23

156907C1

ANGLE, operator platform ladder bumper, For operators cab

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 mach bolt w/nut

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 nut

1шт.

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

5/16 x 1 slt-fl-hd mach screw

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

24

574489R1

BRACKET, ladder

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

3/8 x 1 crg bolt w/nut

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 mach bolt w/nut

4шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 mach bolt w/nut

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

25

654671R1

BRACKET, operators deck ladder latch, Not operators cab

1шт.

14986R1

5/16 x 1/2 crg bolt w/nut

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga washer

3шт.

26

627826R1

BRACE, operators deck to separator cab, operators cab, Not for 23.1/18-26 tires, Serial no. 9427 & below, operators cab, Serial no. 9428 & above

1шт.

26

654004R1

BRACE, operators deck to separator cab, operators cab, For 23.1/ 18-26 tires, Serial no. 9427 & below

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

3/8 x 3/4 C-Z crg bolt

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z mach bolt w/nut

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

27

634149R1

SUPPORT, operators deck RH, For windrow special

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

3/8 x 1 crg bolt w/nut

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

28

634655R91

BRACE ASSY, operators deck to axle support, windrow special

1шт.

17447R1

BOLT

7/16 x 1-1/4 mach bolt w/nut

2шт.

17448R1

BOLT (SPREADER)

1/2 x 1-1/4 mach bolt w/nut

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

29

939205R1

ANGLE, operators platform front shroud top

1шт.

30

155163C1

ANGLE, operators platform rear support cover

1шт.

5/16 C-Z nut

5шт.

133094

BRACKET

5/16 x 3/4 C-Z slt-rd-hd mach screw

5шт.

5/16 C-Z lockwasher

5шт.

31

NOT USED

1шт.

32

584831R1

ANGLE, operators platform cover strip latch

1шт.

5/16 C-Z hex nut

2шт.

133094

BRACKET

5/16 x 3/4 C-Z slt-rd-hd mach screw

1шт.

33

150197C1

SHEET, deck shroud filler, For machines w/23.1-26 main wheel tires

1шт.

34

152226C1

BOARD, operators platform ladder spacer, Serial no. 9428 & above

1шт.

5/16 x 1-1/2 crg bolt w/nut

2шт.

5/16 lockwasher

2шт.

35

939641R11

RAIL ASSY, operator platform rear, Serial no. 9428 & above

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

36

631421R1

BRACE, operator platform front rail, Serial no. 9428 & above, Not operators cab

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

37

569740R1

CLIP, operator platform front rail brace, Not operators cab, Serial no. 9428 & above

1шт.

18657R1

BOLT,Hex, 1/4"-20 x 1-1/2", G2

1/4 x 1-1/2 C-Z hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

38

631467R11

SHROUD ASSY, operator platform left, Serial no. 9428 & above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

39

628270R91

EXTENSION ASSY, operator platform, Serial no. 9428 & above

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

40

155019C1

ANGLE, operator platform extension support, Serial no. 9428 & above

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

41

161422C91

PLATE ASSY, operators platform extension

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

42

161425C1

BRACKET, operators cab door stop support

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
