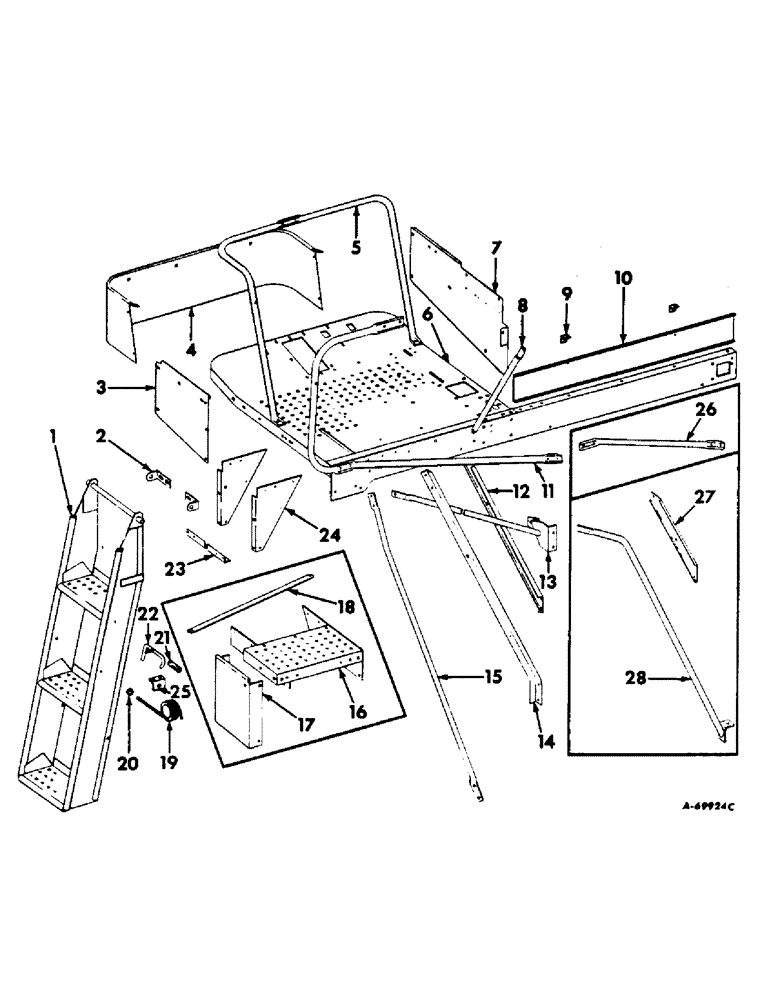

Запчасти Case IH 303 (094) - OPERATORS DECK AND LADDER, SERIAL NO. 7277 AND BELOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

627726R92

LADDER W/GROMMET AND STEP, operators deck, Includes ref. nos. 21, 22 and 25

1шт.

5/16 x 1/2 mach bolt w/nut

2шт.

5/16 lockwasher

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga washer

2шт.

2

627730R1

SUPPORT

HANGER, ladder

2шт.

3/8 x 1 mach bolt w/nut

4шт.

3/8 lockwasher

4шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga washer

4шт.

3

627828R11

SHROUD W/ROD, operators deck LH

1шт.

5/16 x 1/2 crg bolt w/nut

1шт.

5/16 x 3/4 crg bolt w/nut

4шт.

5/16 lockwasher

5шт.

4

627830R11

SHROUD W/ROD, operators deck front

1шт.

5/16 x 1/2 crg bolt w/nut

5шт.

5/16 x 1/2 mach bolt w/nut

2шт.

3/8 x 3/4 crg bolt w/nut

1шт.

5/16 lockwasher

7шт.

3/8 lockwasher

1шт.

5

627198R1

RAIL, deck front, Not operators cab

1шт.

3/8 x 1 crg bolt w/nut

2шт.

3/8 x 1 cd-pltd mach bolt w/nut

2шт.

3/8 lockwasher

2шт.

3/8 cd-pltd lockwasher

2шт.

6

633684R91

DECK W/FRAME AND SUPPORT, operators, manual steering, Serial no. 501 to Power steering, Serial no. 1860 & below and 2751 & above

1шт.

6

653985R91

DECK W/FRAME AND SUPPORT, operators, power steering, Serial no., Serial Range: 1861-2750

1шт.

5/16 x 3/4 crg bolt w/nut

1шт.

3/8 x 1/2 crg bolt w/nut

1шт.

3/8 x 3/4 crg bolt w/nut

1шт.

3/8 x 1 crg bolt w/nut

1шт.

5/16 lockwasher

1шт.

3/8 lockwasher

1шт.

7

627829R11

SHROUD W/ROD, operators deck RH, Not windrow special

1шт.

7

634150R11

SHROUD W/ROD, operators deck RH, windrow special

1шт.

5/16 x 3/4 crg bolt w/nut

3шт.

3/8 x 1 crg bolt w/nut

2шт.

5/16 x 1/2 mach bolt w/nut

1шт.

5/16 lockwasher

4шт.

3/8 lockwasher

2шт.

8

629430R1

BRACE, operators deck upper

1шт.

9

631818R1

CLIP, operators deck rear support cover

2шт.

10

631173R1

COVER, operators deck rear support

1шт.

5/16 x 1/2 mach bolt w/nut

2шт.

5/16 lockwasher

2шт.

11

627197R1

HAND RAIL, operators deck rear, grain tank, Not operators cab For 23.1/18-26 tires

1шт.

11

632920R1

HAND RAIL, operators deck rear, grain tank, Not operators cab, For 23.1/18-26 tires

1шт.

5/16 x 3/4 crg bolt w/nut

2шт.

3/8 x 3/4 crg bolt w/nut

2шт.

3/8 x 1 mach bolt w/nut

2шт.

5/16 lockwasher

2шт.

3/8 lockwasher

4шт.

12

627825R1

SUPPORT, operators deck RH, Not windrow special

1шт.

3/8 crg bolt w/nut

2шт.

3/8 lockwasher

2шт.

13

627821R91

BRACE W/ANCHOR, operators deck to separator LH front post, Not windrow special

1шт.

3/8 x 1 mach bolt w/nut

3шт.

7/16 x 1-1/4 mach bolt w/nut

3шт.

3/8 lockwasher

3шт.

7/16 lockwasher

4шт.

13/32 x 3/4 x 16 ga washer

1шт.

14

631775R1

SUPPORT, operators deck rear

1шт.

1/2 x 1 mach bolt w/nut

2шт.

1/2 lockwasher

2шт.

15

631777R1

SUPPORT, operators deck center

1шт.

1/2 x 1-1/4 crg bolt w/nut

2шт.

7/16 x 1 mach bolt w/nut

2шт.

7/16 lockwasher

2шт.

1/2 lockwasher

2шт.

16

569628R91

EXTENSION W/SUPPORT, operators deck, For 23.1/18-26 main wheel tires

1шт.

5/16 x 1 crg bolt w/nut

2шт.

3/8 x 3/4 mach bolt w/nut

7шт.

5/16 lockwasher

2шт.

3/8 lockwasher

7шт.

17

633742R1

SHROUD, operators deck extension, For 23.1/18-26 tires

1шт.

18

571172R1

BRACE, operators deck front hand rail, For 23.1/18-26 tires, Not operators cab

1шт.

3/8 x 1 mach bolt w/nut

1шт.

3/8 x 1-1/4 mach bolt w/nut

1шт.

3/8 lockwasher

3шт.

19

ROPE, lift, 3/8 dia x 8 ft. long, Procure locally

1шт.

20

552219R91

GROMMET

1шт.

21

140DS

SPRING, latch, grain tank, Not operators cab

1шт.

22

574497R1

LATCH, ladder, grain tank, Not operators cab, Serial no., Serial Range: 501-2750

1шт.

22

654670R1

LATCH, ladder, grain tank, Not operators cab, Serial no., Serial Range: 501-2750

1шт.

1/8 x 1 cotter pin

1шт.

13/32 x 3/4 x 16 ga washer

2шт.

22

936271R91

HOOK W/PIN ASSY, operators deck ladder, grain tank, Not operators cab, Serial no. 4807 & above

1шт.

13/32 x 3/4 x 16 ga washer

2шт.

23

574488R1

BAR, bumper

1шт.

5/16 x 3/4 mach bolt w/nut

2шт.

5/16 nut

1шт.

113914

SCREW

5/16 x 1 slt-fl-hd mach screw

1шт.

5/16 lockwasher

3шт.

24

574489R1

BRACKET, ladder

2шт.

3/8 x 1 crg bolt w/nut

1шт.

3/8 x 3/4 mach bolt w/nut

4шт.

3/8 x 1 mach bolt w/nut

2шт.

3/8 lockwasher

7шт.

25

654671R1

BRACKET, operators deck ladder latch, grain tank, Not operators cab, Serial no. 2751 & above

1шт.

5/16 x 1/2 crg bolt w/nut

2шт.

5/16 lockwasher

2шт.

26

627826R1

BRACE, operators deck to separator cab, operators cab, Not for 23.1/18-26 tires

1шт.

26

654004R1

BRACE, operators deck to separator cab, operators cab, For 23.1/18-26 tires

1шт.

3/8 x 1 mach bolt w/nut

4шт.

3/8 lockwasher

4шт.

27

634149R1

SUPPORT, operators deck RH, windrow special

1шт.

3/8 x 1 crg bolt w/nut

2шт.

3/8 lockwasher

2шт.

28

634655R91

BRACE W/ANCHOR, operators deck to axle support, windrow special

1шт.

7/16 x 1-1/4 mach bolt w/nut

2шт.

1/2 x 1-1/4 mach bolt w/nut

1шт.

7/16 lockwasher

2шт.

1/2 lockwasher

1шт.
