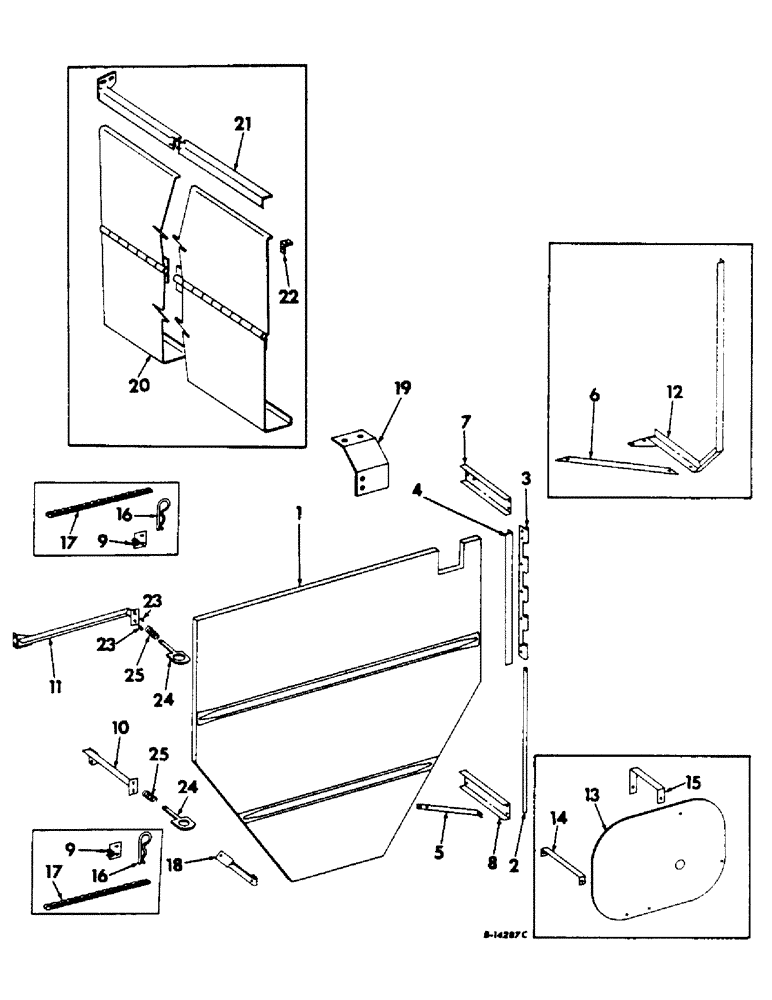

Запчасти Case IH 303 (056) - SEPARATOR SHIELDS, LH, SERIAL NO. 7278 AND ABOVE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

154255C91

SHIELD ASY, separator LH, Not bagger, Serial no. 11763 & below

1шт.

1

155020C91

SHIELD ASSY, separator LH, Not bagger, Serial no. 11764 & above

1шт.

2

938791R1

ROD, separator LH hinge, Not bagger

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

3

938793R1

HINGE, separator LH shield, Not bagger

1шт.

4

938794R1

ANGLE, separator LH shield hinge, gasoline or diesel w/grain hopper

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

5

938795R1

STRAP, separator LH shield support, Not bagger

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

939858R1

STRAP, separator LH shield support, LP gas, hydrostatic ground drive

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

938796R1

SUPPORT, separator LH shield upper, Not bagger

1шт.

7

939890R1

SUPPORT, separator LH shield upper, LP gas, hydrostatic ground drive

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

8

938797R1

SUPPORT, separator LH shield lower, Not bagger

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

938800R91

LATCH ASSY, separator shield, Serial no. 11763 & below

3шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

10

938811R91

ANGLE ASSY, separator LH shield, gasoline or diesel w/grain hopper, Serial no. 11763 & below

1шт.

10

939892R91

ANGLE ASSY, separator LH shield, LP gas, Serial no. 11763 & below

1шт.

10

155168C91

ANGLE ASSY, separator shield LH, Not bagger, Serial no. 11764 & above

1шт.

10

155170C91

ANGLE ASSY, separator shield LH, LP gas, hydrostatic ground drive, drive, Serial no. 11764 & above

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

11

938807R91

ANGLE ASSY, separator LH shield front, gasoline or diesel w/grain hopper, Serial no. 11763 & below

1шт.

11

939894R91

ANGLE ASSY, separator LH shield front, LP gas, Serial no. 11763 & below

1шт.

11

155174C91

ANGLE ASSY, separator LH shield front, Not bagger, Serial no. 11764 & above

1шт.

11

155176C91

ANGLE ASSY, separator shield front LH, LP gas, hydrostatic ground drive, Serial no. 11764 & above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z crg

2шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 C-Z hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

12

939997R91

SUPPORT ASSY, separator LH shield hinge, LP gas

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

13

628413R11

SHIELD ASSY, propulsion drive, gasoline or diesel w/bagger

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

14

628416R1

SUPPORT, propulsion drive shield lower, gasoline or diesel w/ bagger

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

628415R1

SUPPORT, propulsion drive shield upper, gasoline or diesel w/ bagger

1шт.

16

153528C1

COTTER PIN

shield retainer quick attachable, Serial no. 11763 & below

1шт.

17

CHAIN ASSY, shield retainer pin, no. 45 sash, 14 links, Serial no. 11763 & below

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

18

150557C1

BRACE, separator LH shield, gasoline or diesel w/grain hopper

1шт.

18

151441C1

BRACE, separator LH shield, LP gas

1шт.

18658R1

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 2

1/4 x 1-3/4 C-Z hex-hd

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

129-409

WING NUT,1/4"-20

NUT, 1/4 C-Z wing

1шт.

19

NOT USED

1шт.

20

NOT USED

1шт.

21

NOT USED

1шт.

22

NOT USED

1шт.

23

61851V

SPACER,1/4" Pipe x 3/4"

Separator LH shield up latch, Not bagger 1/4" Pipe x 3/4"

1шт.

24

454502R1

LATCH

separator shield, Not bagger, Serial no. 11764 & above

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

615034R1

WASHER, 3/8 x 1 x 16 ga

2шт.

25

M296

SPRING

separator shield latch, Serial no. 11764 & above

2шт.
