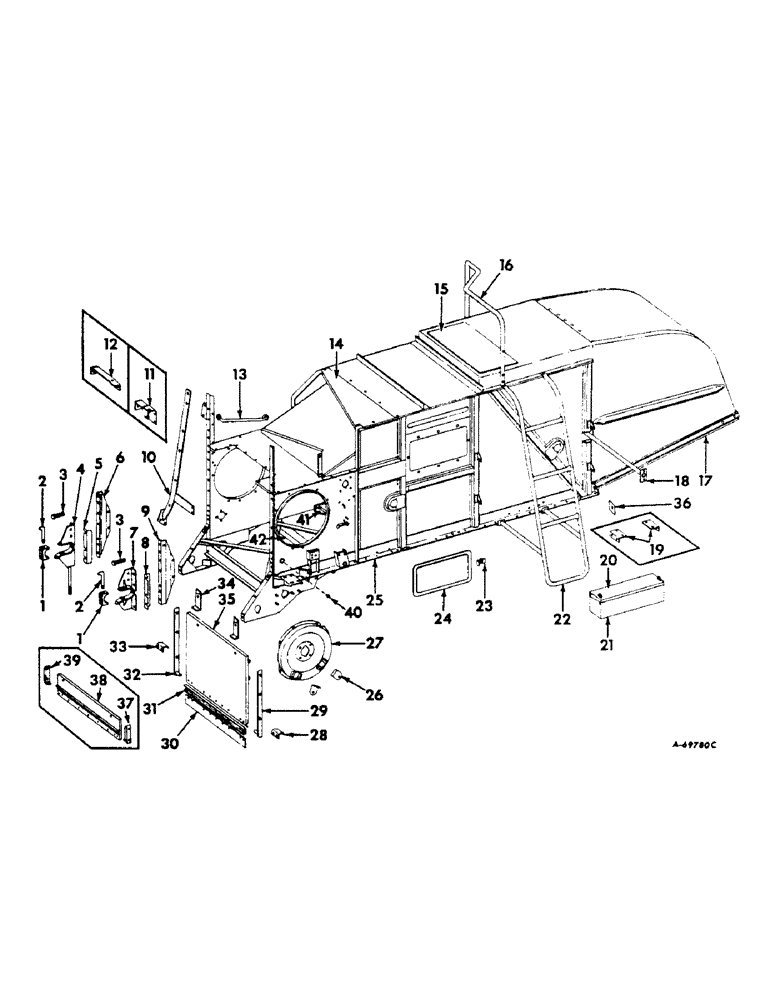

Запчасти Case IH 303 (053) - SEPARATOR, HOOD AND SERVICE LADDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

628332R1

BLOCK

RETAINER, feeder pivot shaft

2шт.

2

628846R1

PIN, feeder pivot bracket

2шт.

520175R1

CLIP

QUICK ATTACHABLE COLTER

2шт.

3

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

feeder pivot bracket

8шт.

1/2 nut

6шт.

1/2 jam nut

2шт.

1/2 lockwasher

8шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga washer

4шт.

4

628331R91

BRACKET W/BOLT, feeder pivot RH, Not for use with windrow special

1шт.

4

634200R91

BRACKET W/BOLT, feeder pivot RH, For use with windrow special

1шт.

5/8 nut

2шт.

575810R1

WASHER

21/32 x 1-1/2 x 11 ga washer

2шт.

5

565536R1

SUPPORT

SEAL, feeder pivot plate RH

1шт.

6

NOT USED

1шт.

7

628323R91

BRACKET W/GUSSET, feeder pivot LH

1шт.

8

565535R1

SUPPORT

SEAL, feeder pivot plate LH

1шт.

9

NOT USED

1шт.

10

633700R91

BRACE W/PAD, Serial Range: separator-axle

1шт.

1/4 x 1-3/4 mach bolt

1шт.

1/2 x 1-1/4 crg bolt w/nut

3шт.

1/2 x 1 mach bolt w/nut

2шт.

1/2 x 1-1/4 mach bolt w/nut

2шт.

5/8 x 1-1/4 cap screw

2шт.

1/2 lockwasher

2шт.

5/8 lockwasher

2шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

11

NOT USED

1шт.

12

634336R91

GUSSET W/PLATE, separator to axle brace, For machines w/grain hopper

1шт.

7/16 x 1 crg bolt w/nut

1шт.

1/2 x 1-1/4 crg bolt w/nut

1шт.

7/16 x 1 no. 3 plow bolt

1шт.

7/16 lockwasher

2шт.

1/2 lockwasher

1шт.

13

633639R1

BRACE, separator to axle gusset, For machines w/grain hopper

1шт.

7/16 nut

1шт.

7/16 x 1-1/4 cap screw

1шт.

7/16 lockwasher

1шт.

14

629793R1

EXTENSION, separator top

1шт.

5/16 x 3/4 crg bolt w/nut

2шт.

118832

DRIVE BUSHING

No. 10 x 1/2 slt-rd-hd self-tapping screw

5шт.

5/16 lockwasher

2шт.

15

564345R91

DOOR W/STIFFENER, separator top

1шт.

16

628596R1

HAND RAIL, service ladder, For machines w/grain hopper

1шт.

5/16 x 1-1/2 mach bolt w/nut

4шт.

5/16 lockwasher

4шт.

17

627260R91

HOOD ASSY, separator, Serial no. 7277 & below

1шт.

17

938034R91

HOOD ASSY, separator, Serial no. 7278 & above, Not for straw chopper

1шт.

5/16 x 3/4 cap screw

1шт.

5/16 x 1 cap screw

1шт.

3/8 x 1/2 mach bolt w/nut

1шт.

5/16 nut

1шт.

5/16 lockwasher

1шт.

3/8 lockwasher

1шт.

Q397

WASHER

11/32 x 3/4 x 16 ga washer

1шт.

18

631200R91

TIE W/PAD, separator rear cross

1шт.

19

629776R1

BRACKET, tool box, For machines equipped with LP gas engines

2шт.

1/4 x 3/4 crg bolt w/nut

4шт.

3/8 x 3/4 crg bolt w/nut

4шт.

1/4 lockwasher

4шт.

3/8 lockwasher

4шт.

20

629769R1

TOP, tool box

1шт.

1/8 x 3/4 cotter pin

2шт.

557109R1

WASHER

17/64 x 1/2 x 16 ga washer

4шт.

1/4 x 1/2 hd pin

2шт.

21

629767R91

BOX W/TOP, tool

1шт.

1/4 x 1-1/4 mach bolt w/nut

3шт.

1/4 x 1-3/4 mach bolt

1шт.

1/4 cd-pltd wing nut

1шт.

1/4 lockwasher

4шт.

136661H

WASHER

17/64 x 1 x 16 ga washer

4шт.

22

628588R91

LADDER W/SIDE SERVICE, For machines w/grain hopper

1шт.

3/8 x 1-1/4 mach bolt w/nut

2шт.

3/8 lockwasher

2шт.

23

565449R1

CLIP

straw rack inspection door

16шт.

5/16 x 1 crg bolt w/nut

16шт.

935736R1

NUT, WING

5/16 wing nut

16шт.

5/16 lockwasher

16шт.

24

568807R1

DOOR, straw rack inspection

2шт.

25

633604R91

CAB ASSY, separator, gasoline and windrow special, Serial no. 7277 & below

1шт.

25

938750R91

CAB ASSY, separator, gasoline and windrow special, Serial no. 7278 & above

1шт.

25

633633R91

CAB ASSY, separator, LP gas, Serial no. 7277 & below

1шт.

25

939297R91

CAB ASSY, separator, LP gas, Serial no. 7278 & above

1шт.

25

938778R91

CAB ASSY, separator, rice, Serial no. 7278 & above

1шт.

25

155738C91

BODY ASSY, separator, rice, w/LP gas engine

1шт.

25

153270C91

BODY ASSY, separator, grain and windrow special, hydrostatic ground drive

1шт.

25

153271C91

BODY ASSY, separator, grain, w/LP gas engine, hydrostatic ground drive

1шт.

25

153272C91

BODY ASSY, separator, rice, hydrostatic ground drive

1шт.

25

155030C91

BODY ASSY, separator, rice, w/straw chopper, hydrostatic ground drive

1шт.

5/16 x 1 crg bolt w/nut

1шт.

3/8 x 3/4 crg bolt w/nut

1шт.

7/16 x 1 crg bolt w/nut

1шт.

1/2 x 1-1/2 crg bolt w/nut

1шт.

1/2 x 1-1/2 crg bolt w/nut

1шт.

3/8 x 1/2 mach bolt w/nut

1шт.

3/8 x 1-1/4 mach bolt w/nut

1шт.

3/8 x 1-3/4 mach bolt w/nut

1шт.

3/8 x 4-3/4 mach bolt w/nut

1шт.

1/2 x 1 mach bolt w/nut

1шт.

1/2 x 1-1/2 mach bolt w/nut

1шт.

1/2 x 2-3/4 mach bolt w/nut

1шт.

5/8 x 1-1/2 mach bolt w/nut

1шт.

3/4 x 1-3/4 mach bolt w/nut

1шт.

1/4 nut

1шт.

5/16 nut

1шт.

3/8 nut

1шт.

7/16 nut

1шт.

1/2 nut

1шт.

5/8 nut

1шт.

935763R1

5/16 wing nut

1шт.

9413944

NUT

5/8 Stover locknut

1шт.

3/16 x 1 cotter pin

1шт.

1/8 x 3/4 cotter pin

1шт.

5/16 x 3 dld pin

1шт.

1/2 x 2 dld pin

1шт.

1/4 x 3/4 cap screw

1шт.

1/4 x 3/8 cap screw

1шт.

1/4 x 1-1/2 cap screw

1шт.

1/4 x 3-1/4 cap screw

1шт.

1/4 x 3/8 sltd-rd-hd mach screw

1шт.

7/16 x 5 cap screw

1шт.

1/2 x 1-1/4 cap screw

1шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-1/2 cap screw

1шт.

1/2 x 1-3/4 cap screw

1шт.

1/2 x 2 cap screw

1шт.

5/8 x 1-1/2 cap screw

1шт.

161068R1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

5/8 x 1-3/4 cap screw

1шт.

5/8 x 2 cap screw

1шт.

5/16 x 1 hex-hd self-tapping screw

1шт.

1/4 lockwasher

1шт.

5/16 lockwasher

1шт.

7/16 lockwasher

1шт.

3/8 lockwasher

1шт.

1/2 lockwasher

1шт.

5/8 lockwasher

1шт.

115554

LOCK WASHER,Int Tooth, 3/4"

3/4 internal tooth lockwasher

1шт.

11/32 x 3/4 x 16 ga washer

1шт.

13/32 x 3/4 x 16 ga washer

1шт.

17/32 x 1 x 11 ga washer

1шт.

38971H

17/32 x 1-3/4 x 11 ga washer

1шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga washer

1шт.

575810R1

WASHER

21/32 x 1-1/2 x 11 ga washer

1шт.

26

633518R1

DOOR

concave inspection

4шт.

27

633513R91

DOOR W/GUIDE, cylinder LH

1шт.

27

633514R91

DOOR W/GUIDE, cylinder RH

1шт.

3/8 x 1/2 crg bolt w/nut

2шт.

7/16 x 1 crg bolt w/nut

1шт.

7/16 x 1-3/4 crg bolt w/nut

1шт.

1/2 nut

4шт.

3/8 lockwasher

2шт.

7/16 lockwasher

2шт.

1/2 lockwasher

2шт.

28

569623R1

CLAMP

CLIP, cylinder door support LH

1шт.

1/4 x 1 slt-rd-hd mach screw

2шт.

1/4 nut

2шт.

1/4 lockwasher

2шт.

557109R1

WASHER

17/64 x 1/2 x 16 ga washer

2шт.

29

627705R91

RETAINER W/STUD, cylinder front door LH, Not for use with windrow special

1шт.

5/16 x 1 mach bolt

3шт.

5/16 lockwasher

3шт.

30

564083R1

SEAL, cylinder door, Not windrow special

1шт.

31

569363R1

STRIP, cylinder door seal, Not windrow special

1шт.

32

627706R91

SUPPORT

RETAINER W/STUD, cylinder fornt door RH, Not for use with windrow special

1шт.

5/16 x 1 mach bolt

3шт.

5/16 lockwasher

3шт.

33

569624R1

CLAMP

CLIP, cylinder door support RH

1шт.

1/4 nut

2шт.

1/4 x 1 slt-rd-hd mach screw

2шт.

1/4 lockwasher

2шт.

557109R1

WASHER

17/64 x 1/2 x 16 ga washer

2шт.

34

569362R1

HANDLE, cylinder door

2шт.

35

628137R91

DOOR W/STIFFENER, cylinder front, Not for use with windrow special

1шт.

1/4 x 1 slt-rd-hd mach screw

7шт.

1/4 lockwasher

7шт.

36

654045R1

SHIM, separator hood tie bracket

4шт.

37

634553R91

RETAINER W/STUD, cylinder front door LH, For use with windrow special

1шт.

5/16 x 3/4 mach bolt

2шт.

5/16 lockwasher

2шт.

38

634551R91

DOOR W/STIFFENER, cylinder front, For use with windrow special

1шт.

39

634554R91

RETAINER W/STUD, cylinder front door RH, For use with windrow special

1шт.

5/16 x 3/4 mach bolt

2шт.

5/16 lockwasher

2шт.

40

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication

1шт.

41

628231R91

TIE ASSY, separator cross tie, Not rice special

1шт.

1/2 x 1-1/4 sq-nk crg bolt w/nut

5шт.

1/2 lockwasher

5шт.

42

628130R1

SUPPORT FAN HOUSING FRONT, Not rice special

1шт.

1/2 x 1-1/4 sq-nk crg bolt w/nut

2шт.

1/2 lockwasher

2шт.
