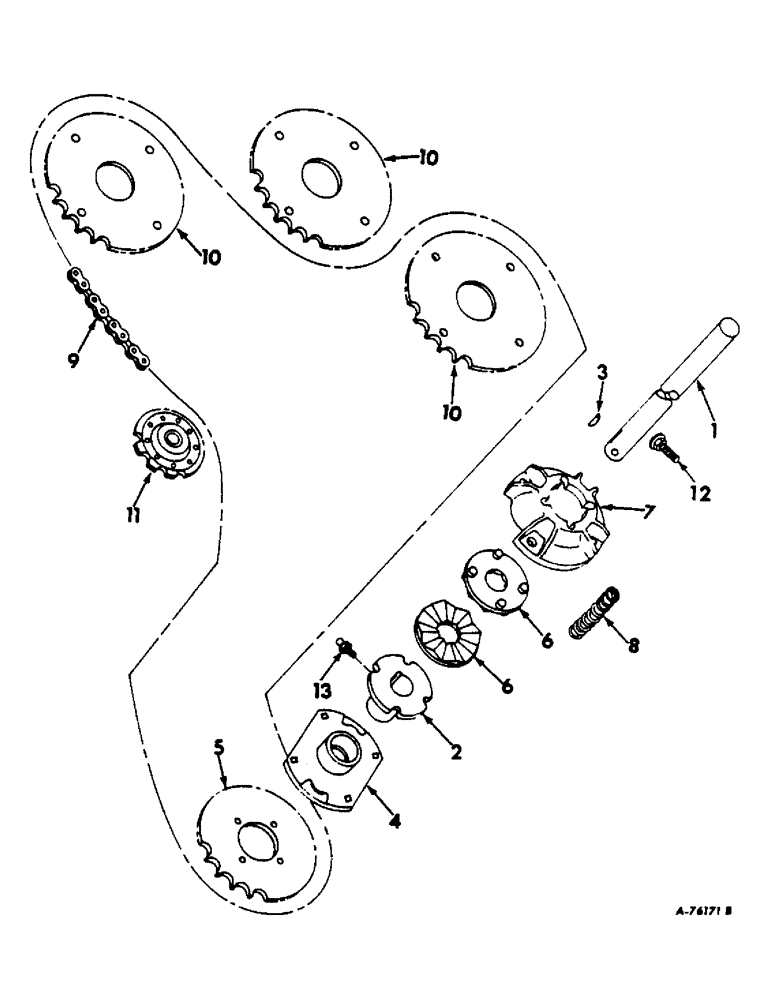

Запчасти Case IH 303 (313) - ELEV CHAIN DRIVE ATTACHMENT FOR MACHINES W/ GRAIN HOPPER EXTENTION ATT SERIAL NO. 7278 AND ABOVE (88) - ACCESSORIES

1

155812C1

SHAFT

elevator drive

1шт.

2

583785R1

HOLDER

elevator drive slip clutch

1шт.

17069R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

3

117977

WOODRUFF KEY

KEY, 5/16 x 1 Woodruff

1шт.

4

155813C1

HUB

elevator drive slip clutch

1шт.

5

155814C1

SPROCKET ASSY.

SPROCKET, elevator drive, 38T

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8 x 7/8 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

B12170

RATCHET,Clutch Slip, 94.49mm

elevator drive slip clutch

2шт.

7

632152R2

RETAINER

elevator drive slip clutch

1шт.

8

28395H

SPRING

elevator drive slip clutch

4шт.

12685R1

BOLT,Sq Nk, 3/8" x 3 1/4"

3/8 x 3-1/4 sq-nk crg dld

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

NUT, 3/8 C-Z slt hex

4шт.

Q1505

WASHER

13/32 x 1 x 16 ga

4шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

8шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

9

CHAIN ASSY, elevator drive, Order 127 links of 1-1/4 in. extended pitch roller chain from a 10 ft. roll marked 569089R1 and (1) connecting link, 587372R91 and (1) offset link, 456929R91

1шт.

10

155811C1

SPROCKET ASSY.

SPROCKET, elevator driven and grain hopper leveling auger driven, 50T

3шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16 x 7/8 C-Z hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

11

582415R91

DRIVE SPROCKET,9T

SPROCKET ASSY, elevator drive chain idler, 9T

1шт.

12

570028R91

BOLT

BOLT ASSY, elevator slip clutch alarm switch, For operators cab

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/2-27 NPT straight lub

1шт.
