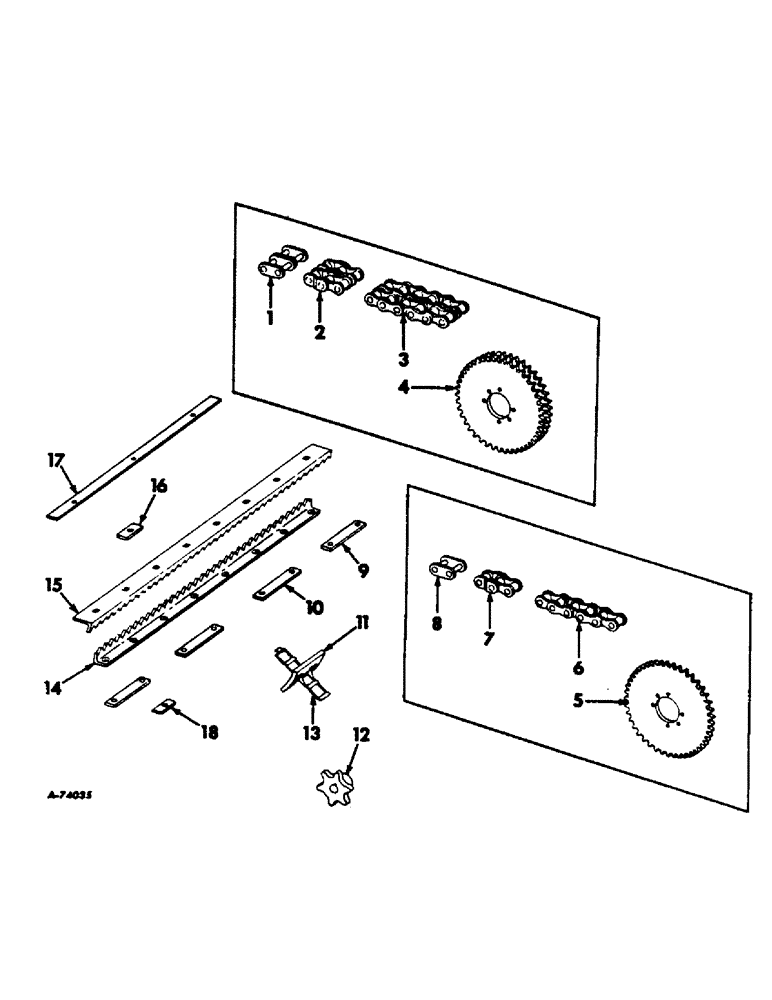

Запчасти Case IH 303 (302) - GROUND EAR CORN FEED, SERIAL NO. 501 TO 2750 (88) - ACCESSORIES

1

NOT USED

1шт.

2

NOT USED

1шт.

3

NOT USED

1шт.

4

NOT USED

1шт.

5

565377R2

SPROCKET, cylinder drive, 48T

1шт.

6

EXTENSION, cylinder drive chain, Use 6 links of 3/4 pitch standard roller chain from a 10 ft. roll marked 1793D, (1) two- pitch combination offset link, 570036R91 and (3) 1786D connecting links

1шт.

7

570036R91

LINK ASSY, two-pitch combination offset

1шт.

8

1786D

LINK

ASSY, connecting

1шт.

9

654706R1

CLIP, sawtooth bar

6шт.

10

NOT USED

1шт.

11

654705R91

FLIGHT ASSY, tailings elevator, Consists of

1шт.

62

LINK ASSY.

LINK, plain

1шт.

62SD1

LINK ASSY.

LINK, attachment flight

1шт.

12

629193R1

SPROCKET ASSY.

SPROCKET, tailings elevator

2шт.

1/8 x 3/4 cotter pin

1шт.

1/4 x 1-3/4 dld pin

1шт.

13

654703R91

CHAIN W/FLIGHTS ASSY, tailings elevator

1шт.

14

654715R1

BAR, sawtooth concave

2шт.

3/8 x 1-1/4 no. 3 plowbolt w/nut

12шт.

3/8 lockwasher

1шт.

15

654712R1

BAR, sawtooth cylinder

8шт.

7/16 x 1 crg bolt w/nut

1шт.

7/16 lockwasher

1шт.

16

935157R1

SPACER, cylinder filler bar

48шт.

560170R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

7/16 x 1-1/4 cap screw

24шт.

7/16 nut

1шт.

7/16 lockwasher

1шт.

17

654922R1

BAR, concave filler

3шт.

3/8 x 1 crg bolt w/nut

9шт.

3/8 lockwasher

1шт.

3587H

13/32 x 9/16 x 16 ga washer

1шт.

18

585209R1

STRAP

9шт.
