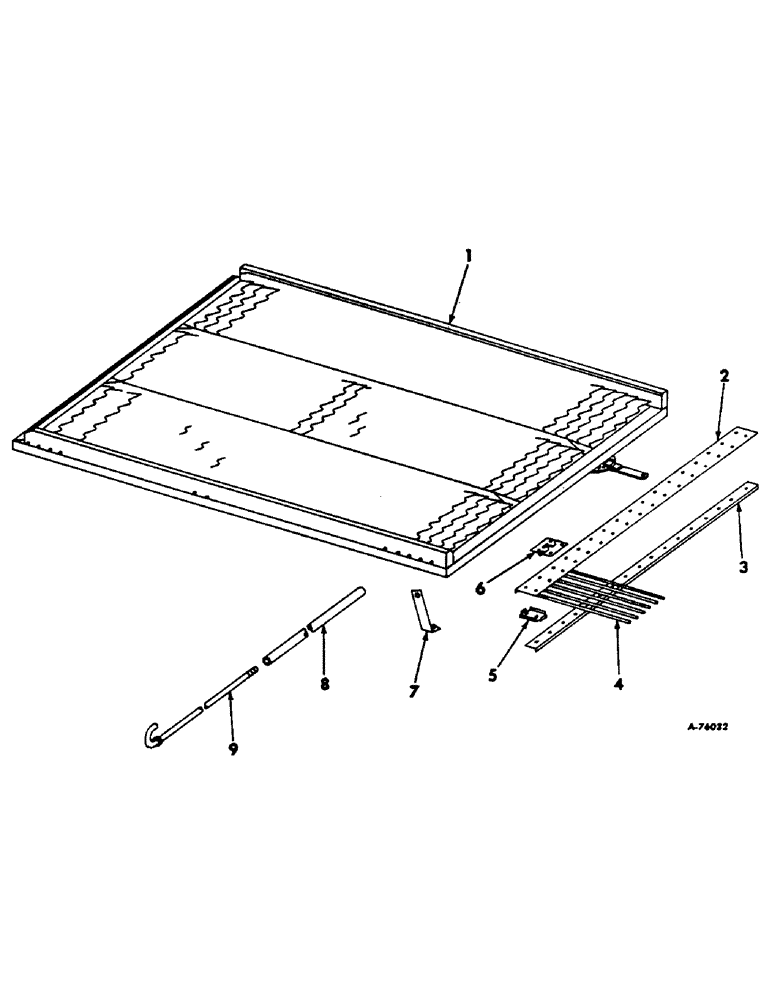

Запчасти Case IH 303 (301) - GROUND EAR CORN FEED CHAFFER SIEVE AND EXTENSION, SERIAL NO. 2751 AND ABOVE (88) - ACCESSORIES

1

936256R91

SIEVE ASSY, corn slat, 1-5/8, Serial no. 9427 & below

1шт.

1

155605C91

SIEVE ASSY, chaffer, 3/4 perforated, Serial no. 9428 & above

1шт.

2

936381R1

REINFORCEMENT, finger support upper

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd mach

4шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

30шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

34шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

34шт.

3

936384R1

REINFORCEMENT, finger support lower

1шт.

4

936387R1

FINGER, chaffer extension

17шт.

5

632690R1

CLAMP, finger

17шт.

6

936390R91

HINGE, chaffer extension

2шт.

1/4 C-Z nut

1шт.

453059

1/4 x 1 C-Z slt-pan-hd mach screw

2шт.

1/4 C-Z lockwasher

1шт.

615009R1

WASHER

17/64 x 3/4 x 16 ga washer

1шт.

7

936388R1

BRACKET, chaffer extension hanger LH

1шт.

7

936389R1

BRACKET, chaffer extension hanger RH

1шт.

8

936392R1

PIPE, hanger bracket spacer

2шт.

9

936393R1

BOLT, shoe sieve adjusting

2шт.

5/16 nut

2шт.

5/16 lockwasher

2шт.

11/32 x 3/4 x 16 ga washer

4шт.
