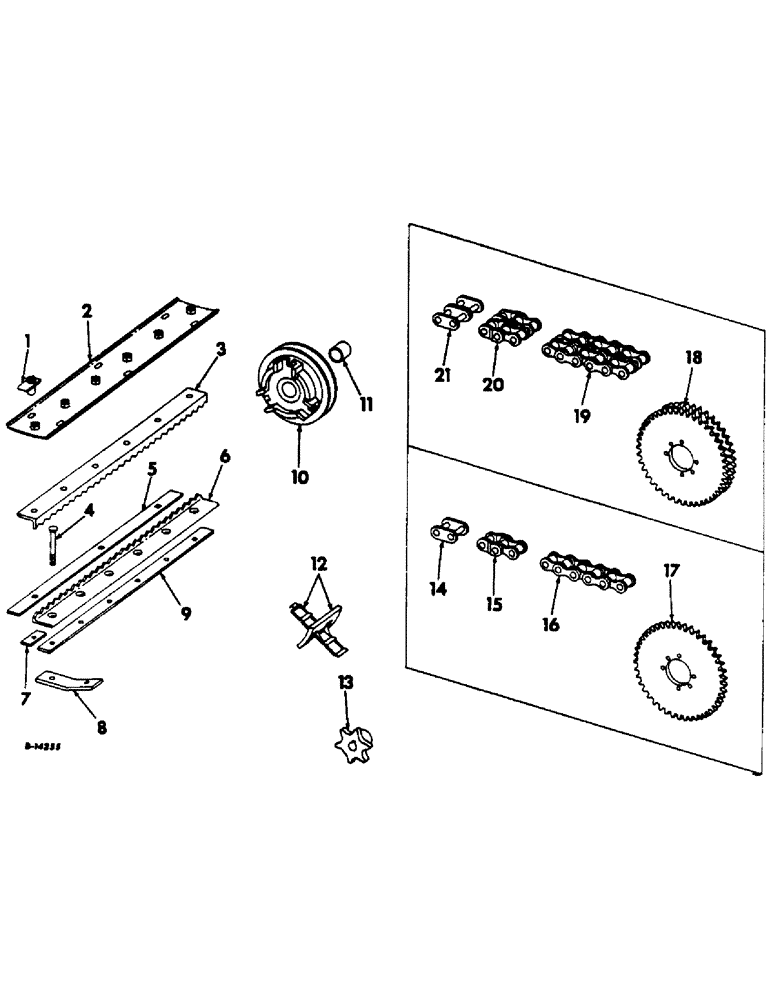

Запчасти Case IH 303 (300) - GROUND EAR CORN FEED, SERIAL NO. 2751 TO 9427 (88) - ACCESSORIES

1

936379R91

ANCHOR W/SPACER, cylinder filler bar

48шт.

2

936376R21

BAR W/NUT, cylinder filler

8шт.

1/2-20NF x 2-1/4 hex-hd cap screw

1шт.

1/2 lockwasher

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga washer

1шт.

3

936373R1

ANGLE, sawtooth cylinder

8шт.

871570R1

BOLT

7/16 x 1 hex-hd cap screw w/nylon pellet insert

48шт.

7/16 lockwasher

1шт.

4

936018R1

BOLT, sawtooth concave angle

12шт.

18526R1

LOCK NUT,7/16"-14, GB

7/16 ESNA stop nut

1шт.

5

654922R1

STRAP, concave filler

3шт.

3/8 x 1 crg bolt w/nut

9шт.

3/8 lockwasher

1шт.

3587H

13/32 x 9/16 x 16 ga washer

1шт.

6

936366R1

ANGLE, sawtooth

2шт.

7

585209R1

WASHER, concave filler strap

9шт.

8

936372R1

BRACE, sawtooth concave angle

6шт.

9

936369R1

STRAP, sawtooth concave angle tie

2шт.

10

936394R1

PULLEY, elevator drive slip clutch

1шт.

11

627736R1

BUSHING

elevator drive slip clutch pulley

1шт.

12

936301R91

CHAIN W/FLIGHTS, tailings elevator, Consists of

1шт.

936303R91

FLIGHT W/ATTACHING LINK

1шт.

62

LINK ASSY.

LINK, plain, steel

1шт.

62SD1

LINK ASSY.

LINK, attaching, steel

1шт.

13

629193R1

SPROCKET ASSY.

SPROCKET, tailings elevator, 6T

1шт.

1/8 x 3/4 cotter

1шт.

1/4 x 1-3/4 dld pin

1шт.

14

1786D

LINK

3/4 standard and connecting

1шт.

15

570036R91

LINK, 3/4 standard two-pitch combination offset

1шт.

16

CHAIN, cylinder drive extension, Use 6 links of 3/4 standard pitch roller chain from a 10 ft. roll marked 1793D, (1) two-pitch combination offset link, 570036R91, and (3) connecting links, 1786D

1шт.

17

565377R2

SPROCKET, cylinder drive, 48T

1шт.

18

NOT USED

1шт.

19

NOT USED

1шт.

20

NOT USED

1шт.

21

NOT USED

1шт.
