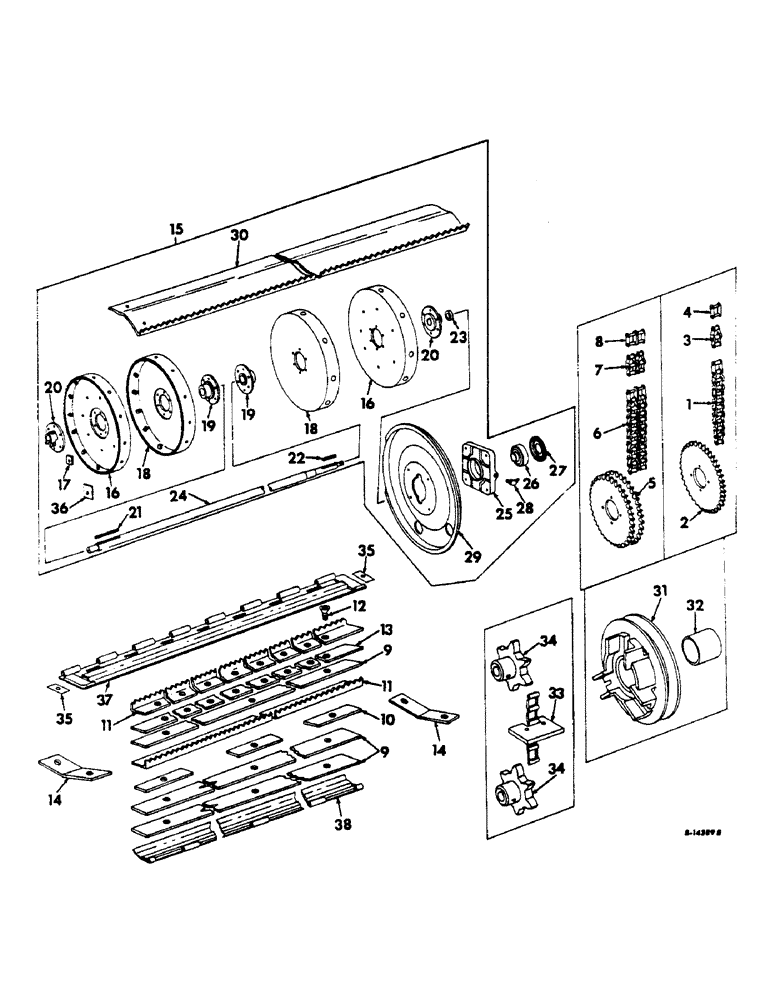

Запчасти Case IH 303 (298) - GROUND EAR CORN FEED, SERIAL NO. 9428 AND ABOVE (88) - ACCESSORIES

1

EXTENSION, cylinder drive chain, Use 11 links of 3/4 standard pitch roller chain from a 10 ft. roll marked 1793D, (1) two-pitch combination offset link, 570036R91 and (3) spring clip connecting links, 1786D

1шт.

2

565377R2

SPROCKET, cylinder drive, 48T

1шт.

3

570036R91

LINK, 3/4 standard two-pitch combination offset

1шт.

4

1786D

LINK

3/4 standard connecting

1шт.

5

NOT USED

1шт.

6

NOT USED

1шт.

7

NOT USED

1шт.

8

NOT USED

1шт.

9

155125C2

STRAP, concave filler

3шт.

17351

3/8 x 1 C-Z crg bolt w/nut

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

3587H

13/32 x 9/16 x 16 ga washer

27шт.

10

585209R1

WASHER, concave filler

9шт.

11

936366R1

ANGLE, sawtooth concave

2шт.

12

936018R1

BOLT, sawtooth concave angle

12шт.

18526R1

LOCK NUT,7/16"-14, GB

7/16-14 ESNA stop nut

12шт.

13

936369R1

STRAP, sawtooth concave angle tie

2шт.

14

936372R1

BRACE, sawtooth concave angle

6шт.

15

155599C91

CYLINDER ASSY, Includes ref. nos. 16 thru 27, 29, 30 and 36

1шт.

16

155598C91

RETAINER ASSY, outer cylinder

2шт.

120377

NUT,3/8" - 16, Gr 5

For balance 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

23760KA

STRIP, For balance

1шт.

18

155110C91

RETAINER ASSY, inner cylinder

2шт.

19

NOT USED

1шт.

20

156396C1

HUB CAP

HUB, cylinder

2шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 C-Z crg bolt w/nut

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

21

Q1432

KEY,3/8" Sq x 5", Par

3/8 x 5 sq-paralllel

1шт.

22

Q51

KEY,3/8" Sq x 2 1/2", Par

1шт.

23

155117C1

BUSHING, cylinder shaft spacer

1шт.

24

628191R11

SHAFT ASSY, cylinder

1шт.

427651

SLOTTED NUT,1"-14, G5

1-14NS slt-hex nut

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

564708R1

1-21/32 x 2-1/2 x 5 ga washer

1шт.

10619P

1-21/32 x 2-1/4 x 16 ga washer

2шт.

25

939617R11

BOX

HOUSING ASSY, cylinder shaft bearing, Includes ref. nos. 26 & 27

1шт.

26

939618R91

BEARING

ball

1шт.

27

939619R91

SEAL

SEAL ASSY, cylinder shaft

1шт.

28

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 deg lubrication

1шт.

29

633514R91

PLATE ASSY, cylinder right hand

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

30

155115C11

BAR ASSY, sawtooth cylinder

12шт.

77746H

SCREW,Hex, 1/2" - 20 x 1 3/4", Gr 8

1/2-20 x 1-3/4 C-Z hex-hd mach screw

48шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

48шт.

31

936394R1

PULLEY, elevator drive slip clutch

1шт.

32

627736R1

BUSHING

elevator drive slip clutch pulley

1шт.

33

936301R91

CHAIN ASSY, tailings elevator, Consists of

1шт.

936303R91

FLIGHT W/ATTACHING LINK

1шт.

62

LINK ASSY.

LINK, plain, steel

1шт.

62SH1

LINK

attachment

1шт.

34

629193R1

SPROCKET ASSY.

SPROCKET, tailings elevator 6-7

2шт.

1/8 x 3/4 cot pin

1шт.

1/4 x 1-/34 dld pin

1шт.

35

159493C11

EXTENSION ASSY, feeder frame bottom, For use on corn heads

1шт.

36

159394C11

EXTENSION ASSY, concave front

1шт.

37

629903R1

BAR, balance weight

1шт.

38

NOT USED

1шт.
