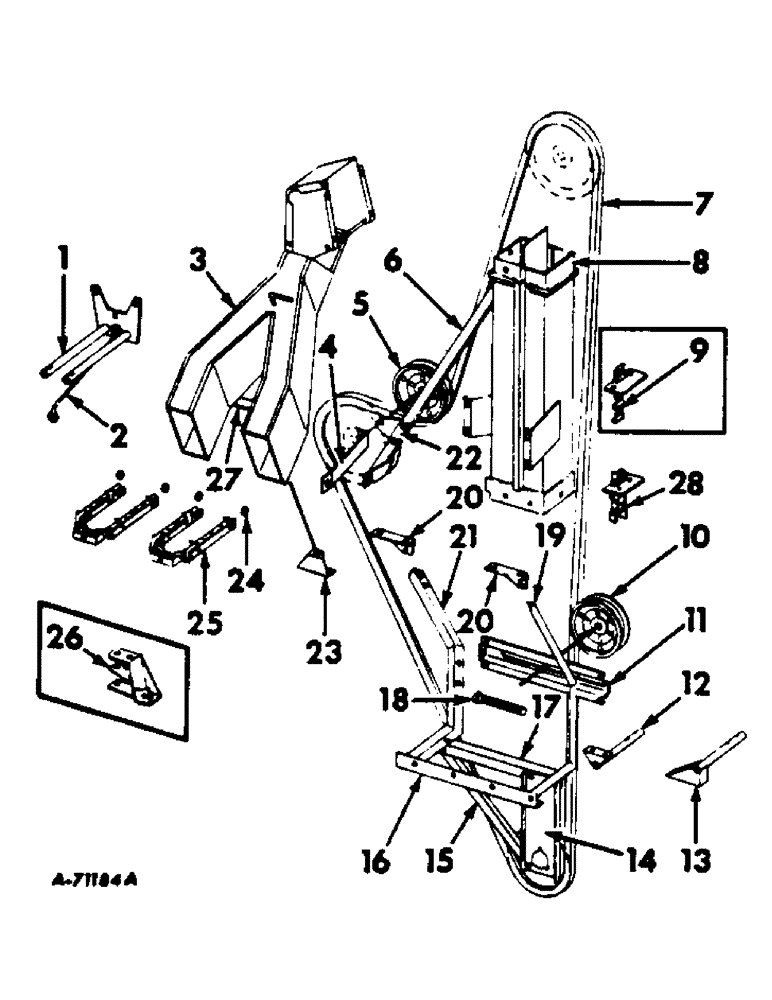

Запчасти Case IH 303 (297) - BAG DELIVERY SPOUT AND DRIVE (88) - ACCESSORIES

1

629151R91

SUPPORT W/PIPE, tailings elevator upper

1шт.

2

629154R1

BRACE, tailings elevator support

1шт.

3/8 x 3/4 C-Z mach bolt w/nut

2шт.

3/8 C-Z lockwasher

2шт.

3

654170R91

SPOUT W/TIE STRAP TOP, bag delivery, Includes ref. no. 27

1шт.

4

633730R1

BRACE, idler

1шт.

3/8 x 1 C-Z mach bolt w/nut

1шт.

3/8 x 1 C-Z mach bolt w/nut

1шт.

3/8 C-Z lockwasher

1шт.

5

565441R91

BEARING

SHEAVE ASSY, elevator drive idler

1шт.

5/8 x 2-1/4 C-Z mach bolt w/nut

1шт.

5/8 C-Z lockwasher

1шт.

10620P

WASHER

21/32 x 1-1/2 x 16 ga washer

6шт.

6

629159R91

BRACE W/GUSSET, elevator head

1шт.

7

150435C1

BELT

elevator drive

1шт.

8

654192R91

EXTENSION W/BOTTOM AND WRAPPER, grain elevator

1шт.

5/16 x 1/2 C-Z crg bolt w/nut

6шт.

5/16 C-Z lockwasher

6шт.

9

654199R91

CHAIN W/FLIGHT AND ATTACHING LINK, grain elevator, Consists of

1шт.

564456R1

STEEL FLIGHT

FLIGHT

9шт.

NLS

NO LONGER SERVICED

LINK, plain steel

36шт.

55SE

LINK

attaching steel

9шт.

10

565441R91

BEARING

SHEAVE ASSY, elevator drive tightener

1шт.

11

634720R91

BRACKET W/ANCHOR, elevator drive belt tightener

1шт.

3/8 x 3/4 C-Z mach bolt w/nut

4шт.

3/8 C-Z lockwasher

4шт.

12

654190R91

BRACE W/PLATE, elevator front

1шт.

13

654191R91

BRACE W/PLATE, elevator rear

1шт.

14

633729R1

SUPPORT, elevator jackshaft bearing outer

1шт.

3/8 x 3/4 C-Z crg bolt w/nut

3шт.

3/8 x 3/4 C-Z mach bolt w/nut

2шт.

3/8 C-Z lockwasher

5шт.

15

634722R1

STIFFENER, bearing bracket

1шт.

5/16 x 3/4 C-Z mach bolt w/nut

2шт.

5/16 C-Z lockwasher

2шт.

16

629158R1

SUPPORT, tightener bracket lower

1шт.

3/8 x 3/4 C-Z mach bolt w/nut

2шт.

3/8 C-Z lockwasher

2шт.

17

633731R1

SUPPORT, jackshaft bearing

1шт.

3/8 x 3/4 C-Z crg bolt w/nut

2шт.

3/8 C-Z lockwasher

2шт.

18

553863R1

BOLT, elevator drive belt tightener sheave adjusting, 1/2 x 20

1шт.

19

629156R1

SUPPORT, tightener rear

1шт.

3/8 x 3/4 C-Z mach bolt w/nut

6шт.

3/8 C-Z lockwasher

6шт.

20

629157R1

BRACE, support tightener upper

2шт.

3/8 x 1 C-Z mach bolt w/nut

4шт.

3/8 C-Z lockwasher

4шт.

21

629155R1

SUPPORT, tightener front

1шт.

3/8 x 3/4 C-Z mach bolt w/nut

6шт.

3/8 C-Z lockwasher

6шт.

22

629127R1

SUPPORT, inner idler

1шт.

5/8 x 3-1/4 C-Z mach bolt w/nut

1шт.

5/8 C-Z lockwasher

1шт.

10620P

WASHER

21/32 x 1-1/2 x 16 ga washer

6шт.

23

654177R1

BRACKET, downspout support

1шт.

5/16 x 1/2 C-Z crg bolt w/nut

1шт.

5/16 x 3/4 C-Z mach bolt w/nut

1шт.

5/16 C-Z lockwasher

3шт.

24

86224H

SPACER,1/4" Pipe x 3/8"

Stop, bag holder 1/4" Pipe x 3/8"

4шт.

5/16 x 1 C-Z mach bolt w/nut

4шт.

5/16 C-Z lockwasher

4шт.

25

15951K

HANGER ASSY, bag

2шт.

1/8 x 3/4 cotter pin

4шт.

M92150

PIN

5/16 x 3/4 dld pin

4шт.

11/32 x 3/4 x 16 ga washer

4шт.

26

NOT USED

1шт.

27

556624R1

STRAP, spout tie, 3/16 x 3/8 wagon box-hd rivet

4шт.

28

NOT USED

1шт.
