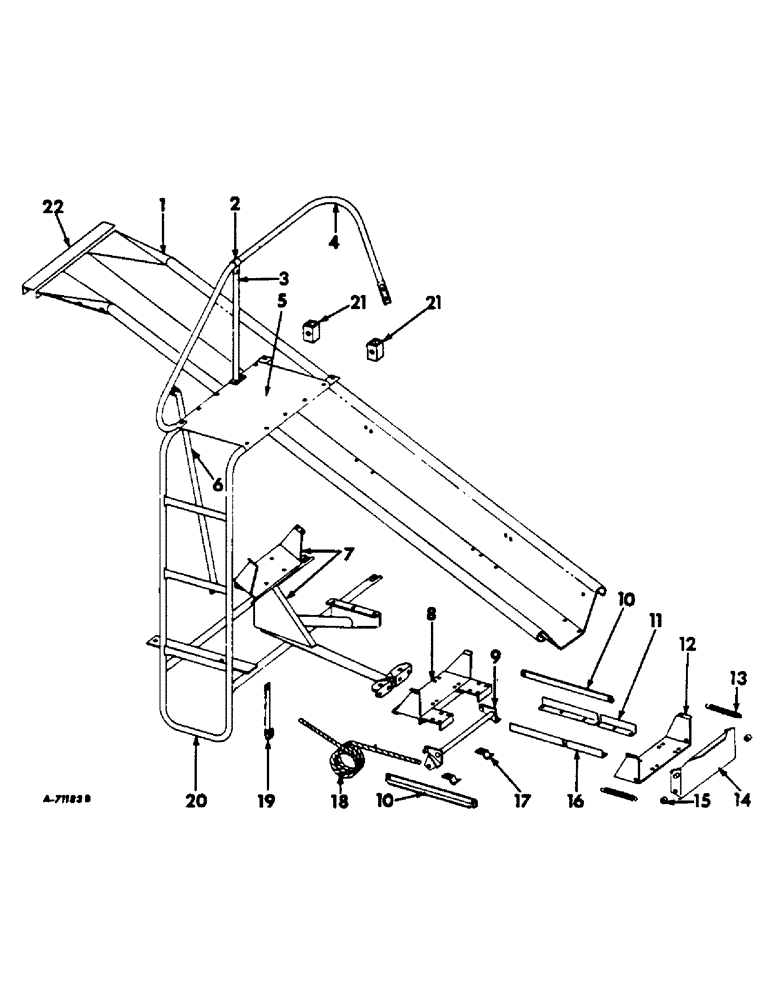

Запчасти Case IH 303 (295) - BAG CHUTE (88) - ACCESSORIES

1

569781R1

CHUTE, bag

1шт.

1/4 x 1/2 C-Z crg bolt w/nut

22шт.

1/4 x 3/4 C-Z crg bolt w/nut

2шт.

5/16 x 3/4 C-Z crg bolt w/nut

7шт.

1/4 C-Z lockwasher

24шт.

5/16 C-Z lockwasher

7шт.

2

569740R1

CLAMP, hand rail support

1шт.

1/4 x 1-1/2 C-Z mach bolt w/nut

1шт.

1/4 C-Z lockwasher

1шт.

3

629107R91

SUPPORT W/BASE, hand rail

1шт.

4

654189R1

RAIL, service ladder hand

1шт.

5

629102R1

DECK, service ladder

1шт.

3/8 x 1-3/4 C-Z mach bolt w/nut

12шт.

3/8 C-Z lockwasher

12шт.

6

629098R1

BRACE, chute diagonal

1шт.

7/16 x 1-3/4 C-Z mach bolt w/nut

1шт.

7/16 C-Z lockwasher

1шт.

7

629093R91

SUPPORT W/PLATE, bag chute

1шт.

7/16 x 1 C-Z mach bolt w/nut

1шт.

1/2 x 1 C-Z mach bolt w/nut

1шт.

7/16 C-Z lockwasher

1шт.

1/2 C-Z lockwasher

1шт.

8

569913R91

BAIL W/SUPPORT, bag chute rear

1шт.

7/16 x 1 C-Z mach bolt w/nut

4шт.

7/16 lockwasher

4шт.

9

23439K

LEVER W/ROD AND TRIP, bag dump

1шт.

1/8 x 3/4 cotter pin

2шт.

13/32 x 3/4 x 16 ga washer

2шт.

10

569910R1

STIFFENER, bag chute angle LH

2шт.

11

569909R1

STIFFENER, bag chute angle RH

1шт.

5/16 x 3/4 C-Z crg bolt w/nut

5шт.

5/16 C-Z lockwasher

5шт.

12

49080K

SUPPORT, bag dump door

1шт.

5/16 x 1 C-Z mach bolt w/nut

2шт.

5/16 C-Z lockwasher

2шт.

11/32 x 3/4 x 16 ga washer

2шт.

13

M79189

SPRING, bag dump door

2шт.

14

26302KA

DOOR W/PIN, bag dump

1шт.

1/8 x 3/4 cotter pin

2шт.

13/32 x 3/4 x 16 ga washer

2шт.

15

86224H

SPACER,1/4" Pipe x 3/8"

Bag dump door 1/4" Pipe x 3/8"

2шт.

16

569908R1

STIFFENER, bag chute angle LH

1шт.

5/16 x 3/4 C-Z crg bolt w/nut

5шт.

5/16 C-Z lockwasher

5шт.

17

26297K

HINGE, bag dump lever

2шт.

5/16 x 3/4 C-Z mach bolt w/nut

4шт.

5/16 C-Z lockwasher

4шт.

18

ROPE, bag dump door, Order Sisal rope 3/8 x 192 in., 3-ply

1шт.

19

634683R1

SUPPORT, service ladder rear

1шт.

3/8 x 1-1/2 C-Z mach bolt w/nut

1шт.

7/16 x 1 C-Z mach bolt w/nut

1шт.

3/8 C-Z lockwasher

1шт.

7/16 C-Z lockwasher

1шт.

20

629103R91

LADDER W/RAIL AND STEP, service

1шт.

21

935133R1

SPACER, service ladder

2шт.

22

935134R1

COVER, bag chute upper

1шт.
