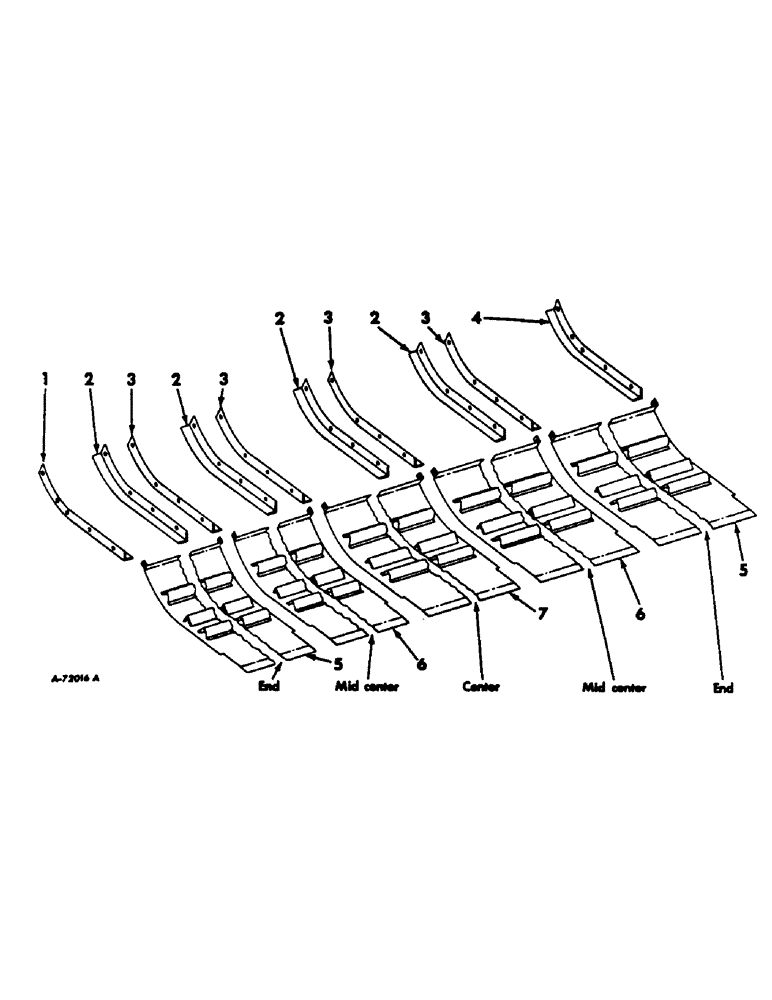

Запчасти Case IH 303 (268) - PLATFORM BOTTOM SHIELD (88) - ACCESSORIES
№
Артикул
Название
Примечание
Количество
1
571591R1
SUPPORT, platform bottom shield RH
1шт.
2
572902R1
SUPPORT, platform bottom shield LH, (2) used for 10 ft. and 12 ft platforms, (4) used for 13 ft. and 14 ft. platforms
1шт.
7/16 x 1 mach bolt w/nut
1шт.
7/16 lockwasher
1шт.
3
572903R1
SUPPORT, platform bottom shield RH, (2) used for 10 ft. and 12 ft platforms, (4) used for 13 ft. and 14 ft. platform
1шт.
7/16 x 1 mach bolt w/nut
1шт.
7/16 lockwasher
1шт.
4
571590R1
SUPPORT, platform bottom shield LH
1шт.
5
631913R91
SHIELD W/ANGLE AND CLIP, platform bottom end, 10 ft. platform
2шт.
5
631910R91
SHIELD W/ANGLE AND CLIP, platform bottom end, 12 ft. platform
2шт.
5
583503R92
SHIELD W/ANGLE AND CLIP, platform bottom end, 13 and 14 ft. platform
2шт.
7/16 x 1-1/2 mach bolt w/nut
2шт.
7/16 lockwasher
2шт.
15/32 x 1 x 16 ga washer
4шт.
6
654800R91
SHIELD W/ANGLE AND CLIP, platform bottom mid-center, 13 ft. platform
2шт.
6
588646R92
SHIELD W/ANGLE AND CLIP, platform bottom midcenter, 14 ft. platform
2шт.
7/16 x 1-1/2 mach bolt w/nut
2шт.
7/16 lockwasher
2шт.
W6652
WASHER
15/32 x 1 x 16 ga washer
8шт.
7
572904R92
SHIELD W/ANGLE AND CLIP, platform bottom center
1шт.
7/16 x 1-1/2 mach bolt w/nut
6шт.
7/16 lockwasher
6шт.
W6652
WASHER
15/32 x 1 x 16 ga washer
6шт.
Выбрано товаров: 23
