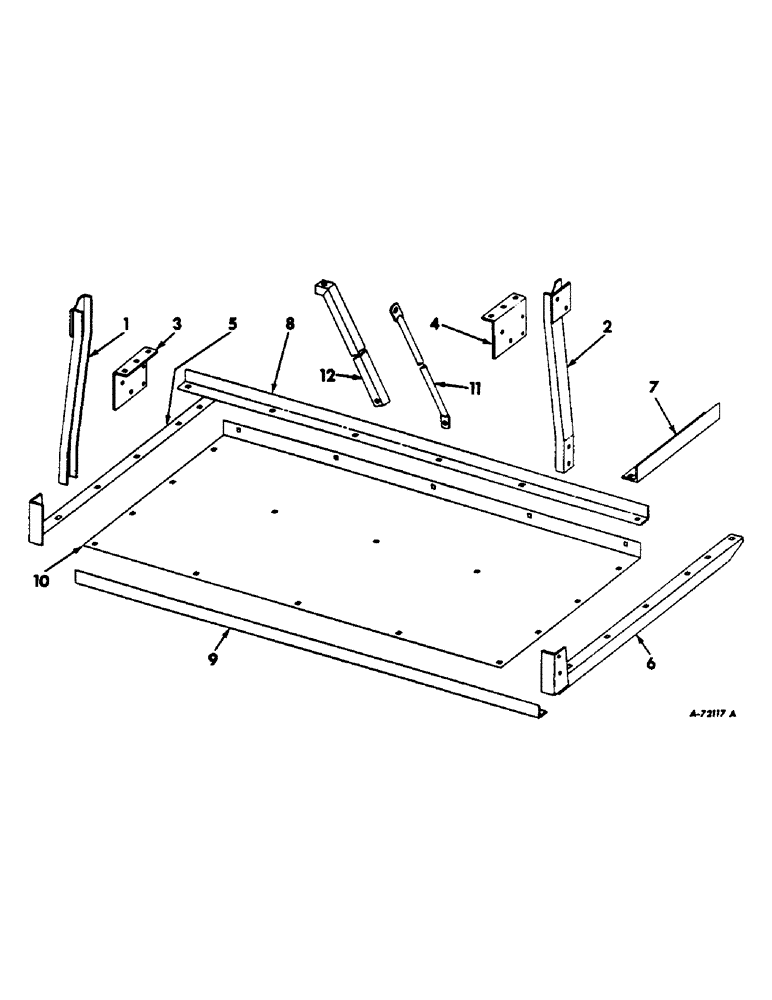

Запчасти Case IH 303 (267) - GRAIN AUGER TROUGH SHIELD (88) - ACCESSORIES

1

628579R91

POST W/PLATE, grain auger trough shield LH rear

1шт.

1/2 x 1 mach bolt w/nut

2шт.

1/2 x 1-1/4 mach bolt w/nut

2шт.

1/2 lockwasher

4шт.

2

628580R91

POST W/PLATE, grain auger trough shield RH rear

1шт.

1/2 x 1-1/4 mach bolt w/nut

4шт.

1/2 lockwasher

4шт.

3

627594R1

BRACKET, shield rear post LH

1шт.

4

627595R1

BRACKET, shield rear post RH

1шт.

5

569498R91

SUPPORT W/ANCHOR, grain trough shield LH

1шт.

3/8 x 3/4 crg bolt w/nut

2шт.

1/2 x 1 crg bolt w/nut

2шт.

3/8 lockwasher

2шт.

1/2 lockwasher

2шт.

7

569504R2

TIE, grain auger trough shield stiffener

1шт.

3/8 x 3/4 crg bolt w/nut

2шт.

3/8 lockwasher

2шт.

8

628487R1

STIFFENER, grain auger trough shield LH

1шт.

9

628488R1

STIFFENER, grain auger trough shield RH

1шт.

10

569507R1

SHIELD, grain auger trough bottom

1шт.

3/8 x 3/4 crg bolt w/nut

10шт.

3/8 lockwasher

10шт.

11

634401R1

BRACE, grain auger shield stiffener upper

1шт.

7/16 x 1-1/4 mach bolt w/nut

2шт.

7/16 lockwasher

2шт.

12

634400R1

BRACE, grain auger shield rear

1шт.

7/16 x 3/4 mach bolt w/nut

1шт.

7/16 lockwasher

1шт.
