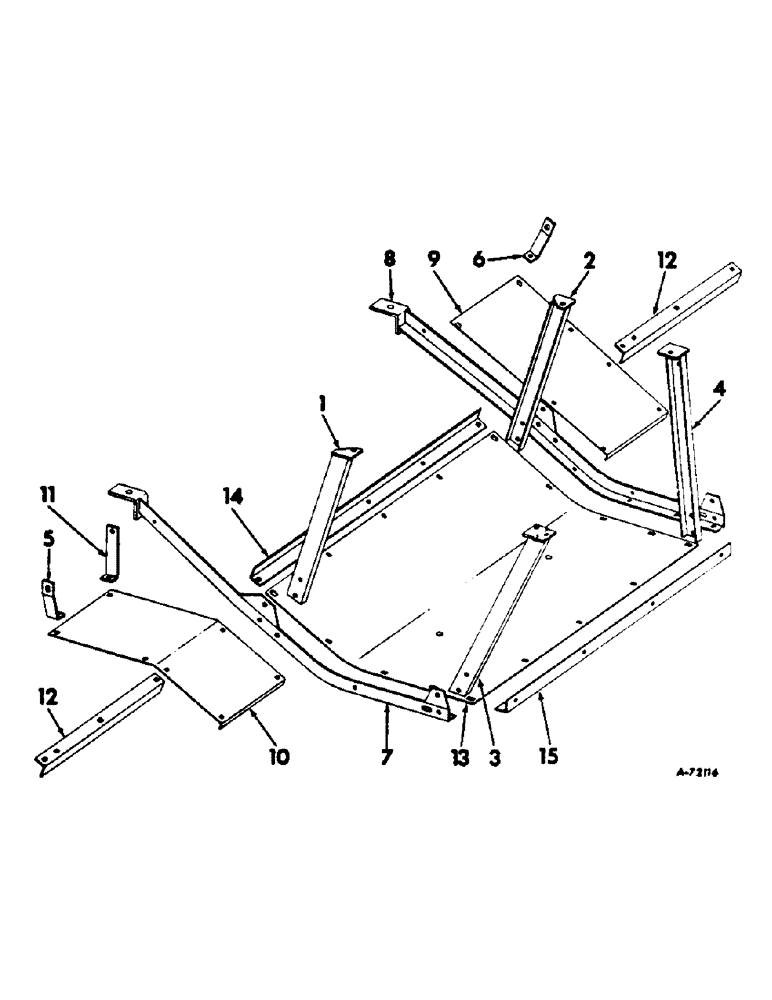

Запчасти Case IH 303 (265) - FAN BOTTOM SHIELDS (88) - ACCESSORIES

1

628489R91

POST W/PLATE, fan shield LH

1шт.

1/2 x 1 crg bolt w/nut

2шт.

1/2 x 1-1/2 crg bolt w/nut

1шт.

1/2 lockwasher

3шт.

2

628490R91

POST W/PLATE, fan shield front RH

1шт.

1/2 x 1 crg bolt w/nut

2шт.

1/2 x 1-1/2 crg bolt w/nut

1шт.

1/2 lockwasher

3шт.

3

631957R91

POST W/PLATE, fan bottom shield LH rear

1шт.

1/2 x 1 mach bolt w/nut

2шт.

3/8 x 1 crg bolt w/nut

1шт.

1/2 lockwasher

2шт.

3/8 lockwasher

1шт.

4

631955R91

POST W/PLATE, fan bottom shield rear

1шт.

1/2 x 1 mach bolt w/nut

2шт.

1/2 x 1-1/4 crg bolt w/nut

1шт.

1/2 lockwasher

3шт.

5

569684R1

CLIP, fan bottom front LH

1шт.

6

631962R1

CLIP, fan bottom front RH

1шт.

7

631959R91

SUPPORT W/ANCHOR, fan shield LH

1шт.

3/8 x 3/4 mach bolt w/nut

1шт.

1/2 x 1 mach bolt w/nut

1шт.

3/8 lockwasher

1шт.

1/2 lockwasher

1шт.

8

631960R91

SUPPORT W/ANCHOR, fan shield RH

1шт.

9

631970R1

SHIELD, fan bottom RH front

1шт.

7/16 x 3/4 mach bolt w/nut

1шт.

3/8 x 3/4 mach bolt w/nut

1шт.

3/8 lockwasher

1шт.

7/16 lockwasher

1шт.

10

569673R1

SHIELD, fan bottom LH front

1шт.

3/8 x 3/4 crg bolt w/nut

1шт.

3/8 x 1 crg bolt w/nut

1шт.

3/8 lockwasher

2шт.

11

569684R1

CLIP, fan bottom shield front support

1шт.

12

631954R1

SUPPORT, fan bottom shield, RH

1шт.

3/8 x 1 crg bolt w/nut

4шт.

3/8 lockwasher

4шт.

12

570648R1

SUPPORT, fan bottom shield LH

1шт.

13

569480R1

SHIELD, fan bottom

1шт.

3/8 x 3/4 crg bolt w/nut

4шт.

3/8 x 1 crg bolt w/nut

4шт.

1/2 x 1 crg bolt w/nut

2шт.

3/8 lockwasher

8шт.

1/2 lockwasher

2шт.

14

569478R1

BRACE, fan shield front

1шт.

15

569479R2

BRACE, fan shield rear

1шт.
