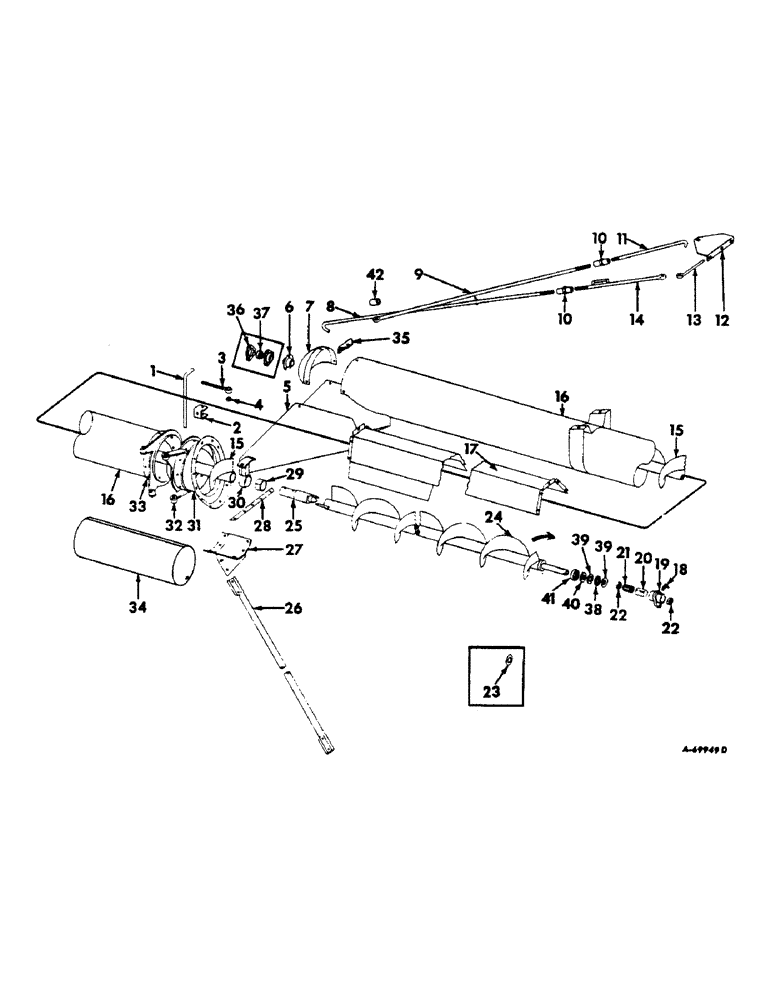

Запчасти Case IH 303 (150) - GRAIN TANK UNLOADER AUGER AND TUBE (80) - CROP STORAGE/UNLOADING

1

587686R1

PIN, unloader tube hinge

1шт.

3/16 x 1 cotter pin

1шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga washer

2шт.

2

633161R1

BRACKET, eyebolt

1шт.

3

559017R1

BOLT,Eye, 1/2" - 13 x 4 1/8", Full Thd

EYEBOLT, unloader tube latch

1шт.

1/2 C-Z nut

2шт.

1/8 x 1 cotter pin

1шт.

6642

PIN

5/8 x 2-1/4 dld pin

1шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga washer

1шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga washer

1шт.

4

558506R1

SPACER

unloader tube latch eyebolt

1шт.

5

588645R11

SPOUT W/SEAL ASSY, unloader tube

1шт.

5/16 x 1/2 crg bolt w/nut

2шт.

5/16 lockwasher

2шт.

11/32 x 1 x 16 ga washer

2шт.

6

564851R91

BALL BEARING,1.002" ID x 3.75" OD x 0.9"

unloader upper auger

1шт.

5/16 x 3/4 crg bolt w/nut

3шт.

5/16 lockwasher

3шт.

7

584266R1

BRACKET, unloader upper auger bearing

1шт.

5/16 x 1/2 mach bolt w/nut

3шт.

5/16 lockwasher

3шт.

8

627364R11

ROD W/PLATE, unloader tube anchor lower rear

1шт.

5/16 x 1-3/4 mach bolt

1шт.

5/16 nut

1шт.

935736R1

NUT, WING

5/16 wing nut

1шт.

5/16 lockwasher

1шт.

9

627363R1

ROD, unloader tube pivot lower fornt

1шт.

7/16 x 1-3/4 mach bolt

1шт.

7/16 nut

2шт.

10

M4175

TURNBUCKLE, unloader tube rod

2шт.

11

587892R1

ROD, unloader tube pivot upper

1шт.

5/8 nut

1шт.

12

627358R1

ANCHOR, unloader tube pivot rod, Serial no. 7277 & below

1шт.

3/8 x 3/4 mach bolt w/nut

1шт.

3/8 x 1 mach blt w/nut

2шт.

3/8 lockwasher

3шт.

12

939603R1

ANCHOR, unloader tube pivot rod, Serial no. 7278 & above

1шт.

3/8 x 3/4 C-Z mach bolt w/nut

1шт.

3/8 x 1 C-Z mach bolt w/nut

2шт.

3/8 C-Z lockwasher

3шт.

13

629027R1

RETAINER, unloader tube rod

1шт.

1/2 x 1-1/2 crg bolt w/nut

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

14

629919R91

ROD W/HANDLE, unloader tube anchor

1шт.

5/8 nut

1шт.

15

627373R91

AUGER W/SHAFT, unloader upper

1шт.

16

627368R91

TUBE W/HINGE ASSY, unloader upper, Includes ref. no. 33 62.12" Length

1шт.

17

629833R91

SHIELD W/SUPPORT, unloader lower auger

1шт.

5/16 x 3/4 crg bolt w/nut

5шт.

5/16 x 1 crg bolt w/nut

3шт.

5/16 x 3/4 mach bolt

4шт.

5/16 lockwasher

12шт.

11/32 x 3/4 x 16 ga wsher

4шт.

18

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 deg elbow lubrication, Not for hydrostatic ground drive

1шт.

18

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 x 45 deg lubrication, For hydrostatic ground drive

1шт.

19

564556R1

BOX

unloader auger lower bearing

1шт.

1/8 x 3/4 cotter pin

1шт.

1/4 x 15/16 dld pin

1шт.

20

551689R1

RACE

cylinder roller unit outer

1шт.

21

564557R91

BEARING ASSY,1" ID x 1.378" OD x 1.75"

cylindrical roller unit

1шт.

22

564592R91

SEAL,23.5mm ID x 36.6mm OD x 6.5mm Thk

OIL SEAL, unloader auger bearing

2шт.

23

564558R1

WASHER, unloader lower auger thrust, Serial no. 9427 & below

1шт.

24

627378R91

AUGER W/SHAFT, unloader lower, Serial no., Serial Range: 501-4806

1шт.

24

93507R91

AUGER W/SHAFT, unloader lower, Serial no. 4807 & above

1шт.

1/4 x 1-3/4 cotter pin

1шт.

1-1/32 x 1-1/2 x 16 ga washer

1шт.

25

629663R91

STUD W/PIN, unloader auger

1шт.

3/8 x 1-3/4 mach bolt w/nut

4шт.

3/8 lockwasher

1шт.

11/32 x 3/4 x 16 ga washer

4шт.

26

627384R1

PIPE, unloader support

1шт.

3/8 x 1 mach bolt w/nut

2шт.

3/8 lockwasher

1шт.

27

629650R91

SUPPORT W/PLATE, unloader auger

1шт.

5/16 x 1 crg bolt w/nut

6шт.

3/8 x 1 mach bolt w/nut

2шт.

5/16 lockwasher

6шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

11/32 x 3/4 x 16 ga washer

6шт.

28

COTTON WEBBING, 1 x 12-1/2, 2-ply, Order from bulk stock

1шт.

29

629668R1

BUSHING

1шт.

30

629665R92

GAUGE

SUPPORT W/BUSHING ASSY, unloader auger upper bearing, Includes ref. no. 29

1шт.

5/16 x 1 mach bolt w/nut

2шт.

5/16 lockwasher

2шт.

11/32 x 1 x 16 ga washer

1шт.

31

629655R91

TUBE W/CONNECTION, unloader lower, Includes ref. nos. 2 and 32

1шт.

1/4 x 3/4 wagon box-hd rivet

8шт.

5/16 x 3/4 wagon box-hd rivet

2шт.

3/8 x 3/4 wagon box-hd rivet

1шт.

3/8 x 1 wagon box-hd rivet

1шт.

32

627386R1

HINGE, unloader lower tube

1шт.

33

627386R1

HINGE, unloader tube

1шт.

34

654689R1

TUBE, unloader auger tube extension, Serial no. 501 to 4807 20" Length

1шт.

5/16 x 1/2 crg bolt w/nut

2шт.

5/16 lockwasher

2шт.

35

939601R1

BRACKET, grain hopper unloader tube rod, Serial no. 7278 & above

1шт.

3/8 x 3/4 C-Z mach bolt w/nut

2шт.

3/8 C-Z lockwasher

2шт.

36

NOT USED

1шт.

37

NOT USED

1шт.

38

368372R1

BEARING, unloadr auger thrust, Serial no. 1027 & above

1шт.

39

864982R1

THRUST WASHER,1.012" ID x 1.552" OD x 0.93"

RACE, unloader auger thrust brg, Serial no. 1027 & above

2шт.

40

21127R1

WASHER

unloader lower auger thrust brg seal felt, Serial no. 1027 & above

1шт.

41

U14764

WASHER

unloader lower auger thrust brg cup, Serial no. 1027 & above

1шт.

42

154397C1

SPACER,5/8" Tube x 1 1/4"

unloader tube anchor lower rear rod, For hydrostatic ground drive

1шт.
