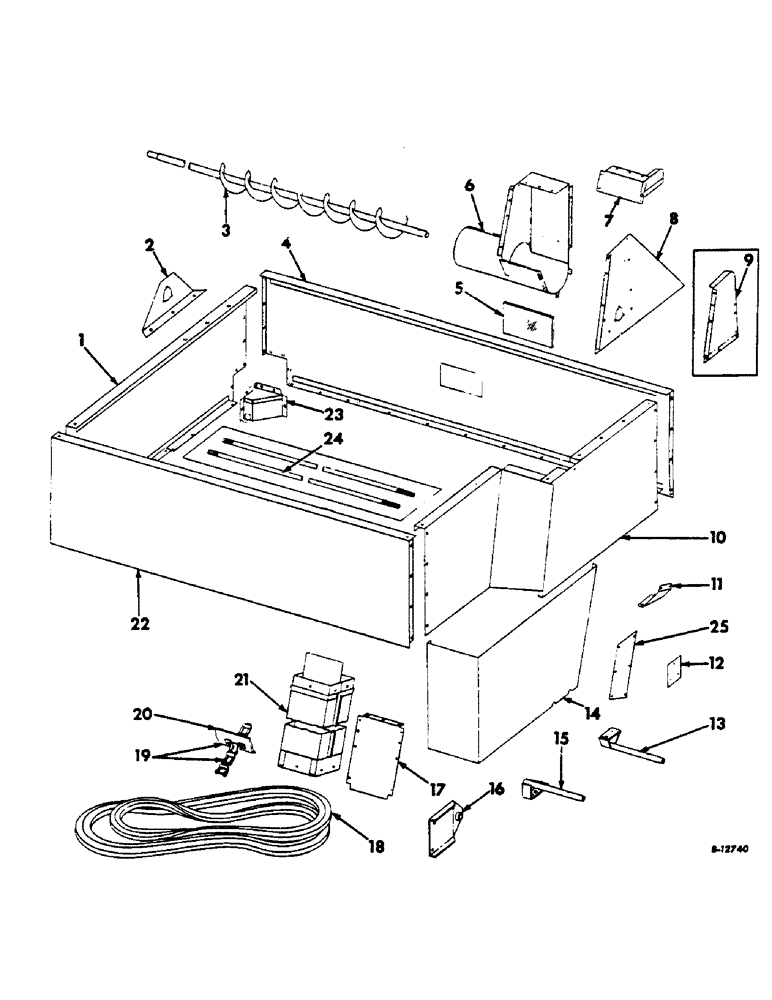

Запчасти Case IH 303 (146) - GRAIN TANK EXTENSION ATTACHMENT, SERIAL NO. 2751 TO 7278 (80) - CROP STORAGE/UNLOADING

1

935512R91

SIDE W/CLIP, grain tank LH

1шт.

5/16 x 1/2 C-Z crg bolt w/nut

10шт.

5/16 C-Z lockwasher

10шт.

2

NOT USED

1шт.

3

654894R91

AUGER W/SHAFT, grain tank leveling

1шт.

4

628557R91

SIDE W/CLIP, grain tank extension front

1шт.

5/16 x 1/2 C-Z crg bolt w/nut

1шт.

3/8 x 3/4 C-Z mach bolt w/nut

1шт.

5/16 C-Z lockwasher

1шт.

3/8 C-Z lockwasher

1шт.

5

WINDOW, grain tank, Procure from local glass company

1шт.

6

654892R91

TUBE W/CLIP, grain tank leveling auger

1шт.

7

NOT USED

1шт.

8

NOT USED

1шт.

9

935524R1

EXTENSION, RH front side

1шт.

1/4 x 1/2 C-Z crg bolt w/nut

4шт.

1/4 C-Z nut

7шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 x 1/2 C-Z slt-rd-hd mach screw

7шт.

1/4 C-Z lockwasher

11шт.

10

935518R91

SIDE W/CLIP, grain tank RH

1шт.

5/16 x 1/2 C-Z crg bolt w/nut

8шт.

1/4 C-Z lockwasher

4шт.

5/16 C-Z lockwasher

8шт.

3/8 C-Z lockwasher

3шт.

11

NOT USED

1шт.

12

626582R1

COVER

grain tank distributing auger bearing

2шт.

5/16 x 1/2 C-Z crg bolt w/nut

6шт.

5/16 C-Z lockwasher

6шт.

13

654190R91

BRACE W/PLATE, grain elevator lower front

1шт.

14

NOT USED

1шт.

15

654191R91

BRACE W/PLATE, grain elevator lower rear

1шт.

16

935528R91

CHANNEL W/HUB, grain tank unloader drive tightener sheave

1шт.

17

632616R1

COVER, front filler

1шт.

1/4 x 1/2 C-Z crg bolt w/nut

8шт.

5/16 x 1/2 C-Z crg bolt w/nut

1шт.

1/4 C-Z lockwasher

8шт.

5/16 C-Z lockwasher

1шт.

18

626589R1

BELT,0.88" W

V-BELT , Elevator drive 0.88" W

1шт.

18

634890R1

BELT

elevator drive, For machines equipped with grain tank, grain tank extension and scourkleen attachment

1шт.

19

632494R91

CHAIN W/FLIGHT, grain elevator

1шт.

20

568169R91

CONVEYOR

FLIGHT W/ATTACHING LINK

1шт.

55SE

LINK

attaching

1шт.

NLS

NO LONGER SERVICED

LINK, plain

1шт.

21

632609R91

EXTENSION W/SEAL, grain elevator

1шт.

22

935515R91

SIDE W/CLIP, grain tank rear

1шт.

5/16 x 1/2 C-Z crg bolt w/nut

1шт.

3/8 x 3/4 C-Z mach bolt w/nut

1шт.

5/16 C-Z lockwasher

1шт.

3/8 C-Z lockwasher

1шт.

23

632057R91

SHIELD W/TOP AND SIDE, unloader tube anchor rod

1шт.

24

628335R1

ROD, grain tank side support

1шт.

1/2 C-Z nut

8шт.

1/2 C-Z lockwasher

8шт.

73730H

17/32 x 1-1/2 x 11 washer

8шт.

25

935871R1

BRACKET, elevator support

1шт.

5/16 x 3/4 C-Z crg bolt w/nut

2шт.

5/16 C-Z washer

2шт.
