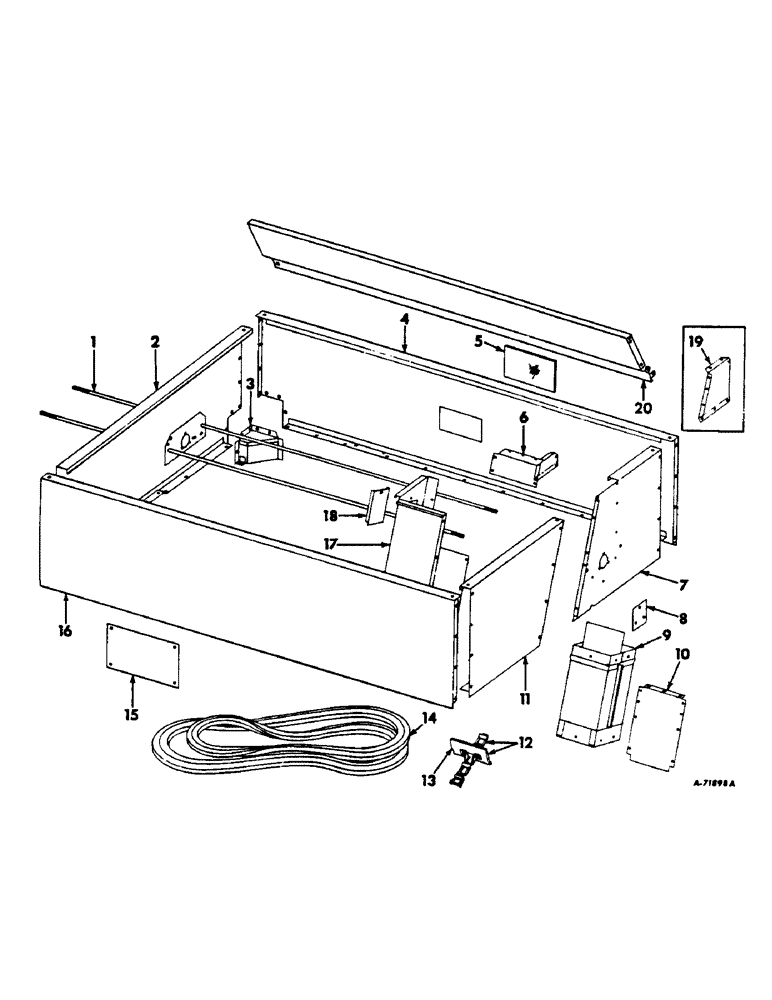

Запчасти Case IH 303 (144) - GRAIN TANK EXTENSION ATTACHMENT, SERIAL NO. 2750 AND BELOW (80) - CROP STORAGE/UNLOADING

1

628335R1

ROD, grain tank side support

2шт.

1/2 C-Z nut

8шт.

1/2 C-Z lockwasher

8шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga washer

8шт.

2

632617R91

SIDE W/CLIP, grain tank LH

1шт.

5/16 x 1/2 C-Z crg bolt w/nut

1шт.

5/16 x 1 C-Z crg bolt w/nut

1шт.

5/16 C-Z lockwasher

1шт.

3

632057R91

SHIELD W/CLIP, unloader tube anchor rod

1шт.

4

628557R91

SIDE W/CLIP, grain tank front

1шт.

5/16 x 1/2 C-Z crg bolt w/nut

1шт.

3/8 x 3/4 C-Z mach bolt w/nut

2шт.

5/16 C-Z lockwasher

1шт.

3/8 C-Z lockwasher

2шт.

5

WINDOW, grain tank, Procure from local glass company

1шт.

6

NOT USED

1шт.

7

632607R91

SIDE W/CLIP, grain tank RH front

1шт.

5/16 x 1/2 C-Z crg bolt w/nut

3шт.

1/4 C-Z nut

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 x 1/2 C-Z slt-rd-hd mach screw

1шт.

1/4 C-Z lockwasher

1шт.

5/16 C-Z lockwasher

1шт.

8

626582R1

COVER

grain tank distributing auger bearing

2шт.

5/16 x 1/2 C-Z crg bolt w/nut

6шт.

5/16 C-Z lockwasher

6шт.

9

632609R91

EXTENSION, grain elevator

1шт.

5/16 x 1/2 C-Z crg bolt w/nut

1шт.

5/16 C-Z lockwasher

1шт.

10

632616R1

COVER, front filler

1шт.

1/4 x 1/2 C-Z crg bolt w/nut

8шт.

5/16 x 1/2 C-Z crg bolt w/nut

1шт.

1/4 C-Z lockwasher

8шт.

5/16 C-Z lockwasher

1шт.

11

632605R91

SIDE W/CLIP, grain tank rear

1шт.

5/16 x 1/2 C-Z crg bolt w/nut

3шт.

5/16 C-Z lockwasher

3шт.

12

632494R91

CHAIN W/FLIGHT, grain elevator extension

1шт.

13

568169R91

CONVEYOR

FLIGHT W/ATTACHING LINK

1шт.

55SE

LINK

attaching

1шт.

NLS

NO LONGER SERVICED

LINK, plain

1шт.

14

150434C1

V-BELT,0.88" W x 166.99" L

Elevator Drive 0.88" W x 166.99" L

1шт.

14

634891R1

V-BELT 0.88" W, Elevator drive, Grain machines equipped with grain tank, Grain tank extension and scourkleen attachment 0.88" W

1шт.

15

NOT USED

1шт.

16

632619R91

SIDE W/CLIP, grain tank rear

1шт.

5/16 x 1/2 C-Z crg bolt w/nut

1шт.

3/8 x 3/4 C-Z mach bolt w/nut

1шт.

5/16 C-Z lockwasher

1шт.

3/8 C-Z lockwasher

1шт.

17

628539R91

SHEET W/CLIP, filler

1шт.

1/4 x 1/2 C-Z crg bolt w/nut

4шт.

5/16 x 1/2 C-Z crg bolt w/nut

1шт.

1/4 C-Z lockwasher

1шт.

5/16 C-Z lockwasher

1шт.

18

NOT USED

1шт.

19

632615R1

EXTENSION, right front side

1шт.

1/4 x 1-1/2 C-Z crg bolt w/nut

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 x 1/2 C-Z slt-rd-hd mach screw

1шт.

1/4 C-Z lockwasher

1шт.

20

654931R91

DEFLECTOR W/CLIP, grain tank leveling auger

1шт.

5/16 x 3/4 C-Z crg bolt w/nut

8шт.

5/16 C-Z lockwasher

8шт.
