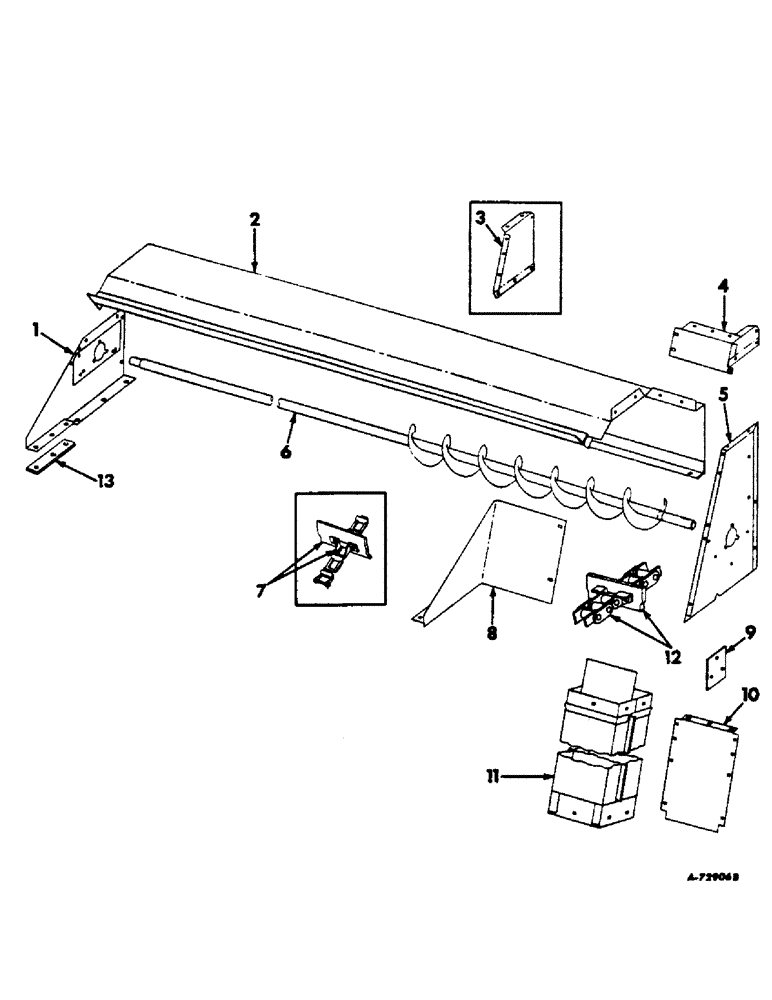

Запчасти Case IH 303 (142) - GRAIN TANK RAISED LEVELING AUGER, STANDARD, FOR RICE, SPECIAL FOR GRAIN (80) - CROP STORAGE/UNLOADING

1

654889R91

SUPPORT W/CLIP, grain tank leveling auger LH

1шт.

1/4 x 1/2 crg bolt w/nut

6шт.

5/16 x 1/2 crg bolt w/nut

1шт.

5/16 x 3/4 crg bolt w/nut

1шт.

1/4 nut

3шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-rd-hd mach screw

3шт.

1/4 lockwasher

9шт.

5/16 lockwasher

2шт.

2

654886R91

COVER W/ANGLE, grain tank leveling auger

1шт.

1/4 nut

4шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-rd-hd mach screw

4шт.

1/4 lockwasher

4шт.

3

632615R1

EXTENSION, grain tank RH front side

1шт.

1/4 x 1/2 crg bolt w/nut

3шт.

1/4 x 1/2 mach bolt w/nut

1шт.

1/4 lockwasher

4шт.

4

NOT USED

1шт.

5

654896R91

SUPPORT W/CLIP, grain tank leveling auger RH

1шт.

1/4 x 1/2 crg bolt w/nut

5шт.

5/16 x 1/2 crg bolt w/nut

1шт.

5/16 x 3/4 x 3/4 crg bolt w/nut

1шт.

1/4 x 1/2 sltd-rd-hd mach screw

3шт.

1/4 hex nut

3шт.

1/4 lockwasher

8шт.

5/16 lockwasher

2шт.

6

654894R91

AUGER W/SHAFT, leveling

1шт.

7

632494R91

CHAIN W/FLIGHT, grain elevator extension, Consists of

1шт.

568169R91

CONVEYOR

FLIGHT W/PLAIN AND ATTACHING LINK

1шт.

55SE

LINK

attaching

1шт.

NLS

NO LONGER SERVICED

LINK, plain

1шт.

558430R1

RIVET

5/16 x 19/32 oval-hd tubular rivet

1шт.

8

935428R91

SHEET W/CLIP, grain tank filler

1шт.

1/4 x 1/2 crg bolt w/nut

2шт.

5/16 x 1/2 crg bolt w/nut

6шт.

1/4 lockwasher

2шт.

5/16 lockwasher

6шт.

9

626582R1

COVER

grain tank leveling auger bearing opening

2шт.

5/16 x 1/2 crg bolt w/nut

6шт.

5/16 lockwasher

6шт.

10

632616R1

COVER, grain tank filler

1шт.

1/4 x 1/2 crg bolt w/nut

8шт.

5/16 x 1/2 crg bolt w/nut

3шт.

1/4 lockwasher

8шт.

5/16 lockwasher

3шт.

11

632609R91

EXTENSION W/SEAL, grain elevator

1шт.

5/16 x 1/2 crg bolt w/nut

7шт.

5/16 lockwasher

7шт.

12

NOT USED

1шт.

13

151299C1

STRAP, grain tank leveling auger LH support

1шт.
