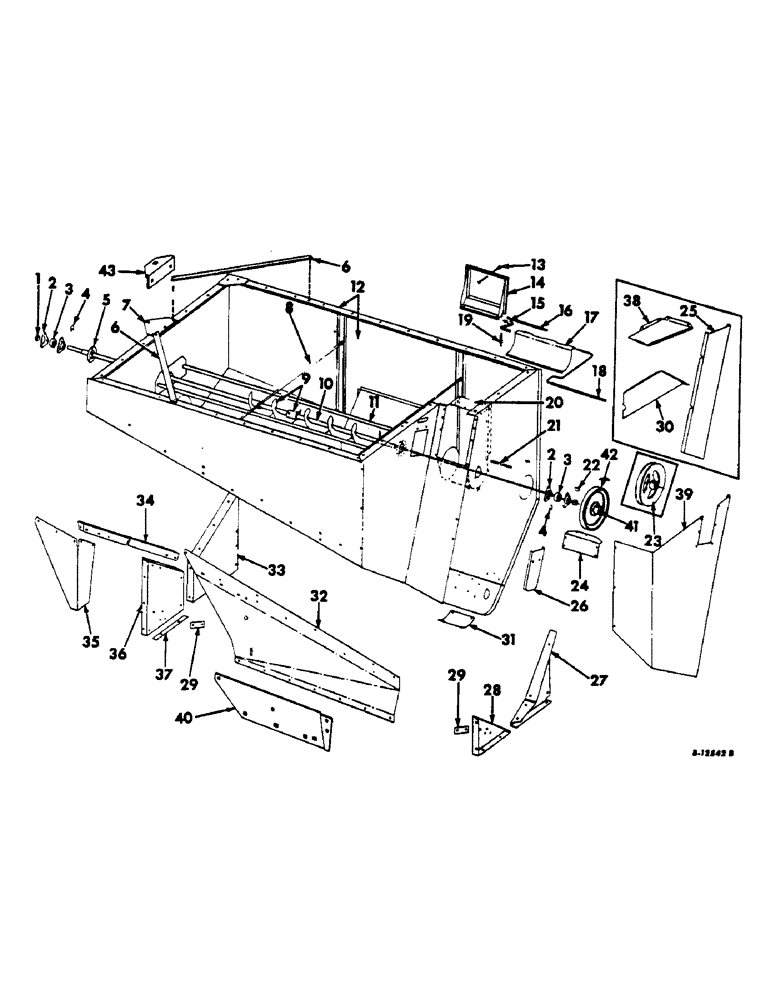

Запчасти Case IH 303 (140) - GRAIN TANK (80) - CROP STORAGE/UNLOADING

1

455102R11

COLLAR

W/SET SCREW ASY, locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 x 1/4 cup-pt set screw

2шт.

2

571424R1

FLANGE

grain tank leveling auger bearing

4шт.

5/16 x 3/4 crg bolt w/nut

6шт.

5/16 lockwasher

6шт.

3

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ball

2шт.

4

628535R1

SHIM

grain tank distributing auger bearing

6шт.

5

589281R1

BRACKET

SHIELD, grain tank distributing auger bearing, grain only

2шт.

6

627121R1

BRACE, grain tank, Serial no. 7277 & below

2шт.

6

939602R1

BRACE, grain hopper, Serial no. 7278 & above

1шт.

3/8 x 3/4 C-Z mach bolt w/nut

4шт.

3/8 C-Z lockwasher

4шт.

7

627358R1

ANCHOR, unloader pivot tube rod, Serial no. 7277 & below

1шт.

7

939603R1

ANCHOR, unloader tube pivot rod, Serial no. 7278 & above

1шт.

3/8 x 3/4 C-Z mach bolt w/nut

1шт.

3/8 x 1 mach bolt w/nut

2шт.

3/8 lockwasher

3шт.

8

631370R1

ROD, grain tank front and rear side support

2шт.

1/2 nut

4шт.

1/2 lockwasher

4шт.

9

627122R91

AUGER

EXTENSION W/HUB, distributing auger, grain

1шт.

25-147

JAM NUT,Jam, 7/16"-14, G5

7/16 jam nut

2шт.

102905

SET SCREW,Sq Hd, 7/16"-14 x 3/4"

7/16 x 3/4 cup-pt set screw

2шт.

10

628336R91

AUGER W/SHAFT, leveling, grain

1шт.

10

654894R91

AUGER W/SHAFT, leveling, rice

1шт.

11

633464R1

PIPE, grain tank side support rod

1шт.

12

628333R91

TANK ASSY, grain, Includes ref. nos. 13 thru 19, Serial no. 2750 & below

1шт.

12

935394R91

TANK ASSY, grain, Includes ref. nos. 13 thru 19, Serial no., Serial Range: 2751-7277

1шт.

12

938858R91

HOPPER ASSY, grain tank, Serial no. 7278 & above

1шт.

5/16 x 1/2 crg bolt w/nut

2шт.

5/16 x 3/4 crg bolt w/nut

1шт.

3/8 x 3/4 crg bolt w/nut

1шт.

3/8 x 1 crg bolt w/nut

1шт.

1/2 x 3/4 crg bolt w/nut

1шт.

1/2 x 1-1/2 crg bolt w/nut

1шт.

5/16 x 3/4 mach bolt w/nut

1шт.

1/4 x 1/2 mach bolt w/nut

1шт.

1/4 nut

1шт.

3/8 nut

1шт.

470-12520

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

1/4 x 1/2 slt-rd-hd mach screw

1шт.

114697

SCREW,Slotted Rd Hd, 3/8"-16 x 1/2"

3/8 x 1/2 slt-rd-hd mach screw

1шт.

1/4 lockwasher

1шт.

5/16 lockwasher

1шт.

3/8 lockwasher

1шт.

1/2 lockwasher

1шт.

11/32 x 3/4 x 16 ga washer

1шт.

13

587056R1

KNOB, inspection door

1шт.

633712R1

RIVET

1шт.

14

633649R91

DOOR W/SEAL AND HINGE, tailings inspection

1шт.

15

633230R1

ROD, tailings delivery auger valve control

1шт.

16

634523R1

ROD, tailings inspection door hinge

1шт.

1/8 x 3/4 cot pin

1шт.

17

633667R91

VALVE W/HINGE, tailings delivery

1шт.

18

U17024

PIN

ROD, tailings delivery auger valve

1шт.

19

Z1259

SPRING

tailings inspection door return

2шт.

1/4 x 1-1/4 crg bolt

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

20

629647R91

TUBE W/CLIP, leveling auger, grain

1шт.

20

654892R91

TUBE W/CLIP, leveling auger, rice

1шт.

21

628335R1

ROD, grain tank side support

2шт.

22

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

KEY, no. 15 Woodruff

1шт.

23

633199R1

SHEAVE, grain tank distributing auger driven, Serial no. 7277 & below

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

102883

SET SCREW

5/16 x 3/4 cup-pt set screw

2шт.

24

628334R1

DOOR, elevator tank

1шт.

1/4 x 1/2 crg bolt w/nut

4шт.

1/4 x 1/2 mach bolt

3шт.

564791R1

SPRING NUT

1/4 speed nut

3шт.

1/4 lockwasher

7шт.

25

631937R1

COVER, grain elevator opening, Serial no. 2750 & below

1шт.

5/16 x 3/4 crg bolt w/nut

5шт.

5/16 lockwasher

5шт.

11/32 x 3/4 x 16 ga washer

5шт.

26

629662R1

DOOR, grain elevator headshaft

1шт.

5/16 x 1/2 crg bolt w/nut

2шт.

5/16 lockwasher

2шт.

27

629493R1

BRACKET, grain tank RH front support

1шт.

3/8 x 3/4 crg bolt w/nut

9шт.

3/8 lockwasher

9шт.

28

629497R1

BRACKET, grain tank RH rear support

1шт.

3/8 x 3/4 crg bolt w/nut

6шт.

3/8 lockwasher

6шт.

29

629505R1

PLATE, cylinder beater cover

2шт.

5/16 x 3/4 crg bolt w/nut

4шт.

5/16 lockwasher

4шт.

30

628357R1

BRACE, grain tank RH support, Serial no. 2750 & below

1шт.

31

627116R1

COVER

DOOR, grain tank cleanout

1шт.

5/16 x 1/2 cap screw

4шт.

5/16 lockwasher

4шт.

11/32 x 1 x 16 ga washer

4шт.

32

628136R1

SUPPORT, grain tank rear, Serial no. 7277 & below

1шт.

3/8 x 3/4 crg bolt w/nut

1шт.

3/8 lockwasher

1шт.

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

7/8 plain rubber grommet

1шт.

32

937925R1

SUPPORT, grain tank rear, Serial no. 7278 & above

1шт.

3/8 x 3/4 crg bolt w/nut

1шт.

3/8 x 1 crg bolt w/nut

1шт.

5/16 x 3/4 mach bolt w/nut

1шт.

3/8 x 1 mach bolt w/nut

1шт.

5/16 lockwasher

1шт.

3/8 lockwasher

1шт.

Q397

WASHER

11/32 x 3/4 x 16 ga washer

1шт.

33

629487R91

BRACKET W/GUSSET, grain tank LH front support

1шт.

3/8 x 3/4 crg bolt w/nut

6шт.

3/8 x 3/4 cap screw

4шт.

3/8 lockwasher

10шт.

34

629438R11

SUPPORT W/NUT, grain tank bottom

1шт.

5/16 x 3/4 crg bolt w/nut

4шт.

3/8 x 1 crg bolt w/nut

1шт.

3/8 x 1 crg bolt w/nut

1шт.

3/8 x 1 mach bolt w/nut

2шт.

5/16 lockwasher

4шт.

3/8 lockwasher

4шт.

W6652

WASHER

13/32 x 1 x 16 ga washer

2шт.

35

629570R1

BRACE, grain tank LH support

1шт.

3/8 x 3/4 crg bolt w/nut

7шт.

3/8 lockwasher

7шт.

36

629494R1

BRACKET, grank tank LH rear support

1шт.

3/8 x 3/4 crg bolt w/nut

11шт.

3/8 x 1 crg bolt w/nut

1шт.

3/8 lockwasher

12шт.

37

629506R1

FILLER, grain tank LH rear support bracket

1шт.

38

633313R1

SHEET, grain tank bottom filler, Serial no. 2750 & below

1шт.

1/4 x 1/2 crg bolt w/nut

6шт.

1/4 lockwasher

6шт.

615009R1

WASHER

17/64 x 3/4 x 16 ga washer

2шт.

39

NOT USED

1шт.

40

937924R1

SUPPORT, grain tank LH rear, Serial no. 7278 & above

1шт.

41

939279R1

HUB

grain hopper level auger driven pulley, Serial no. 7278 & above

1шт.

5/16 x 1 C-Z mach bolt w/nut

4шт.

102883

SET SCREW

5/16 x 3/4 cup-pt set screw

2шт.

5/16 C-Z lockwasher

4шт.

42

939241R11

PULLEY ASSY.

PULLEY ASSY, grain hopper level auger driven, Serial no. 7278 & above

1шт.

43

939601R1

BRACKET, grain hopper unloader tube front rod, Serial no. 7278 & above

1шт.

3/8 x 3/4 C-Z mach bolt w/nut

2шт.

3/8 C-Z lockwasher

2шт.
