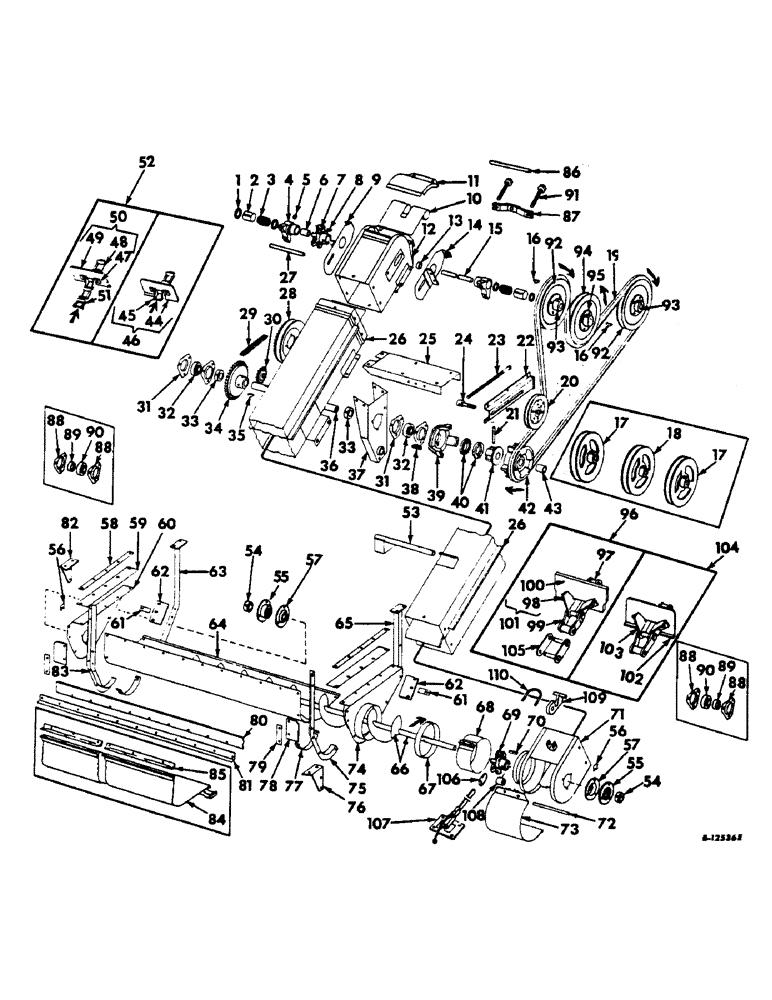

Запчасти Case IH 303 (086) - GRAIN ELEVATOR AND DRIVE CHAIN FLIGHT, STEEL, SPECIAL (80) - CROP STORAGE/UNLOADING

1

631734R91

OIL SEAL

OIL SEAL, bearing box

4шт.

2

631735R1

SLEEVE CYLINDER

RACE, outer

2шт.

3

562708R91

BEARING ASSY,0.875" ID x 1.378" OD x 1.75"

roller

2шт.

4

631704R1

HOUSING

BOX, bearing

2шт.

5/16 x 1/2 cap screw

4шт.

5/16 lockwasher

4шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

6

553855R1

SPACER

elevator headshaft

1шт.

7

1811K

SPROCKET ASSY.

SPROCKET, elevator conveyor chain, 6T

1шт.

1/8 x 3/4 cotter pin

1шт.

Q1329

HEADED PIN,1/4" x 1 3/4"

1/4 x 1-3/4 dld pin

1шт.

8

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

KEY, 1/4 x 1 Woodruff

1шт.

9

631699R91

SUPPORT

BRACKET W/NUT, elevator chain tightener LH

1шт.

5/16 x 6 crg bolt w/nut

1шт.

7/16 nut

2шт.

5/16 lockwasher

2шт.

11/32 x 1 x 16 ga washer

2шт.

10

564459R1

SHIELD

elevator headshaft

1шт.

11

631643R1

DOOR, grain elevator head, Serial no., Serial Range: 501-4803

1шт.

11

564962R91

DOOR, grain elevator head, Serial no. 4804 & above

1шт.

1/4 x 1-1/4 crg bolt

1шт.

935735R1

WING NUT

1/4 wing nut

1шт.

1/4 lockwasher

1шт.

615009R1

WASHER

17/64 x 3/4 x 16 ga washer

1шт.

12

627958R91

HEAD ASSY, grain elevator, Serial no., Serial Range: 501-4803

1шт.

12

936545R92

HEAD ASSY, grain elevator, Serial no., Serial Range: 4804-9427

1шт.

12

153166C91

HEAD ASSY, grain elevator, SErial no. 9428 & above

1шт.

1/4 x 1/2 crg bolt w/nut

4шт.

1/4 lockwasher

4шт.

3/8 nut

1шт.

3/8 lockwasher

1шт.

PO10532

WASHER

13/32 x 1-1/4 x 11 ga washer

1шт.

13

NOT USED

1шт.

14

631700R91

SUPPORT

BRACKET W/NUT, elevator chain tightener RH

1шт.

15

628113R1

SHAFT

HEADSHAFT, grain elevator

1шт.

1/8 x 1-3/4 cotter pin

1шт.

576402R1

29/32 x 1-3/4 x 22 ga washer

2шт.

VC649

WASHER

29/32 x 1-3/4 x 16 ga washer

12шт.

16

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

KEY, 1/4 x 1 Woodruff

2шт.

17

633198R1

SHEAVE, elevator driven, Serial no. 7277 & below

2шт.

5/16 jam nut

2шт.

102883

SET SCREW

5/16 x 3/4 cup-pt set screw

2шт.

18

633199R1

SHEAVE, grain tank distributor auger driven, Serial no. 7277 & below

1шт.

5/16 jam nut

2шт.

102883

SET SCREW

5/16 x 3/4 cup-pt set screw

1шт.

19

937928R1

V-BELT

Elevator drive, Grain machines equipped with grain tank

1шт.

19

150434C1

V-BELT,0.88" W x 166.99" L

Elevator Drive, Rice Machines Equipped With Grain Tank, Also Used on Grain Machines Equipped with Raised Leveling Auger 0.88" W x 166.99" L

1шт.

19

634891R1

V-BELT 0.88" W, Elevator drive, Grain machines equipped with grain tank and grain tank extension and scourkleen attachment, Serial no. 2750 & below 0.88" W

1шт.

19

150433C1

V-BELT,206.49" L

Elevator Drive, Grain Machines Equipped with Grain Tank and Scourkleen Attachment, Grain Machine with Grain Tank Extension and Scourkleen, Serial Nos. 2751 to 7277 206.49" L

1шт.

19

150431C1

BELT, elevator with grain tank rice and scourkleen attachment, Also used on grain machines equipped with raised leveling auger and scourkleen

1шт.

19

150434C1

V-BELT,0.88" W x 166.99" L

Elevator Drive, Grain Machine Equipped with Grain Tank Extension, Serial No. 2750 and Below 0.88" W x 166.99" L

1шт.

19

626589R1

BELT,0.88" W

V-BELT , Elevator drive, Grain machines equipped with grain tank extension, Serial no. 2751 to 7278 0.88" W

1шт.

19

150435C1

BELT

elevator drive, bagger attachment

1шт.

19

152585C1

BELT, elevator drive, grain machines equipped with grain tank extension and scourkleen, Serial no. 7278 & above

1шт.

20

1547242C91

SHEAVE ASSY, elevator drive tightener

1шт.

21

569386R2

DOWEL

PIN, elevator drive slip clutch hub

1шт.

1/8 x 3/4 cotter pin

2шт.

22

629172R91

BRACKET W/ANCHOR, elevator drive belt tightener sheave, For grain tank machines

1шт.

3/8 x 3/4 mach bolt w/nut

6шт.

3/8 lockwasher

6шт.

23

629176R1

BOLT, elevator drive belt tightener sheave adjusting

1шт.

24

629178R1

BOLT, elevator drive belt tightener sheave

1шт.

5/8 nut

1шт.

5/8 lockwasher

1шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga washer

4шт.

25

629168R1

STIFFENER, elevator drive jackshaft outer bearing support

1шт.

3/8 x 3/4 crg bolt w/nut

6шт.

3/8 x 3/4 mach bolt w/nut

4шт.

3/8 lockwasher

10шт.

26

627943R91

HOUSING ASSY, grain elevator

1шт.

5/16 x 1/2 crg bolt w/nut

10шт.

3/8 x 1 crg bolt w/nut

2шт.

5/16 lockwasher

10шт.

Q397

WASHER

11/32 x 1 x 16 ga washer

10шт.

27

654451R1

SPACER, elevator head

1шт.

28

629164R2

SPROCKET ASSY.

SPROCKET AND SHEAVE, elevator jackshaft drive, 38T

1шт.

151629R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

3/8 x 1 cap screw

3шт.

3/8 lockwasher

3шт.

29

CHAIN, elevator jackshaft drive roller, Order 71 links of 5/8 pitch roller chain from a 10 ft. roll marked 1791D and (1) connecting link, 1310D

1шт.

30

565442R91

SPROCKET

ASSY, elevator drive chain tightener

1шт.

1/2 x 2-1/2 crg bolt w/nut

1шт.

1/2 lockwasher

1шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga washer

6шт.

M83536

WASHER

17/32 x 1-1/4 x 11 ga sq-hole washer

1шт.

31

571425R1

FLANGED BEARING

bearing

4шт.

3/8 x 3/4 crg bolt w/nut

6шт.

3/8 lockwasher

6шт.

32

617668R91

BALL BEARING

ball

2шт.

33

557995R11

COLLAR

W/SET SCREW ASSY, locking

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

5/16 x 5/16 cup-pt set screw

2шт.

34

629166R1

SPROCKET ASSY.

SPROCKET, elevator jackshaft driven, 38T

1шт.

5/16 jam nut

2шт.

102883

SET SCREW

5/16 x 3/4 sq-hd cup-pt set screw

1шт.

35

117977

WOODRUFF KEY

KEY, 5/16 x 1 Woodruff

1шт.

36

629167R1

SHAFT

JACKSHAFT, elevator drive

1шт.

3/8 x 1 cap screw

1шт.

3/8 lockwasher

1шт.

Q3830

WASHER

13/32 x 1-1/2 x 11 ga washer

1шт.

37

631653R91

SUPPORT W/HUB, elevator drive jackshaft outer bearing, For grain tank machines

1шт.

38

28395H

SPRING

elevator drive slip clutch

3шт.

39

569880R1

HOLDER, elevator drive slip clutch spring

1шт.

40

U1288

RATCHET

elevator drive slip clutch

2шт.

41

629170R1

HUB

elevator drive slip clutch

1шт.

42

627988R1

SHEAVE, elevator drive, regular

1шт.

42

936394R1

PULLEY, elevator drive, fast speed

1шт.

3/8 x 3-1/4 dld crg bolt

3шт.

425-126

SLOTTED NUT,3/8"-16, G5

3/8 slt-nut

3шт.

3/32 x 3/4 cotter pin

3шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga washer

6шт.

Q1505

WASHER

13/32 x 1 x 16 ga washer

3шт.

43

627736R1

BUSHING

elevator drive slip clutch

1шт.

44

FLIGHT, elevator chain, steel, Order flight assy, 557088R91, ref. no. 46 elevator chain flight special

1шт.

44

FLIGHT, elevator chain, steel, order flight assy, 926451R91, ref. no. 46, elevator chain flight special

1шт.

45

55SE

LINK

attaching, steel, For use with no. 55 steel chain, elevator chain flight special

1шт.

45

62SH-1

LINK, attaching, steel, For use with no. 62 steel chain, elevator chain flight special

1шт.

46

557008R91

CONVEYOR

FLIGHT W/ATTACHING LINK, elevator chain, steel, For use with no. 55 steel chain, elevator chain flight special

1шт.

46

936451R91

FLIGHT W/ATTACHING LINK, elevator chain, steel, For use with no. 62 steel chain, elevator chain flight special

1шт.

47

55SE

LINK

attaching, steel, For use with no. 55 steel chain

1шт.

47

62SH-1

LINK, attaching, steel, For use with no. 62 steel chain, special

1шт.

48

NLS

NO LONGER SERVICED

LINK, plain, steel, For use with no. 55 steel chain

1шт.

48

62

LINK ASSY.

LINK, plain, steel, For use with no. 62 steel chain, special

1шт.

49

564456R1

STEEL FLIGHT

FLIGHT, grain elevator conveyor chain, (25) used not bean special, (4) used bean special, Serial no. 9427 & below, (38) used, Serial no. 9428 & above

1шт.

50

568169R91

CONVEYOR

FLIGHT W/ATTACHING AND PLAIN LINK, grain elevator conveyor chain, (25) used not bean, (15) used bean special, Serial no. 9427 & below, (13) used bean special, Serial no. 9428 & above

1шт.

558430R1

RIVET

5/16 x 19/32 oval-hd tubular rivet

1шт.

50

557008R91

CONVEYOR

FLIGHT W/ATTACHING LINK, grin elevator conveyor chain, steel, bean special, Serial no. 9428 & above

2шт.

104096

RIVET,But Hd, 5/16" x 5/8"

5/16 x 5/8 rd-hd rivet

4шт.

51

55COL

LINK

plain, steel, For use with no. 55 steel chain

1шт.

51

62COL

LINK, plain, steel, For use with no. 62 steel chain, special

1шт.

52

634717R91

CHAIN (AG)

CHAIN W/FLIGHT, grain elevator conveyor, Not bean special

1шт.

52

634748R91

CHAIN W/FLIGHT, grain elevator conveyor, bean special, Serial no. 9428 & above

1шт.

53

628118R91

BRACE W/PIPE, elevator lower, For grain tank machines

1шт.

5/16 x 3/4 crg bolt w/nut

4шт.

5/16 x 1-1/2 mach bolt w/nut

4шт.

5/16 lockwasher

8шт.

54

565618R11

RETAINER

COLLAR W/SET SCREW ASSY, locking

1шт.

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

5/16 x 3/8 cup-pt screw, Serial no. 9427 & below

2шт.

55

565617R91

BALL BEARING

ball, Serial no. 9427 & below

2шт.

56

628535R1

SHIM

auger bearing shield

12шт.

57

589281R1

BRACKET

SHIELD, auger bearing, Serial no. 9427 & below

2шт.

57

589389R1

CYLINDER END CAP

SHIELD, auger bearing, Serial no. 9428 & above

2шт.

5/16 x 3/4 mach bolt w/nut

12шт.

5/16 lockwasher

12шт.

58

564175R1

STRAP, grain auger trough side seal

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

1/4 x 1/2 washer-faced cutting screw

10шт.

59

564174R1

SEAL

grain auger trough side

2шт.

60

564169R1

PLATE, grain auger trough LH

1шт.

1/4 nut

7шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-rd-hd mach screw

6шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-rd-hd mach screw

1шт.

1/4 lockwasher

7шт.

61

NOT USED

1шт.

62

936568R1

SEAL, grain auger trough outer front

1шт.

63

628084R91

SUPPORT W/PLATE, grain auger trough LH front

1шт.

5/16 x 1 crg bolt

2шт.

5/16 lockwasher

2шт.

64

564155R1

TROUGH

grain auger, Not bean special

1шт.

64

567917R1

TROUGH, grain auger, bean special

1шт.

5/16 x 3/4 crg bolt w/nut

2шт.

1/4 nut

17шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-rd-hd mach screw

17шт.

1/4 lockwasher

17шт.

5/16 lockwasher

2шт.

65

628085R91

SUPPORT W/PLATE, grain auger trough RH front

1шт.

5/16 x 1 crg bolt w/nut

2шт.

5/16 lockwasher

2шт.

66

628067R91

AUGER W/SHAFT, grain, Serial no. 9427 & below

1шт.

66

153029C91

AUGER

ASSY, grain, Serial no. 9428 & above

1шт.

PO12898

WASHER

29/32 x 1-1/2 x 11 ga washer

2шт.

68

628069R91

EXTENSION W/TIE, grain auger trough, Not bean special

1шт.

68

628652R91

CLAMP

EXTENSION W/TIE, grain auger trough, bean special

1шт.

1/4 x 1-1/4 mach bolt w/nut

2шт.

1/4 lockwasher

2шт.

69

1811K

SPROCKET ASSY.

SPROCKET, elevator conveyor chain, 6T

1шт.

1/8 x 3/4 cotter pin

1шт.

Q3515

HEADED PIN,1/4" x 1 5/8"

1/4 x 1-5/8 dld pin

1шт.

70

Q10

KEY,1/4" Sq x 1 3/8"

1/4 x 1/4 x 1-3/8 straight

1шт.

71

570248R91

BOOT W/HINGE, grain elevator, grain, Serial no. 9427 & below

1шт.

71

570245R91

BOOT W/HINGE, grain elevator, rice, Serial no. 9427 & below

1шт.

71

153004C91

BOOT ASSY, grain elevator, grain, windrow special and bean, Serial no., Serial Range: 9428-11764

1шт.

71

157144C91

BOOT ASSY, grain elevator, grain windrow special and bean, Serial no. 11764 & above

1шт.

71

153005C91

BOOT ASSY, grain elevator, rice, Serial no., Serial Range: 9428-11764

1шт.

71

156044C91

BOOT ASSY, grain elevator, rice, Serial no. 11764 & above

1шт.

1/4 x 1-1/4 crg bolt w/nut

1шт.

935735R1

WING NUT

1/4 wing nut

1шт.

1/4 lockwasher

1шт.

615009R1

WASHER

17/64 x 3/4 x 16 ga washer

1шт.

72

564457R1

PIN, elevator boot door hinge, grain

1шт.

72

569365R1

PIN, elevator boot door hinge, rice

1шт.

73

564963R91

DOOR

W/CLIP, elevator boot, grain, Serial no. 9427 & below

1шт.

73

568969R91

DOOR W/CLIP, elevator boot, rice, Serial no. 9427 & below

1шт.

73

567918R91

DOOR W/CLIP, elevator boot, bean, Serial no. 9427 & below

1шт.

73

152786C91

DOOR ASSY, elevator boot, grain and windrow special, Serial no., Serial Range: 9428-11764

1шт.

73

156236C1

DOOR, elevator boot, grain and windrow special, Serial no. 11764 & above

1шт.

73

153000C91

DOOR ASSY, elevator boot, rice, Serial no., Serial Range: 9428-11764

1шт.

73

157146C1

DOOR, elevator boot, rice, Serial no. 11764 & above

1шт.

73

153002C91

DOOR ASSY, elevator boot, bean, Serial no., Serial Range: 9428-11764

1шт.

73

157169C1

DOOR, elevator boot, bean, Serial no. 11764 & above

1шт.

1/4 x 1-1/4 crg bolt

1шт.

935735R1

WING NUT

1/4 wing nut

1шт.

1/4 lockwasher

1шт.

615009R1

WASHER

17/64 x 3/4 x 16 ga washer

2шт.

74

564156R91

PLATE W/FLANGE, grain auger trough RH

1шт.

1/4 nut

7шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-rd-mach screw

6шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-rd-hd mach screw

1шт.

1/4 lockwasher

7шт.

75

628121R1

SUPPORT, grain auger trough rear RH

1шт.

5/16 x 1 mach bolt w/nut

2шт.

5/16 lockwasher

3шт.

76

628639R1

BRACKET, grain auger trough RH rear

1шт.

3/8 x 1 crg bolt w/nut

2шт.

3/8 lockwasher

2шт.

77

568328R1

BAR

SEAL, auger trough bottom

2шт.

78

564176R1

SEAL

grain auger trough side rear

2шт.

79

564177R1

STRAP, grain auger trough side rear seal

2шт.

1/4 nut

4шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-rd-hd mach screw

4шт.

1/4 lockwasher

4шт.

615009R1

WASHER

17/64 x 3/4 x 16 ga washer

4шт.

80

564172R1

SEAL, grain auger trough rear

1шт.

81

564173R1

ANGLE, grain auger trough rear seal

1шт.

82

628638R1

BRACKET, grain auger trough LH rear

1шт.

3/8 x 1 crg bolt w/nut

2шт.

3/8 lockwasher

2шт.

83

628120R1

SUPPORT, grain auger trough rear LH

1шт.

5/16 x 1 mach bolt w/nut

2шт.

5/16 lockwasher

2шт.

84

569954R91

COVER W/PLATE, grain auger trough, bean special

1шт.

85

569959R1

ANGLE, grain auger trough rear cross, bean special

1шт.

5/16 x 3/4 mach bolt w/nut

1шт.

5/16 lockwasher

1шт.

86

564458R1

PIN, grain elevator head door hinge, Serial no. 4804 & above

1шт.

87

936546R1

STRAP, grain elevator conveyor chain tightener bolt, Serial no. 4804 & above

1шт.

88

571424R1

FLANGE

grain auger bearing, Serial no. 9428 & above

4шт.

5/16 x 3/4 crg bolt w/nut

6шт.

5/16 lockwasher

6шт.

89

658006R11

COLLAR

W/SET SCREW ASSY, locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 x 1/4 cup-pt set screw, Serial no. 9428 & above

2шт.

90

564991R91

BEARING

ball, Serial no. 9428 & above

2шт.

91

611421R1

BOLT,Hex, 7/16" - 14 x 3 1/2", Full Thd

elevator conveyor chain tightener

2шт.

7/16 C-Z nut

2шт.

92

939241R11

PULLEY ASSY.

PULLEY ASSY, elevator driven, Serial no. 7278 & above

1шт.

93

939278R1

HUB

elevator driven pulley, Serial no. 7278 & above

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z mach bolt w/nut

4шт.

114502

JAM NUT,Jam, 5/16"-18, G5

4шт.

102883

SET SCREW

5/16 x 3/4 cup-pt set screw

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

94

939241R11

PULLEY ASSY.

PULLEY ASSY, grain hopper leveling auger driven, Serial no. 7278 & above

1шт.

95

939279R1

HUB

grain hopper leveling auger driven pulley, Serial no. 7278 & above

1шт.

96

NOT USED

1шт.

97

NOT USED

1шт.

98

NOT USED

1шт.

99

NOT USED

1шт.

100

NOT USED

1шт.

101

NOT USED

1шт.

102

NOT USED

1шт.

103

NOT USED

1шт.

104

NOT USED

1шт.

105

NOT USED

1шт.

106

152792C1

GRIP, elevator boot door clamp, Serial no. 9428 & above

1шт.

107

152789C91

CLAMP ASSY, elevator boot door, Serial no. 9428 & above

1шт.

1/4 x 1/2 C-Z crg bolt w/nut

4шт.

1/4 C-Z lockwasher

4шт.

108

584964R1

SPACER,1 1/8" Tube x 3/4"

grain auger shaft, Serial no. 9428 & above

1шт.

109

155909C1

LATCH

elevator boot door, Serial no. 11764 & above

1шт.

Q3512

HEADED PIN,1/4" x .859"

PIN, 1/4 x 1 std hd dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

110

664360R1

BOLT,U, 1/4" - 20 x 69.65"

elevator boot door U, Serial no. 11764 & above

1шт.

20244R1

LOCK NUT,1/4"-20

NUT, 1/4 hex w/nylon insert

2шт.
