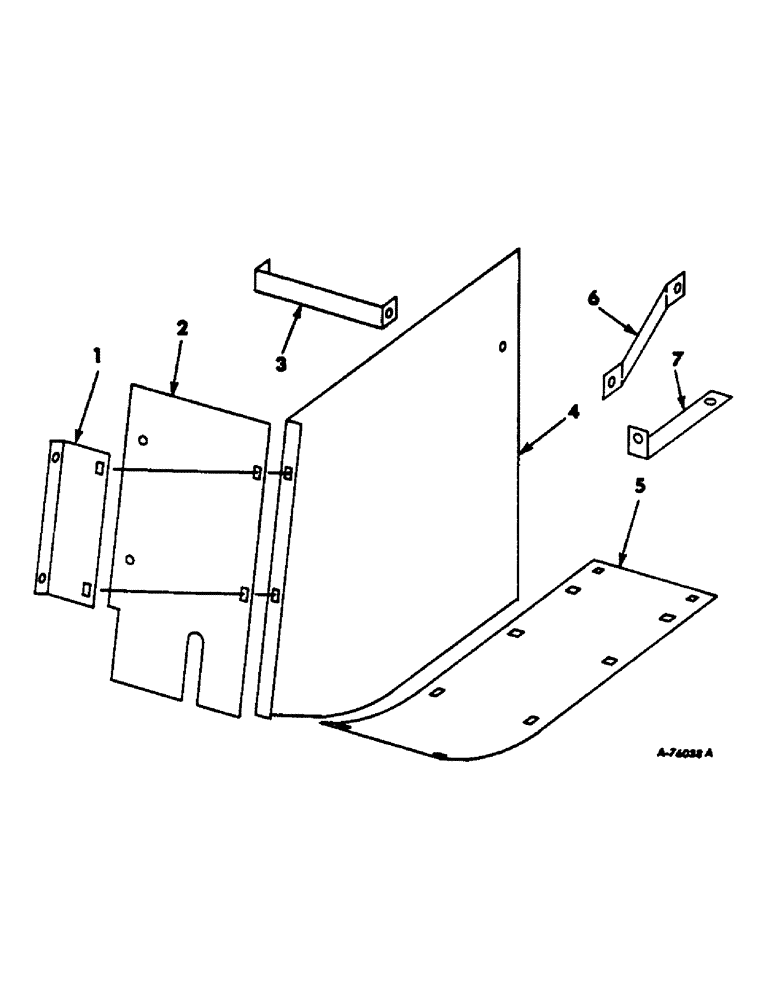

Запчасти Case IH 303 (258) - FAN SHIELD ATTACHMENTS, FOR USE WITH FAN BOTTOM SHIELD (74) - CLEANING

1

937253R1

STRIP, fan shield

2шт.

2

937254R1

STRIP, fan LH front shield

1шт.

2

937255R1

STRIP, fan RH front shield

1шт.

5/16 x 3/4 cd-pltd lockwasher

2шт.

3

937259R1

CHANNEL, fan shield LH

1шт.

3

937260R1

CHANNEL, fan shield RH

1шт.

5/16 x 3/4 cd-pltd mach bolt w/nut

2шт.

5/16 cd-pltd lockwasher

2шт.

4

937263R1

SHIELD, fan side LH

1шт.

4

937264R1

SHIELD, fan side RH

1шт.

5/16 x 3/4 cd-pltd crg bolt w/nut

4шт.

5/16 x 3/4 cd-pltd mach bolt w/nut

2шт.

5/16 cd-pltd lockwasher

6шт.

5

937265R1

STRAP, fan bottom shield extension

2шт.

6

154742C1

BRACE, fan shield stiffener LH

1шт.

5/16 x 3/4 C-Z mach bolt w/nut

1шт.

5/16 C-Z lockwasher

1шт.

7

154754C1

SUPPORT, fan shield stiffener RH

1шт.

5/16 x 3/4 C-Z mach bolt w/nut

1шт.

5/16 C-Z lockwasher

1шт.
