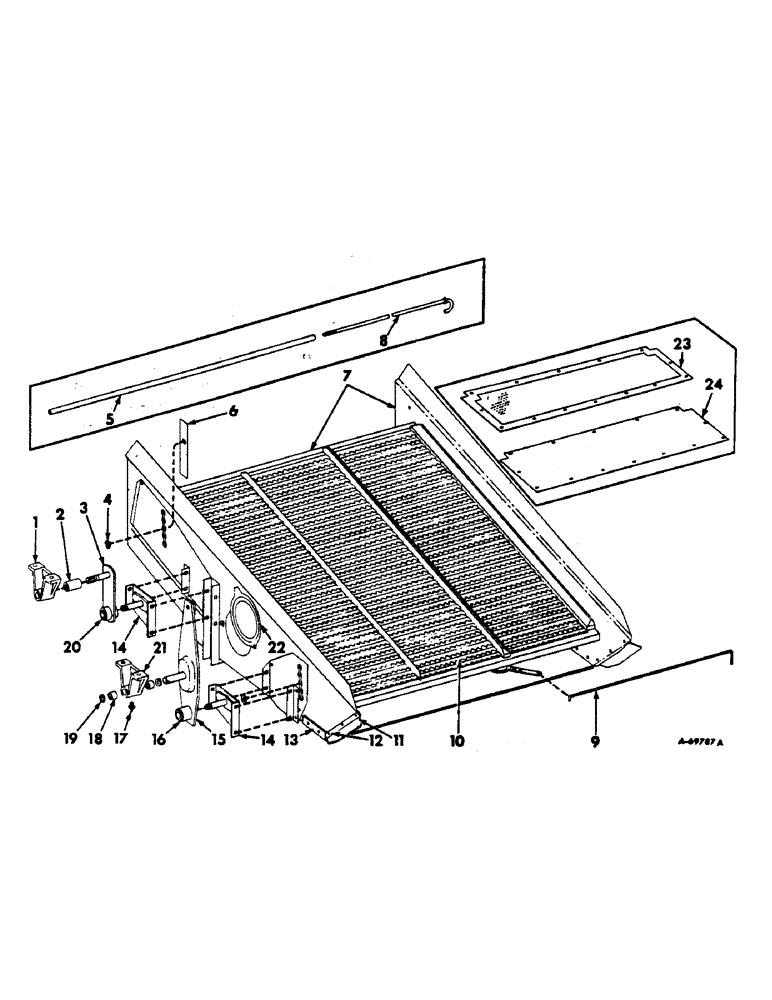

Запчасти Case IH 303 (084) - SHOE, SHOE SIEVE (74) - CLEANING

1

627717R11

BRACKET W/BUSHING ASSY, shoe hanger front, Includes ref. no. 2

2шт.

3/8 x 1-1/4 crg bolt w/nut

4шт.

3/8 lockwasher

4шт.

2

627719R91

COMPOSITE RING

BUSHING ASSY, hanger bracket

2шт.

3

627720R91

CLAMP

ARM W/BUSHING ASSY, shoe front hanger, Includes ref. no. 20

2шт.

5/8 nut

2шт.

5/8 lockwasher

2шт.

578274R1

WASHER

21/32 x 1 x 11 ga washer

2шт.

4

569946R1

WASHER

shoe sieve adjusting

4шт.

5

NOT USED

1шт.

6

564207R1

BAR

SEAL, shoe sieve

4шт.

7

564180R91

SHOE W/DOOR, seal and strip assy, Not bean special, Includes ref. nos. 11, 12, 13 and 22

1шт.

7

574099R91

SHOE W/DOOR, seal and strip assy, bean special, Includes ref. nos. 11, 12, 13 and 22

1шт.

557109R1

WASHER

17/64 x 1/2 x 16 ga washer

2шт.

8

NOT USED

1шт.

9

18974K

ROD

shoe sieve adjusting

1шт.

1/8 x 1 cotter pin

1шт.

10

564246R93

SIEVE ASSY, shoe

1шт.

5/16 x 3/4 crg bolt w/nut

4шт.

5/16 lockwasher

4шт.

11

564205R1

SEAL

side rear

2шт.

12

564206R1

STRIP, rear seal

2шт.

13

564196R1

SEAL, lower rear

2шт.

14

631478R91

HANGER

W/STUD, shoe lower LH

2шт.

14

631479R91

SUSPENSION BLOCK

HANGER W/STUD, shoe lower RH

2шт.

5/16 x 3/4 crg bolt w/nut

16шт.

5/8 nut

4шт.

5/16 lockwasher

16шт.

21/32 x 1-1/4 x 11 ga washer

4шт.

15

627565R91

ARM

W/BUSHING ASSY, grain pan and shoe rear hanger, Includes ref. no. 16

2шт.

3/16 x 1-1/4 cotter pin

1шт.

23/32 x 1 x 16 ga washer

4шт.

16

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, hanger arm hub

2шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication

2шт.

18

629631R91

NEEDLE BEARING

BEARING, needle

4шт.

19

629632R91

RETAINER

OIL SEAL, shoe rear hanger

4шт.

20

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, arm hub

2шт.

21

629644R1

BRACKET

shoe hanger rear

2шт.

3/8 x 1-1/4 crg bolt w/nut

4шт.

3/8 lockwasher

4шт.

22

551104R1

FLAP

DOOR, shoe inspection

2шт.

23

567923R1

SCREEN, shoe bottom, bean special

1шт.

No. 10 sq nut

1шт.

No. 10 x 1/2 slt-rd-hd mach screw

1шт.

No. 10 lockwasher

1шт.

615002R1

WASHER

13/64 x 1/2 x 16 ga washer

1шт.

24

567922R1

COVER, shoe bottom, bean special

1шт.
