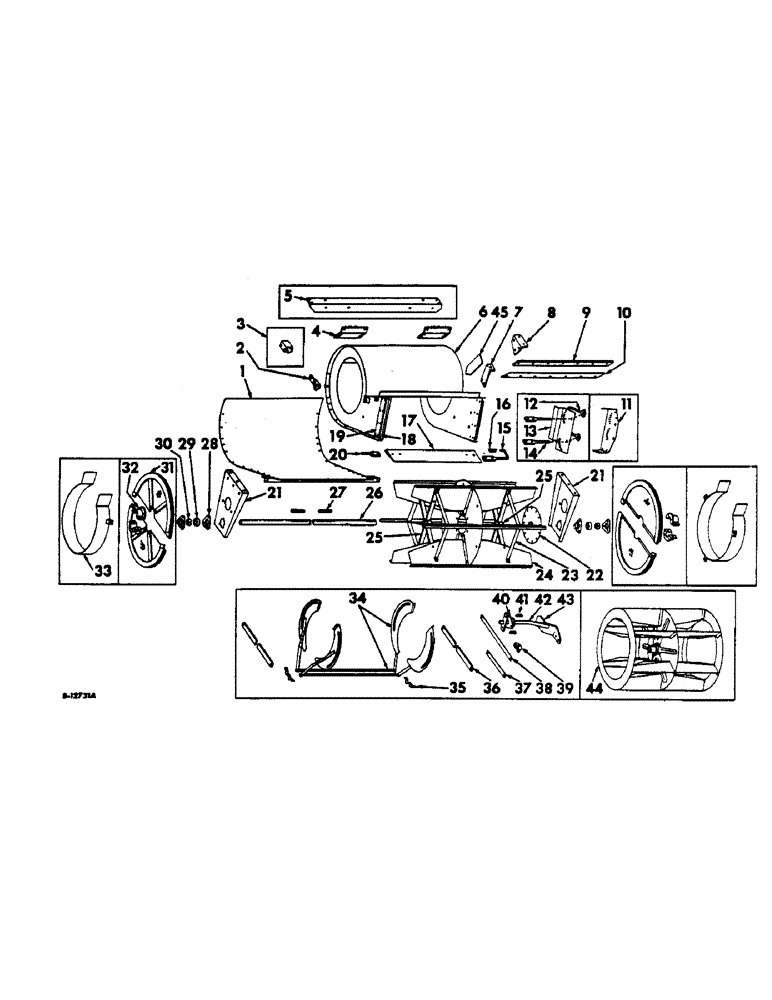

Запчасти Case IH 303 (081) - FAN AND FAN HOUSING, SEPARATOR FAN ROTARY SCREEN ATTACHMENT (74) - CLEANING

1

564226R91

WRAPPER W/STIFFENER, fan housing lower

1шт.

1/4 nut

1шт.

1/4 x 1/2 slt-rd-hd mach screw

4шт.

1/4 lockwasher

1шт.

2

629433R1

SUPPORT, fan housing LH rear

1шт.

7/16 x 1 crg bolt w/nut

1шт.

7/16 lockwasher

1шт.

3

NOT USED

1шт.

4

629434R1

BRACKET, fan housing front support

2шт.

3/8 x 3/4 mach bolt w/nut

4шт.

3/8 lockwasher

4шт.

5

NOT USED

1шт.

6

155687C91

HOUSING

W/SIDES, fan, Includes ref. nos. 18 and 45

1шт.

551646R1

13 ga x 7/8 nail

1шт.

5/16 x 1/2 crg bolt w/nut

1шт.

5/16 x 3/4 crg bolt w/nut

1шт.

1/4 nut

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-rd-hd mach screw

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-rd-hd mach screw

1шт.

1/4 lockwasher

1шт.

5/16 lockwasher

1шт.

136661H

WASHER

17/64 x 1 x 16 ga washer

1шт.

7

629909R1

SUPPORT, fan housing rt rear

1шт.

7/16 x 1 crg bolt w/nut

1шт.

7/16 lockwasher

1шт.

8

629910R1

BRACKET, housing rear rt support

1шт.

3/8 x 1 crg bolt w/nut

2шт.

3/8 lockwasher

2шт.

13/32 x 3/4 x 16 ga washer

2шт.

9

564243R1

SUPPORT, center seal

2шт.

1/4 nut

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-rd-hd mach screw

1шт.

1/4 lockwasher

1шт.

10

155690C1

SEAL, grain pan center

1шт.

11

564220R1

QUADRANT, wind regulator control

1шт.

5/16 x 3/4 crg bolt w/nut

2шт.

1/4 nut

5шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-rd-hd mach screw

5шт.

1/4 lockwasher

5шт.

5/16 lockwasher

5шт.

12

NOT USED

1шт.

13

NOT USED

1шт.

14

NOT USED

1шт.

15

565473R1

ROD, deflector blade RH, (2) used regular, (1) used windrow special

1шт.

1/4 nut

2шт.

1/8 x 1 cotter pin

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-rd-hd mach screw

1шт.

1/4 lockwasher

1шт.

13/32 x 1 x 16 ga washer

2шт.

16

388

SPRING, deflector rod, (2) used regular, (1) used windrow special

1шт.

17

587505R1

DEFLECTOR, fan wind, (2) used regular, (1) used windrow special w/2 fan wind deflectors

1шт.

17

564215R1

DEFLECTOR, fan wind, windrow special

1шт.

18

155681C1

SPACER, rear seal

2шт.

1/8 x 15/16 flat hd rivet

16шт.

19

936564R1

SEAL, rear, Serial no. 9427 & below

2шт.

20

565474R1

ROD

deflector blade LH, (2) used regular, (1) used windrow special

1шт.

1/4 nut

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-rd-hd mach screw

1шт.

1/4 lockwasher

1шт.

21

628126R1

BRACKET, fan shaft bearing, LH

1шт.

21

628127R1

BRACKET, fan shaft bearing, RH

1шт.

5/16 x 3/4 crg bolt w/nut

4шт.

3/8 x 3/4 crg bolt w/nut

6шт.

1/2 x 1 crg bolt w/nut

6шт.

5/16 lockwasher

4шт.

3/8 lockwasher

6шт.

1/2 lockwasher

6шт.

11/32 x 1 x 16 ga washer

4шт.

22

NOT USED

1шт.

23

NOT USED

1шт.

24

NOT USED

1шт.

25

NOT USED

1шт.

26

564214R11

SHAFT W/KEY, fan

1шт.

27

NOT USED

1шт.

28

571424R1

FLANGE

bearing

4шт.

29

455101R91

BEARING

ball

2шт.

30

455102R11

COLLAR

W/SET SCREW ASSY, locking rt

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 x 1/4 cup-pt set screw

1шт.

31

632806R91

DEFLECTOR

SCREEN W/RIM, fan half, separator fan rotary screen att

4шт.

5/16 x 1/2 mach bolt

8шт.

5/16 lockwasher

8шт.

32

632803R1

HUB, rotary screen half, separator fan rotary screen att

4шт.

5/16 x 1-1/2 mach bolt w/nut

4шт.

5/16 lockwasher

4шт.

33

NOT USED

1шт.

34

564230R91

REGULATOR W/ROD AND STRAP, wind, See note

2шт.

35

14688K

STRAP, regulator rod upper, regular not windrow special, Serial no. 501 to 2750, regular and windrow special, Serial no. 2751 & above

2шт.

36

568344R1

GUIDE, regulator, See note

2шт.

1/4 x 3/4 sltd-rd-hd mach screw

4шт.

1/4 hex nut

4шт.

1/4 lockwasher

4шт.

Q399

WASHER

11/32 x 1 x 16 ga washer

12шт.

37

632713R1

STRAP, connecting rear, See note

1шт.

1/8 x 3/4 cotter pin

4шт.

33453A

5/16 x 1/2 dld pin

4шт.

Q397

WASHER

11/32 x 3/4 x 16 ga washer

4шт.

38

632712R1

STRAP, connecting front, See note

1шт.

39

632711R1

SUPPORT, regulator lever inner, See note

1шт.

1/4 nut

2шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-rd-hd mach screw

2шт.

1/4 lockwasher

2шт.

40

633372R1

PLATE, regulator tension, See note

1шт.

41

22603VA

SPRING, regulator lever, See note

2шт.

42

632714R91

LEVER W/PLATE AND WASHER, regulator, See note

1шт.

43

632710R1

SUPPORT, wind regulator lower, See note

1шт.

5/16 x 1-3/4 crg bolt w/nut

2шт.

3/8 x 3/4 crg bolt w/nut

2шт.

5/16 lockwasher

2шт.

3/8 lockwasher

2шт.

11/32 x 1 x 16 ga washer

4шт.

44

564208R91

FAN W/BLADE ASSY

1шт.

5/16 x 2-1/2 mach bolt w/nut

4шт.

5/16 jam nut

1шт.

102885

SET SCREW

5/16 x 1 sq-hd cup-pt set screw

1шт.

5/16 lockwasher

4шт.

45

155678C1

SEAL

grain pan and shoe side

2шт.

13 ga x 7/8 nail, Serial no. 9428 & above

1шт.
