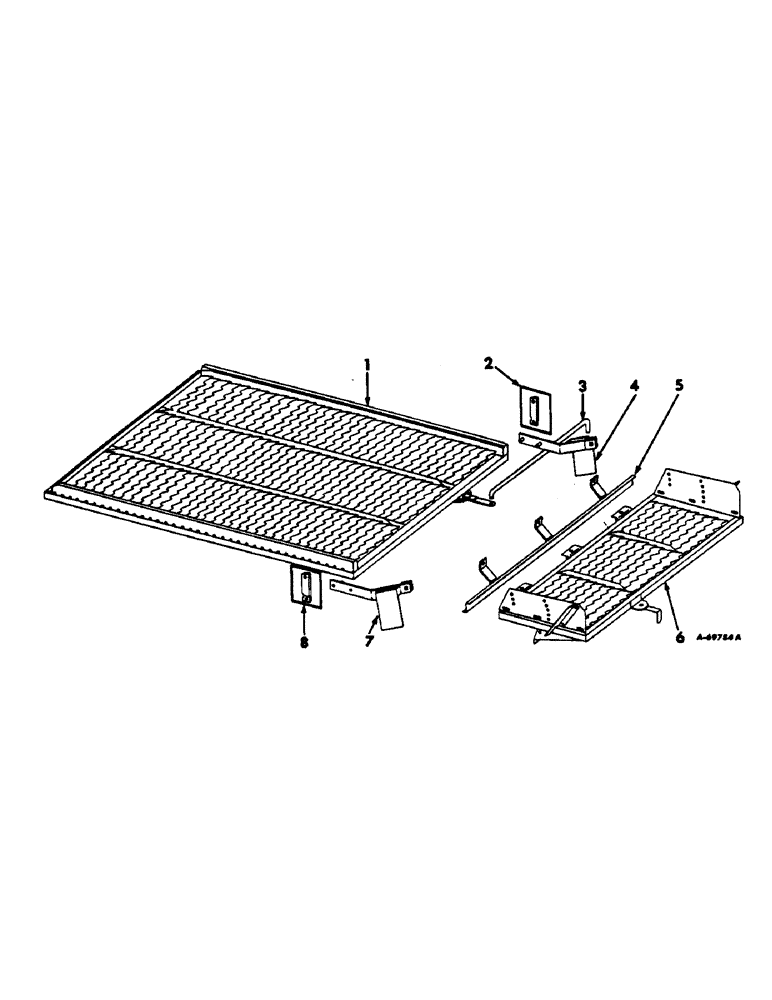

Запчасти Case IH 303 (080) - CHAFFER SIEVE AND EXTENSION (74) - CLEANING

1

564293R93

SIEVE ASSY, chaffer, regular

1шт.

1

574563R92

SIEVE ASSY, chaffer, Peterson type

1шт.

1

936021R92

SIEVE ASSY, chaffer, 1-5/8, For corn and maize

1шт.

1

936256R92

SIEVE ASSY, chaffer, 1-5/8, For corn

1шт.

1

588398R91

SIEVE ASSY, chaffer, 7/16 x 15/16 slot

1шт.

2

632729R1

BOARD

BLOCK, chaffer sieve seal RH

1шт.

5/16 x 3/4 crg bolt w/nut

1шт.

3/8 x 1-1/4 crg bolt w/nut

1шт.

5/16 lockwasher

1шт.

3/8 lockwasher

1шт.

3

18974K

ROD

chaffer sieve adjusting

1шт.

1/8 x 1 cot pin

1шт.

4

627835R93

BRACKET W/PAD, chaffer sieve adjusting RH

1шт.

5/16 x 1 crg bolt w/nut

2шт.

3/8 x 3/4 mach bolt w/nut

1шт.

5/16 lockwasher

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

13/32 x 1 x 16 ga washer

1шт.

5

565399R91

DEFLECTOR W/BRACKET CHAFFER SIEVE BLAST

1шт.

6

631506R93

SIEVE ASSY, chaffer extension, regular

1шт.

6

155646C91

SIEVE ASSY, chaffer extension, 1-5/8, For corn

1шт.

1/4 nut

6шт.

442809

1/4 hug locknut

2шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-rd-hd screw

6шт.

113959

SCREW,Sl Rnd Hd, 1/4" - 20 x 1"

1/4 x 1 slt-rd-hd screw

2шт.

1/4 lockwasher

6шт.

615009R1

WASHER

17/64 x 3/4 x 16 ga washer

6шт.

7

627834R93

SUPPORT

BRACKET W/PAD, chaffer sieve adjusting LH

1шт.

5/16 x 1 crg bolt w/nut

2шт.

3/8 x 3/4 mach bolt w/nut

1шт.

5/16 lockwasher

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

13/32 x 1 x 16 ga washer

1шт.

8

632728R1

BLOCK

chaffer sieve seal LH

1шт.

5/16 x 3/4 crg bolt w/nut

1шт.

3/8 x 1-1/4 crg bolt w/nut

1шт.

5/16 lockwasher

1шт.

3/8 lockwasher

1шт.
