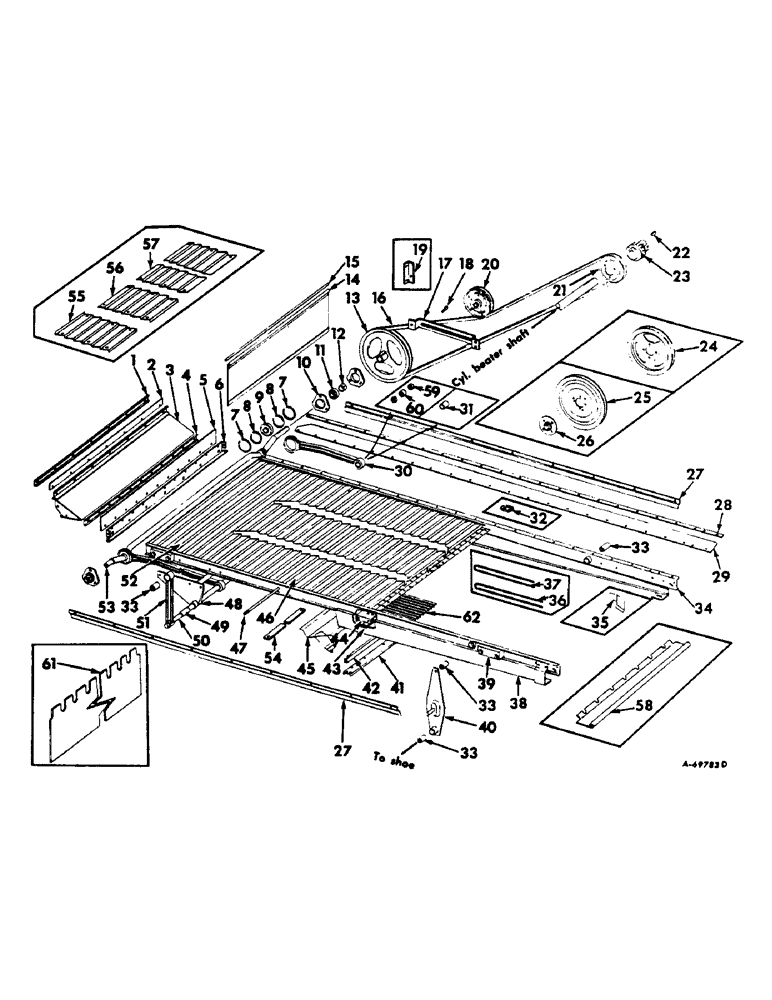

Запчасти Case IH 303 (077) - GRAIN PAN AND SHAKER SHAFT DRIVE, FAST SPEED SHAKER SHAFT DRIVE ATTACHMENT (74) - CLEANING

1

564037R1

STRIP, front plate seal

1шт.

1/4 nut

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-rd-hd mach screw

1шт.

1/4 lockwasher

1шт.

615009R1

WASHER

17/32 x 3/4 x 16 ga washer

1шт.

2

564036R1

SEAL

grain pan front plate, Not windrow special

1шт.

2

634230R1

SEAL, grain pan front plate, For windrow special

1шт.

3

564118R91

PLATE W/SUPPORT, grain pan front seal, Not bean special

1шт.

5/16 x 3/4 crg bolt w/nut

1шт.

5/16 x 1/2 mach bolt

2шт.

5/16 x 1 mach bolt w/nut

1шт.

5/16 lockwasher

4шт.

4

564131R1

STRAP, front seal

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-rd-hd mach screw

1шт.

445117

DIODE

1/4 spring nut

1шт.

5

564130R1

SEAL

pan front

1шт.

6

629639R1

TIE, pan front cross

1шт.

7

359894R1

RING, SNAP

SNAP RING, Shaker shaft Pitman bearing external

4шт.

8

UA20551

RING

SNAP RING, Shaker shaft Pitman bearing internal

4шт.

9

554553R91

BALL BEARING,45mm ID x 75mm OD x 16mm W

ball

2шт.

10

571424R1

FLANGE

Shaker shaft bearing

4шт.

11

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ball

2шт.

12

455102R11

COLLAR

W/SET SCREW ASSY, locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 x 1/4 cup-pt set screw

2шт.

13

NOT USED

1шт.

14

565470R21

FLAP

separator grian pan check

1шт.

15

UA12470

ROD, separator check flap

1шт.

1/8 x 3/4 cot pin

2шт.

16

13988K

V-BELT,115.23" L

Shaker Shaft Drive, Not Bean Special 115.23" L

1шт.

16

553079R1

V-BELT,0.66" W

Shaker shaft drive, Bean special 0.66" W

1шт.

16

561093R1

V-BELT,0.63" W

Shaker shaft drive, Fast speed, Shaker shaft driven sheave attachment 0.63" W

1шт.

17

627701R1

SUPPORT, Shaker shaft drive belt tightener sheave

1шт.

5/16 x 1 crg bolt w/nut

2шт.

3/8 x 1 crg bolt w/nut

1шт.

5/16 lockwasher

2шт.

3/8 lockwasher

1шт.

18

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 5/16 x 2 gib

1шт.

19

632924R1

ANCHOR, Shaker shaft drive belt tightener sheave support

1шт.

20

566519R91

PULLEY

SHEAVE, drive belt tightener

1шт.

1/2 x 2-1/2 crg bolt w/nut

1шт.

1/2 lockwasher

1шт.

17/32 x 1 x 16 ga washer

1шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga washer

1шт.

Q303

17/32 x 1-1/2 x 11 ga sq-hole washer

1шт.

21

564497R1

SHEAVE, Shaker shaft drive

1шт.

3/8 x 1 cap screw

4шт.

3/8 lockwasher

4шт.

22

163446C1

KEY

3/8 x 2-1/2 str-hardened

1шт.

23

629718R2

HUB CAP

HUB, fan and straw rack drive sheave

1шт.

24

628503R1

SHEAVE, Shaker shaft driven, fast speed Shaker shaft driven sheave attachment

1шт.

5/16 x 1-1/4 mach bolt w/nut

4шт.

5/16 lockwasher

4шт.

25

564569R11

PULLEY ASSY.

SHEAVE ASSY, Shaker shaft driven, Not bean special

1шт.

25

553412R91

SHEAVE ASSY, Shaker shaft driven, bean special

1шт.

26

564695R1

HUB, driven sheave, Not bean special

1шт.

5/16 x 1 mach bolt w/nut

4шт.

5/16 lockwasher

4шт.

26

568928R1

HUB, driven sheave, bean special

1шт.

3/8 x 1-1/4 mach bolt w/nut

4шт.

3/8 lockwasher

4шт.

27

627773R11

STRIP

W/BOLT, grain pan seal cover

2шт.

1/4 nut

18шт.

1/4 lockwasher

18шт.

28

568248R1

BAR

STRAP, side rail seal

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

1/4 x 1/2 self-tapping screw

46шт.

29

564132R1

SEAL

pan side rail

2шт.

30

568478R11

PITMAN W/BUSHING ASSY, Shaker shaft, Includes ref. no. 31, Serial no. 7277 & below

2шт.

30

150830C11

PITMAN

ASSY, Shaker shaft, Includes ref. nos. 59 and 60, Serial no. 7278 & above

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 deg lubrication

1шт.

31

568479R1

BUSHING

Pitman, Serial no. 7277 & below

2шт.

32

632690R1

CLAMP, grain pan finger

15шт.

33

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

6шт.

34

629579R92

SUPPORT

RAIL W/BUSHING ASSY, right side, Includes ref. nos. 33

1шт.

1/4 x 1/2 crg bolt w/nut

1шт.

3/8 x 1 crg bolt w/nut

1шт.

589741R1

3/8 x 1-1/4 bolt

3шт.

3/8 x 1-3/4 crg bolt w/nut

4шт.

3/8 nut

6шт.

5/8 - 18UNF x 2-1/2 cap screw

1шт.

3/8 lockwasher

4шт.

3/8 internal tooth lockwasher

3шт.

5/8 lockwasher

1шт.

13/32 x 1 x 16 ga washer

5шт.

21/32 x 1-1/4 x 11 ga washer

1шт.

35

564108R1

DEFLECTOR

grain pan LH

2шт.

35

564109R1

DEFLECTOR

grain pan RH, Serial no. 7277 & below, regular, Serial no. 7278 & above, special

2шт.

36

632688R1

FINGER

long, Serial no. 11763 & below

5шт.

37

632689R1

FINGER

short, Serial no. 11763 & below

10шт.

38

629578R92

RAIL W/BUSHING ASSY, LH side, Includes ref. no. 33

1шт.

1/4 x 1/2 crg bolt w/nut

1шт.

3/8 x 1 crg bolt w/nut

1шт.

589741R1

3/8 x 1-1/4 bolt

3шт.

3/8 x 1-3/4 crg bolt w/nut

4шт.

3/8 nut

6шт.

5/8 - 18UNF x 2-1/2 cap screw

1шт.

3/8 lockwasher

4шт.

3/8 internal tooth lockwasher

3шт.

5/8 lockwasher

1шт.

13/32 x 1 x 16 ga washer

5шт.

21/32 x 1-1/4 x 11 ga wsher

1шт.

39

552883R2

STOP

BLOCK, grain pan

4шт.

40

627565R91

ARM

W/BUSHING ASSY, grain pan shoe rear hanger, Includes ref. no. 33

2шт.

3/16 x 1-1/4 cotter pin

2шт.

23/32 x 1 x 16 ga washer

8шт.

41

NOT USED

1шт.

42

564129R1

STOP, grain pan sieve front

1шт.

3/16 x 3/8 wagon box rivet

1шт.

3/16 x 1/2 b-hd rivet

1шт.

43

632693R1

STIFFENER, finger support

1шт.

44

632691R1

SUPPORT, finger

1шт.

1/4 x 1/2 mach bolt w/nut

1шт.

1/4 x 1 mach bolt w/nut

1шт.

5/16 x 1/2 mach bolt w/nut

1шт.

5/16 x 3/4 mach bolt w/nut

1шт.

1/4 lockwasher

1шт.

5/16 lockwasher

1шт.

45

631192R91

PLATE W/NUT, grain pan center seal

1шт.

5/16 x 1/2 mach bolt w/nut

1шт.

5/16 x 3/4 mach bolt w/nut

1шт.

5/16 lockwasher

1шт.

46

629643R91

PAN, grain, Includes ref. nos. 4, 5, 6, 28, 29, 32, 33, 34, 36, 37, 38, 39, 42, 43, 44, 45, 47, 48, 49 and 52, Serial no., Serial Range: 501-4803

1шт.

46

654587R91

PAN, grain, Includes ref. nos. 4, 5, 6, 28, 29, 32, 33, 34, 36, 37, 38, 39, 42, 43, 44, 45, 47, 48, 49 and 52, Serial no. 4804 and 52, Serial no., Serial Range: 4804-11763

1шт.

46

155973C91

PAN ASSY, grain, Includes ref. nos. 4, 5, 6, 28, 29, 33, 34, 36, 37, 38, 39, 42, 44, 45, 47, 48, 49 and 52, Serial no. 11764 & above

1шт.

47

568284R1

ROD, cross tie

1шт.

1/4 nut

2шт.

1/4 lockwasher

2шт.

48

628707R91

SUPPORT W/BUSHING ASSY, grain pan front, Includes ref. no. 49, Serial no., Serial Range: 501-4803

1шт.

48

654550R91

SUPPORT W/BUSHING ASSY, grain pan front, Includes ref. no. 49, Serial no. 4804 & above

1шт.

16964R91

FITTING

1/4 90 deg lubrication

1шт.

49

584150R1

BUSHING

Serial no., Serial Range: 501-4803

2шт.

49

559154R1

BUSHING,25.45mm ID x 28.6mm OD x 25.4mm L

Serial no. 4804 & above

2шт.

50

628135R1

SHAFT, grain pan

1шт.

520175R1

CLIP

3/16 x 2-1/4 quick attachable cotter pin

2шт.

1-1/32 x 2 x 16 ga washer

2шт.

51

627551R91

ARM W/BUSHING, grain pan, Includes ref. no. 33, Serial no. 11763 & below

2шт.

51

156063C11

ARM

ASSY, grain pan front hanger, Includes ref. no. 33, Serial no. 11764 & above

2шт.

5/8 x 3 mach bolt w/nut

2шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

2шт.

5/8 lockwasher

1шт.

21/32 x 1-1/4 x 11 ga washer

2шт.

52

632695R91

BOTTOM

W/DIVIDER, grain pan, Not bean special

1шт.

52

632972R91

BOTTOM W/DIVIDER, grain pan, bean special

1шт.

1/4 x 1 mach bolt w/nut

1шт.

1/4 lockwasher

1шт.

53

564473R1

SHAFT, Shaker

1шт.

54

NOT USED

1шт.

55

632968R1

COVER, grain pan bottom rear LH, bean special

1шт.

55

632969R1

COVER, grain pan bottom rear RH, bean special

1шт.

1/4 x 1/2 mach bolt

12шт.

NLS

NO LONGER SERVICED

1/4 spring nut

6шт.

56

570683R1

COVER, grain pan bottom rear center, bean special

1шт.

1/4 x 1/2 mach bolt

6шт.

445117

DIODE

1/4 spring nut

6шт.

57

569961R1

COVER, grain bottom front, bean special

1шт.

1/4 x 1/2 mach bolt

12шт.

NLS

NO LONGER SERVICED

1/4 spring nut

12шт.

58

150161C1

EXTENSION, grain pan wind seal, special

1шт.

59

584912R91

OIL SEAL

OIL SEAL, Serial no. 7278 & above

4шт.

60

584164R91

NEEDLE BEARING

needle, Serial no. 7278 & above

2шт.

61

654916R1

COVER, grain pan finger, special

1шт.

62

155214C1

FINGER

grain pan, Serial no. 11764 & above

1шт.
