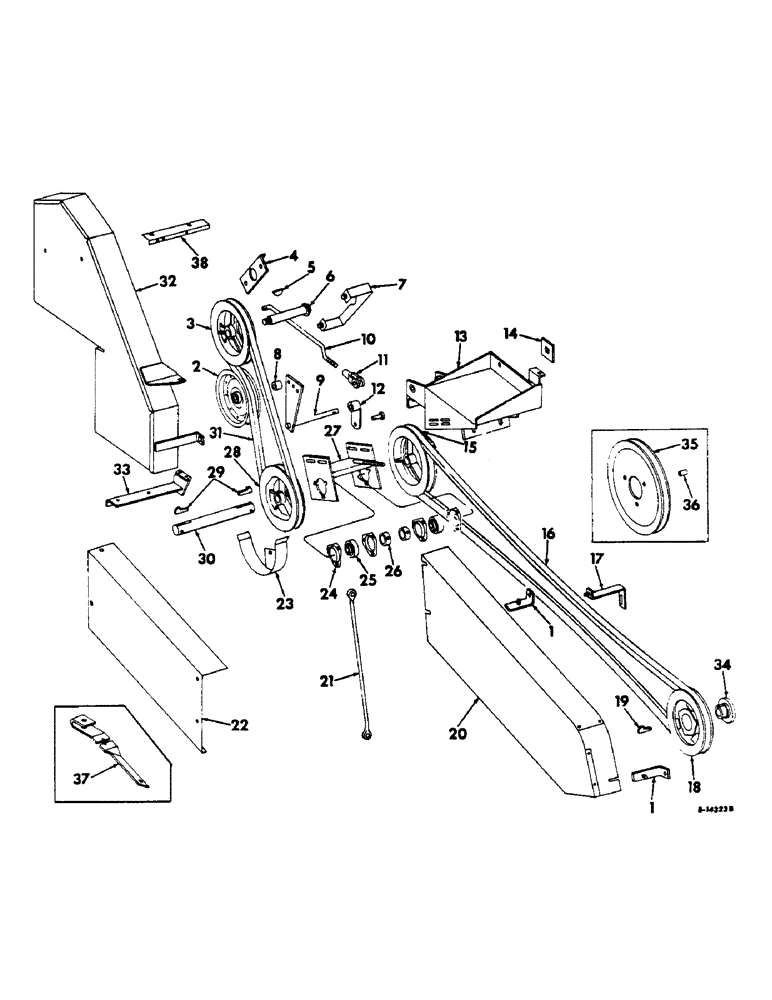

Запчасти Case IH 303 (310) - STRAW CHOPPER, DRIVE PARTS, SERIAL NO. 7278 AND ABOVE (73) - RESIDUE HANDLING

1

151158C11

SUPPORT ASSY, shield

2шт.

935736R1

NUT, WING

5/16 wing nut

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q399

WASHER

11/32 x 1 x 16 ga washer

2шт.

2

663887R1

PULLEY ASSY, tightener

1шт.

3

936160R1

PULLEY, drive, Not for hydrostatic ground drive

1шт.

4

936184R2

BRACKET, clutch control

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z mach bolt w/nut

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

103462

KEY

3/16 x 1 no. 13 Woodruff, Not for hydrostatic ground drive

1шт.

6

936182R11

SHAFT ASSY, propulsion drive pilot

1шт.

7

150033C11

BRACKET ASSY, belt shield upper

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z mach bolt w/nut

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

576015R1

SPACER,7/8" Tube x 11/16"

tightener pulley

1шт.

9

936176R91

ARM ASSY, clutch, Not for hydrostatic ground drive

1шт.

9

153280C91

ARM ASSY, clutch, For hydrostatic ground drive

1шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/16 x 2-1/2 C-Z mach bolt w/nut

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga washer

2шт.

10

936183R1

ROD, clutch control

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga washer

1шт.

11

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

114785

3/8 x 1-1/32 rod end pin

1шт.

12

936179R92

ARM ASSY, clutch control

1шт.

622258R1

LOCK PIN,1/4" x 1 1/8", Slotted

Pin, 1/4" x 1 1/8", Slotted

1шт.

13

151109C91

BRACKET ASSY, intermediate shaft support, Not for hydrostatic ground drive

1шт.

13

153282C91

BRACKET ASSY, intermediate shaft support, For hydrostatic ground drive

1шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

3/8 x 2 C-Z crg bolt w/nut

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

14

936152R1

WASHER

idler mounting bracket

3шт.

15

151067C1

PULLEY, chopper drive, Not for hydrostatic ground drive

1шт.

15

153287C1

PULLEY, chopper drive, For hydrostatic ground drive

1шт.

16

150435C1

BELT

straw chopper drive

1шт.

17

936187R11

BRACE ASSY, rear shield

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

935736R1

NUT, WING

5/16 wing nut

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Q399

WASHER

11/32 x 1 x 16 ga washer

2шт.

18

151066C1

PULLEY, driven

1шт.

19

Q3952

KEY,Gib, 3/8" Sq x 2 3/4"

gib

1шт.

20

151159C91

SHIELD ASSY, rotor driven pulley

1шт.

21

936269R1

ROD, stiffener, Not for hydrostatic ground drive

1шт.

21

156374C1

BRACE, For hydrostatic ground drive

1шт.

18459R1

3/8 x 1-1/4 C-Z mach bolt w/nut

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

22

151138C1

SHIELD, belt rear

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z crg bolt w/nut

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

936266R91

RETAINER ASSY, front belt

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z crg bolt w/nut

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

24

571425R1

FLANGED BEARING

intermediate shaft brg

4шт.

25

557114R91

BEARING

ball

2шт.

26

557115R11

COLLAR

COLLAR W/SET SCREW, locking

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

5/16 x 5/16 hex-soc-hd cup-pt set screw

1шт.

27

151106C91

BRACKET ASSY, intermediate shaft drive, Not for hydrostatic ground drive

1шт.

27

153278C91

BRACKET ASSY, intermediate shaft brg, For hydrostatic ground drive

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z crg bolt w/nut

9шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

3/8 C-Z nut

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

Q1505

WASHER

13/32 x 1 x 16 ga washer

4шт.

28

151338C1

PULLEY, intermediate shaft driven

1шт.

29

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

5/16 x 1-1/2 gib

2шт.

30

151101C1

SHAFT, intermediate, Not for hydrostatic ground drive

1шт.

30

153227C1

SHAFT, intermediate, For hydrostatic ground drive

1шт.

31

936190R2

V-BELT,0.88" W

Straw chopper intermediate shaft drive 0.88" W

1шт.

32

150039C91

SHIELD ASSY, drive belt front, Not for hydrostatic ground drive

1шт.

32

153288C91

SHIELD ASSY, drive belt front, For hydrostatic ground drive

1шт.

16897

5/16 x 3/4 C-Z crg bolt w/nut

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

33

150034C91

ANGLE ASSY, shield support outer, Not for hydrostatic ground drive

1шт.

33

156365C91

SUPPORT ASSY, shield outer, For hydrostatic ground drive

1шт.

34

151065C1

HUB, driven pulley

1шт.

142680H

BOLT (SPREADER),Hex, 3/8"-16 x 2 1/2", G8

BOLT, Hex, 3/8"-16 x 2 1/2", G8

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

35

151105C11

PULLEY ASSY, driven, slow speed

1шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 C-Z mach bolt w/nut

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

36

U13039

SPACER

slow speed

1шт.

37

151441C1

BRACE, drive shield LH

1шт.

38

155316C1

ANGLE, front drive belt shield

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z sq-nk crg bolt

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
