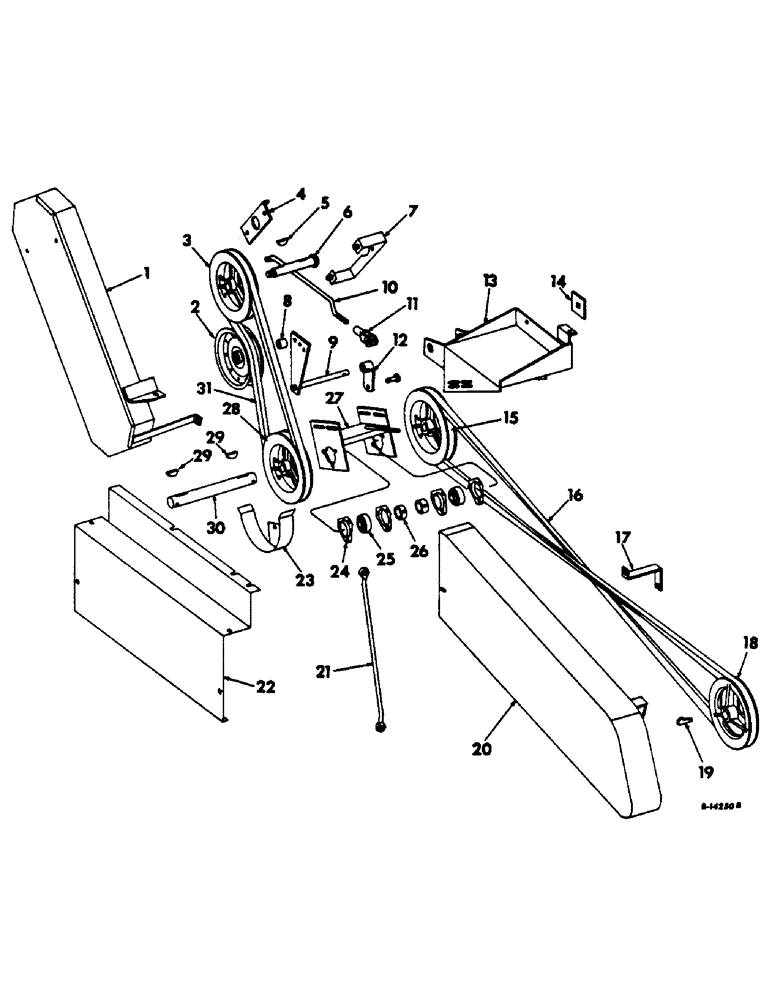

Запчасти Case IH 303 (308) - STRAW CHOPPER, DRIVE PARTS, SERIAL NO. 7277 AND BELOW (73) - RESIDUE HANDLING

1

936141R91

SHIELD ASSY, drive belt front

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 x 3/4 C-Z crg bolt w/nut

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

tightener

1шт.

3

936160R1

PULLEY, drive

1шт.

4

936184R1

BRACKET, clutch control

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z mach bolt w/nut

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

103462

KEY

3/16 x 1 no. 13 Woodruff

1шт.

6

936182R11

SHAFT ASSY, propulsion drive pilot

1шт.

7

936185R11

BRACKET ASSY, belt shield upper

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z mach bolt

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

576015R1

SPACER,7/8" Tube x 11/16"

tightener pulley

1шт.

9

936176R91

ARM ASSY, clutch

1шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8 x 2-1/2 C-Z mach bolt w/nut

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

Q1505

WASHER

25/32 x 1-1/4 x 16 ga washer

2шт.

10

936183R1

ROD, clutch control

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga washer

1шт.

11

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

NLS

NO LONGER SERVICED

3/8 x 1-1/32 rod end pin

1шт.

12

936179R92

ARM ASSY, clutch control

1шт.

622258R1

LOCK PIN,1/4" x 1 1/8", Slotted

Pin, 1/4" x 1 1/8", Slotted

1шт.

13

936164R91

BRACKET ASSY, intermediate shaft

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

14

936152R1

WASHER

idler mounting bracket stiffener

3шт.

15

936189R1

PULLEY, straw chopper drive

1шт.

16

936191R1

BELT, straw chopper drive

1шт.

17

936187R11

STRAP, rear shield

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 X 1 C-Z CRG BOLT W/NUT

1шт.

935736R1

NUT, WING

5/16 WING NUT

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

3/8 X 2 C-Z CRG BOLT W/NUT

3шт.

Q399

WASHER

11/32 X 1 X 16 GA WASHER

2шт.

18

936163R1

PULLEY, driven, Order pulley package, 151310C91, Consists of

1шт.

151065C1

HUB

1шт.

151066C1

PULLEY

1шт.

114-219

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 5

SCREW

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

19

Q3952

KEY,Gib, 3/8" Sq x 2 3/4"

gib

1шт.

20

936281R91

SHIELD ASSY, rotor driven pulley

1шт.

21

936269R1

ROD, stiffener

1шт.

18459R1

3/8 x 1-1/4 C-Z mach bolt w/nut

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

22

936158R1

SHIELD, belt rear

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z crg bolt w/nut

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 x 3/4 C-Z crg bolt w/nut

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

23

936266R91

RETAINER ASSY, front belt

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z crg bolt w/nut

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

24

571425R1

FLANGED BEARING

intermediate shaft bearing

4шт.

25

557114R91

BEARING

ball

2шт.

26

557115R11

COLLAR

COLLAR W/SET SCREW, locking

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

5/16 x 5/16 hex-soc-hd cup-pt set screw

2шт.

27

936172R91

BRACKET ASSY, intermediate shaft bearing

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z crg bolt w/nut

9шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z nut

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

Q1505

WASHER

13/32 x 1 x 16 ga washer

4шт.

28

936188R1

PULLEY, intermediate shaft driven

1шт.

29

117977

WOODRUFF KEY

KEY, 5/16 x 1 Woodruff

2шт.

30

936192R1

SHAFT, intermediate

1шт.

1/4 x 1-3/4 cotter pin

2шт.

68049H

WASHER

1-5/32 x 1-1/2 x 16 ga washer

2шт.

31

936190R2

V-BELT,0.88" W

Straw chopper intermediate shaft drive 0.88" W

1шт.
