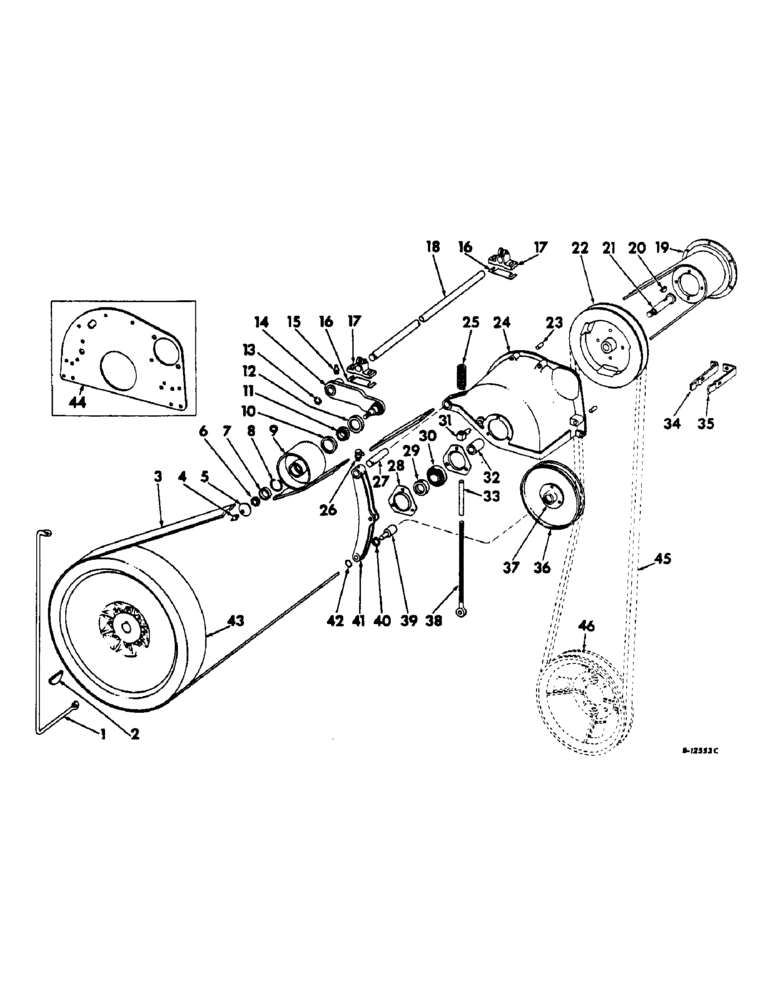

Запчасти Case IH 303 (137) - SEPARATOR AND PROPULSION JACKSHAFT DRIVE (72) - SEPARATION

1

628406R1

GUARD, separator drive belt, grain tank

1шт.

1

935130R1

GUARD, separator drive belt, bagger

1шт.

.

5/16 x 1 crg bolt w/nut

2шт.

.

5/16 lockwasher

2шт.

2

935904R1

KEY, 3/8 x 3/8 x 3-3/4 square parallel, Serial no., Serial Range: 501-4806

1шт.

2

117998

WOODRUFF KEY,#G, 3/8" x 1 1/2", HT

KEY, 3/8 x 1-1/2 Woodruff, Serial no. 4807 & above

1шт.

3

628880R1

BELT,4.00" W x 154.25" L

Separator drive 4.00" W x 154.25" L

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication

1шт.

5

589951R1

PLUG

CAP, separator drive belt tightener pulley hub

1шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, roller bearing

1шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

7

651814R1

BEARING CUP

CUP, roller bearing

1шт.

8

564405R1

RING, SNAP

SNAP RING, separator drive belt tightener pulley

1шт.

9

564407R1

PULLEY, separator drive belt tightener

1шт.

10

651817R1

BEARING CUP

CUP, roller bearing

1шт.

10

651817R1GV

BEARING CUP

Value, Bearing Cone

1шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, roller bearing

1шт.

12

564403R91

SEAL

OIL SEAL, separator drive belt tightener pulley

1шт.

13

631530R1

RING, SNAP

SNAP RING, separator drive jackshaft

1шт.

14

628173R11

ARM W/STUD, separator drive belt tightener

1шт.

.

3/16 x 1 cotter pin

1шт.

.

1/8 x 1-1/4 cotter pin

1шт.

.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

1шт.

.

17/32 x 1 x 16 ga washer

1шт.

.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga washer

2шт.

15

16964R91

FITTING

1/4 90 deg lub

1шт.

16

628291R1

SHIM, separator drive clutch jackshaft clamp

8шт.

17

634826R1

CLAMP, separator drive clutch jackshaft

2шт.

.

560172R1

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 8

3/8-24UNF x 1-1/2 cap screw

2шт.

.

3/8 x 1-1/2 mach bolt w/nut

4шт.

.

3/8-24UNF nut

2шт.

.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

.

617939R1

PIN,5/16" x 1 1/2", Coiled

2шт.

.

3/8 lockwasher

4шт.

.

13/32 x 3/4 x 16 ga washer

4шт.

18

628298R1

SHAFT, separator drive belt tightener support pivot

1шт.

.

1-1/32 x 1-1/2 x 16 ga washer

4шт.

19

276162R1

PULLEY, drive separator

1шт.

.

3/8 x 1 cap screw

6шт.

.

3/8 lockwasher

6шт.

20

103462

KEY

no. 13 Woodruff

1шт.

21

276164R21

SHAFT ASSY, pilot

1шт.

22

589762R1

SHEAVE, propulsion jackshaft drive

1шт.

23

1769Y

DOWEL, rear plate

2шт.

24

378344R2

HOUSING, drive pulley

1шт.

24

395177R1

HOUSING, drive pulley, D236 diesel engines for export only

1шт.

.

7/16 nut

1шт.

.

7/16 x 1-1/4 cap screw

2шт.

.

7/16 x 2-1/4 cap screw

1шт.

.

1/2 x 2-3/4 cap screw

2шт.

.

7/16 lockwasher

3шт.

.

1/2 lockwasher

1шт.

.

Q5035

WASHER

17/32 x 1 x .065 washer

2шт.

25

23612S

SPRING, propulsion jackshaft drive belt tightener drawbolt

1шт.

26

16964R91

FITTING

1/4 90 deg elbow lubrication

1шт.

27

628292R1

SHAFT

propulsion jackshaft drive belt tightener arm pivot

1шт.

.

1/8 x 1-1/2 cotter pin

1шт.

.

102894

SET SCREW

3/8 x 3/4 sq-hd cup-pt set screw

1шт.

.

1-1/32 x 1-1/2 x 16 ga washer

5шт.

28

571426R1

PLATE

FLANGE, drive shaft bearing

2шт.

.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

3/8 x 1 crg bolt

1шт.

.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 mach bolt

2шт.

.

3/8 nut

3шт.

.

3/8 lockwasher

3шт.

29

557113R11

COLLAR

ASSY, drive shaft bearing

1шт.

30

557089R91

BEARING

drive shaft

1шт.

31

564731R1

TRUNNION

propulsion jackshaft drive belt tightener adjusting bolt

1шт.

.

3/16 x 1-1/4 cotter pin

1шт.

.

557171R1

21/32 x 1-1/4 x 16 ga washer

1шт.

32

306424R1

BUSHING

SPACER, pilot shaft

1шт.

.

425-1514

JAM NUT,Jam, 7/8"-14, G5

7/8NF jam nut

1шт.

.

138510

LOCK WASHER,Ext Tooth, 7/8"

7/8 external tooth lockwasher

1шт.

33

567996R1

SLEEVE, propulsion jackshaft drive belt tightener adjusting drawbolt

1шт.

34

569941R1

STRAP, separator drive belt transport front

1шт.

.

5/16 x 1-1/4 crg bolt

1шт.

.

935736R1

NUT, WING

5/16 wing nut

1шт.

.

5/16 lockwasher

1шт.

35

569940R1

STRAP, separator drive belt transport rear

1шт.

36

569193R11

PULLEY

SHEAVE ASSY, propulsion jackshaft drive belt tightener

1шт.

37

564729R1

HUB, propulsion jackshaft drive belt tightener sheave

1шт.

.

3/8 x 1 mach bolt w/nut

3шт.

.

3/8 lockwasher

3шт.

38

564732R1

DRAWBOLT, propulsion drive belt tightener adjusting

1шт.

.

1/2 C-Z nut

3шт.

.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

.

17/32 x 1 x 11 ga washer

1шт.

39

ST634

BEARING ASSY

BEARING, propulsion jackshaft drive belt tightener sheave

1шт.

40

559203R1

SNAP RING,#118, 1.260", Int, Spiral

propulsion jackshaft drive belt tightener sheave hub

1шт.

41

564765R1

ARM

SUPPORT, propulsion jackshaft drive belt tightener

1шт.

.

3/16 x 1-1/4 cotter pin

1шт.

.

M6091/2

PIN

1/2 x 1-3/4 dld pin

1шт.

42

432482

PLUG,5/8"

5/8 button

1шт.

43

628881R91

PULLEY

W/HUB, separator driven, Serial no. 501 to 4806, Order service package, 936714R91

1шт.

43

936714R91

PACKAGE

ASSY, cylinder beater and separator driven pulley, Serial no. 4806 & below, Consists of

1шт.

.

936432R11

SHAFT

ASSY, cylinder beater

1шт.

.

936474R91

PULLEY ASSY, separator driven

1шт.

.

117988

KEY

3/8 x 1-1/2 Woodruff

1шт.

.

629724R11

COLLAR

COLLAR W/SET SCREW ASSY

1шт.

.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 x 3/8 set screw

1шт.

43

936474R91

PULLEY ASSY, separator driven, Serial no. 4807 & above

1шт.

44

276044R11

PLATE ASSY, rear engine mounting, Serial no. 7278 & below

1шт.

.

7/16 nut

8шт.

.

7/16 x 1 cap screw

4шт.

.

7/16 x 1-1/2 cap screw

6шт.

.

7/16 lockwasher

8шт.

45

BELT, propulsion jackshaft drive, Refer to propulsion variable speed and jackshaft drive for listing

1шт.

46

SHEAVE, propulsion jackshaft driven, Refer to propulsion variable speed and jackshaft drive for listing

1шт.
