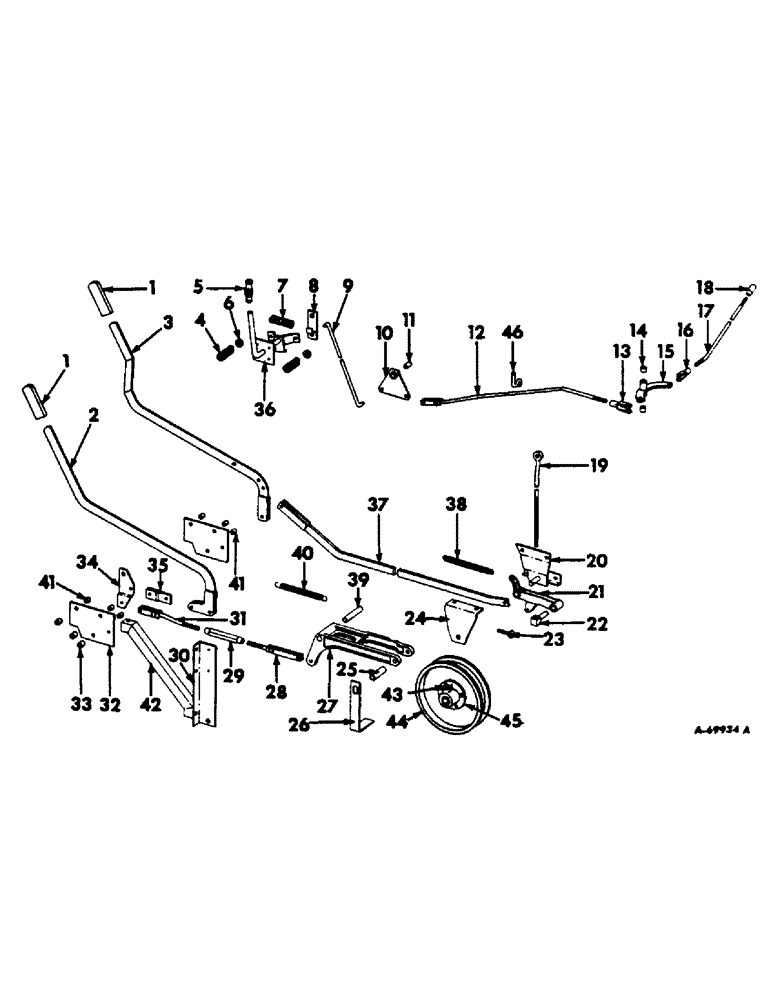

Запчасти Case IH 303 (133) - SEPARATOR DRIVE CLUTCH AND THROTTLE CONTROL, SERIAL NO. 7277 AND BELOW (72) - SEPARATION

1

632519R1

GRIP

feeder and separator drive clutch lever

2шт.

2

627474R91

LEVER W/CRANK, feeder drive clutch

1шт.

113166

3/8 x 9/16 straight pin

1шт.

3

628293R91

LEVER W/CRANK, separator drive clutch control

1шт.

4

VA620

SPRING, throttle

2шт.

5

633205R1

KNOB, throttle lever

1шт.

6

631833R1

WASHER, throttle lever

2шт.

7

6

FINGER

throttle tension

1шт.

8

627804R91

ARM W/STOP, throttle control

1шт.

9

627500R1

ROD, vertical

1шт.

1/8 x 1 cotter pin

2шт.

10

627498R91

BELLCRANK W/HUB, throttle

1шт.

11

628758R1

SPACER, throttle bellcrank

1шт.

3/8 x 1-1/4 mach bolt w/nut

1шт.

3/8 lockwasher

1шт.

12

628753R91

ROD W/CONNECTOR, throttle rear

1шт.

3/32 x 3/4 cotter pin

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

3/8 x 1-3/32 rod end pin

1шт.

605

BEACON

3/8 x 1 rod end pin

1шт.

13

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8

1шт.

3/32 x 3/4 cotter pin

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

3/8 x 1-3/32 rod end pin

1шт.

14

568901R1

BUSHING

2шт.

15

568898R91

ARM W/BUSHING ASSY, rear pivot, Includes ref. no. 14, Serial no., Serial Range: 501-4806

1шт.

15

569448R91

ARM W/BUSHING ASSY, rear pivot, Includes ref. no. 14, Serial no. 4807 & above

1шт.

3/16 x 1 cotter pin

1шт.

1/2 x 2-3/4 dld pin

1шт.

17/32 x 1 x 16 ga washer

2шт.

16

104037

CLEVIS

5/16

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

17

570064R1

ROD, governor control, LP gas engines

1шт.

17

568886R1

ROD, governor control, gasoline engines

1шт.

18

565636R91

BALL JOINT, governor control rod

1шт.

19

588785R1

ROD

separator drive clutch rear pivot arm

1шт.

1/2 nut

2шт.

20

588791R91

SUPPORT W/PLATE, separator drive clutch rear pivot

1шт.

3/8 x 3/4 crg bolt w/nut

2шт.

3/8 x 1 crg bolt w/nut

2шт.

1/8 x 1-1/4 cotter pin

1шт.

3/8 lockwasher

4шт.

578274R1

WASHER

21/32 x 1 x 11 ga washer

3шт.

21

628174R1

ARM, separator drive clutch control

1шт.

22

565370R1

TRUNNION, separator clutch rear pivot arm

1шт.

3/16 x 1-1/2 cotter pin

1шт.

350515R1

WASHER

21/32 x 16 ga washer

1шт.

23

570028R91

BOLT

STOP W/WASHER, separator drive belt tightener arm

1шт.

3/8 nut

2шт.

24

628305R1

SUPPORT, separator drive clutch rear pivot stud

1шт.

7/16 x 1 crg bolt w/nut

2шт.

7/16 lockwasher

2шт.

25

627479R1

BUSHING

feeder drive idler sheave

1шт.

26

627478R1

RETAINER, feeder drive clutch belt

1шт.

27

627476R1

ARM, feeder drive clutch

1шт.

1/2 x 1-1/2 mach bolt

1шт.

5/8 x 4 cap screw

1шт.

1/2 lockwasher

1шт.

5/8 lockwasher

1шт.

575810R1

WASHER

21/32 x 1-1/2 x 11 ga washer

1шт.

10620P

WASHER

21/32 x 1-1/2 x 16 ga washer

1шт.

28

628756R91

ROD W/CONNECTOR, feeder drive clutch lower

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

3/32 x 3/4 cot pin

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

3/8 x 1-3/32 rod end pin

1шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

29

628698R1

TURNBUCKLE

feeder drive clutch rod

1шт.

30

627470R1

SUPPORT, feeder drive clutch pivot RH

1шт.

30

627471R1

SUPPORT, feeder drive clutch pivot LH

1шт.

3/8 x 1-1/4 crg bolt w/nut

4шт.

3/16 x 1 cot pin

1шт.

3/8 lockwasher

4шт.

510579R1

WASHER

13/32 x 1-1/4 x 16 ga washer

2шт.

31

627467R91

ROD W/CONNECTOR, feeder drive clutch upper

1шт.

3/32 x 3/4 cot pin

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

3/8 x 1-3/32 rod end pin

1шт.

32

627466R1

PLATE, control lever spacer

2шт.

33

23183KA

SPACER, feeder drive clutch lever

3шт.

34

627472R1

ARM, feeder drive clutch

1шт.

35

564649R91

LINK, feeder clutch lever pivot

1шт.

113166

3/8 x 9/16 straight pin

1шт.

36

627495R91

LEVER W/PLATE, throttle

1шт.

3/8 x 2 mach bolt

2шт.

3/8 x 3-1/2 mach bolt

1шт.

3/8 nut

2шт.

654049R1

LOCK NUT

3/8 locknut

2шт.

13/32 x 1 x 16 ga washer

4шт.

13/32 x 1-1/4 x 16 ga washer

3шт.

37

629806R91

ROD W/CONNECTOR, separator drive clutch

1шт.

3/32 x 3/4 cot pin

1шт.

129307R1

3/8 x 7/8 rod end pin

1шт.

38

55934D

SPRING

separator drive clutch control

1шт.

39

627477R1

SPACER

feeder drive clutch arm

1шт.

40

55934D

SPRING

feeder drive clutch return arm

1шт.

40

55934D

SPRING

feeder drive clutch return arm

1шт.

41

564664R1

SPACER, control lever plate

1шт.

21/32 x 1-1/4 x 11 ga washer

2шт.

42

634460R1

BRACE, feeder drive clutch LH support

1шт.

3/8 x 3/4 mach bolt w/nut

1шт.

3/8 lockwasher

1шт.

510579R1

WASHER

13/32 x 1-1/4 x 16 ga washer

1шт.

43

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

44

568941R11

PULLEY

SHEAVE ASSY, feeder drive clutch

1шт.

45

632591R11

HUB

W/BEARING, race and washer, feeder drive clutch sheave, Consists of

1шт.

632592R1

BUSHING

RACE

1шт.

ST1302

BEARING

1шт.

M23538

WASHER

1шт.

3/8 x 1 mach bolt w/nut

3шт.

3/8 lockwasher

3шт.

46

634461R1

GUIDE, throttle rod

1шт.
