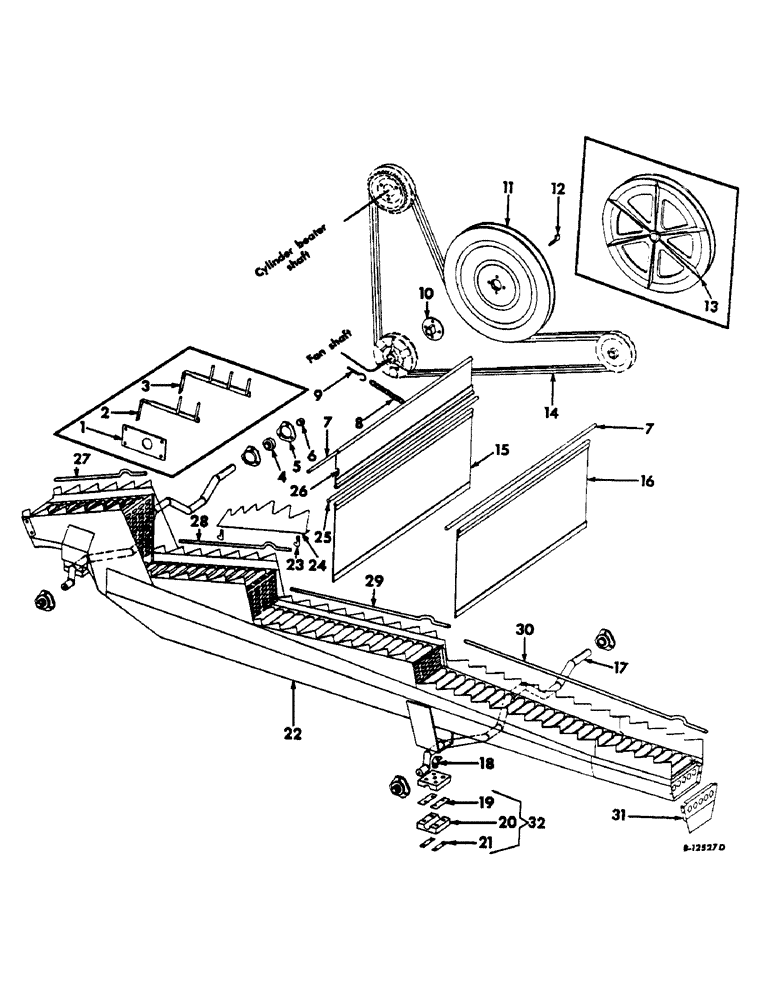

Запчасти Case IH 303 (075) - STRAW RACK AND DRIVE (72) - SEPARATION

1

588766R1

PLATE

straw rack riser bolting, straw rack riser attachment

1шт.

2

584100R91

RISER

EXTENSION W/FINGER, straw rack riser, front straw rack riser attachment

1шт.

1/4 x 3/4 mach bolt

1шт.

1/4 lockwasher

1шт.

3

584102R91

RISER

EXTENSION W/FINGER, straw rack riser, rear straw rack riser

1шт.

1/4 x 3/4 cap screw

1шт.

1/4 lockwasher

1шт.

4

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ball

4шт.

5

571424R1

FLANGE

crankshaft brg

8шт.

6

455102R11

COLLAR

W/SET SCREW ASSY, locking

4шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 x 1/4 cup-pt set screw

4шт.

7

UA12470

ROD, separator check flap

2шт.

1/8 x 3/4 cot pin

4шт.

8

H59561

CHAIN, separator check flap adj

1шт.

1/4 x 1-1/4 cot pin

1шт.

9

H59564

PIN

separator check flap adj chain

1шт.

10

564694R1

HUB, driven pulley, Not bean special

1шт.

11

568237R11

PULLEY W/SPACER, straw rack driven, Not bean special

1шт.

12

Q3930

KEY,Gib, 5/16" Sq x 1 3/4"

5/16 x 5/16 x 1-3/4 gib

1шт.

13

574040R1

PULLEY, straw rack driven, regular for bean special

1шт.

14

937928R1

V-BELT

Fan and straw rack drive, Regular for grain, rice and windrow special

1шт.

14

150434C1

V-BELT,0.88" W x 166.99" L

Fan and Straw Rack Drive, Regular for Bean Special 0.88" W x 166.99" L

1шт.

15

564388R21

FLAP

CANVAS ASSY, separator front check flap

1шт.

16

564384R21

CANVAS ASSY, separator rear check flap

1шт.

17

564000R1

CRANKSHAFT, straw rack

2шт.

18

NOT USED

1шт.

19

SHIM, bearing box, Not serviced separately, Order package assy, 156206C91

1шт.

20

BOX, straw rack crankshaft brg, Not serviced separately, Order package assy, 156206C91

1шт.

21

STRAP, nut, Not serviced separately, Order package assy, 156206C91

1шт.

5/16 x 2-1/2 crg bolt

1шт.

25-285

SQUARE NUT,Sq, 5/16"-18

5/16 sq nut

1шт.

22

627831R91

RACK

STRAW RACK ASSY, grain and bean special, Serial no. 7277 & below

3шт.

22

634296R91

RACK

STRAW RACK ASSY, rice and windrow special, Serial no. 7277 & below

3шт.

22

937291R91

RACK

STRAW RACK ASSY, Serial no. 7278 to 11763, Serial no. 7278 & above

3шт.

22

155773C91

RACK

ASSY, straw, Serial no. 11764 & above

1шт.

23

564019R1

BOLT, straw rack extension fish back, Serial no. 2750 & below

8шт.

1/4 nut

8шт.

1/4 lockwasher

8шт.

24

564018R1

FISHBACK, straw rack extension, Serial no. 2750 & below

4шт.

25

564389R1

ROD, separator front check flap lower hinge

1шт.

26

564385R91

FLAP W/CLAMP, separator front check

1шт.

27

634277R1

ROD, straw rack front grille, windrow special, Serial no. 7277 & below

15шт.

27

937299R1

ELECTRICAL WIRE

WIRE, straw rack front rise, Serial no. 7278 & above

1шт.

28

634286R1

ROD, straw rack front center grille, windrow special, Serial no. 7277 & below

15шт.

28

937300R1

ELECTRICAL WIRE

WIRE, straw rack front center rise, Serial no. 7278 & above

1шт.

29

634287R1

ROD, straw rack center grille, windrow special, Serial no. 7277 & below

15шт.

29

937301R1

ELECTRICAL WIRE

WIRE, straw rack rear center rise, Serial no. 7278 & above

1шт.

30

634288R1

ROD, straw rack rear grille, windrow special, Serial no. 7277 & below

15шт.

30

937302R1

WIRE, straw rack riser rear, Serial no. 7278 & above

1шт.

31

937304R91

COVER ASSY, straw rack rear, Serial no. 7278 & above

1шт.

110663

No. 10 nut

1шт.

110499

CAPSCREW,Rd Hd, #10 - 24 x 3/8"

No. 10 x 3/8 slt-rd-hd mach screw

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

31

161006C1

COVER, straw rack rear end, slow speed special

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

1/4-20 x 1/2 C-Z hex-hd whiz-lock

6шт.

32

156206C91

BOX

PACKAGE ASSY, straw rack bearing block service

1шт.
