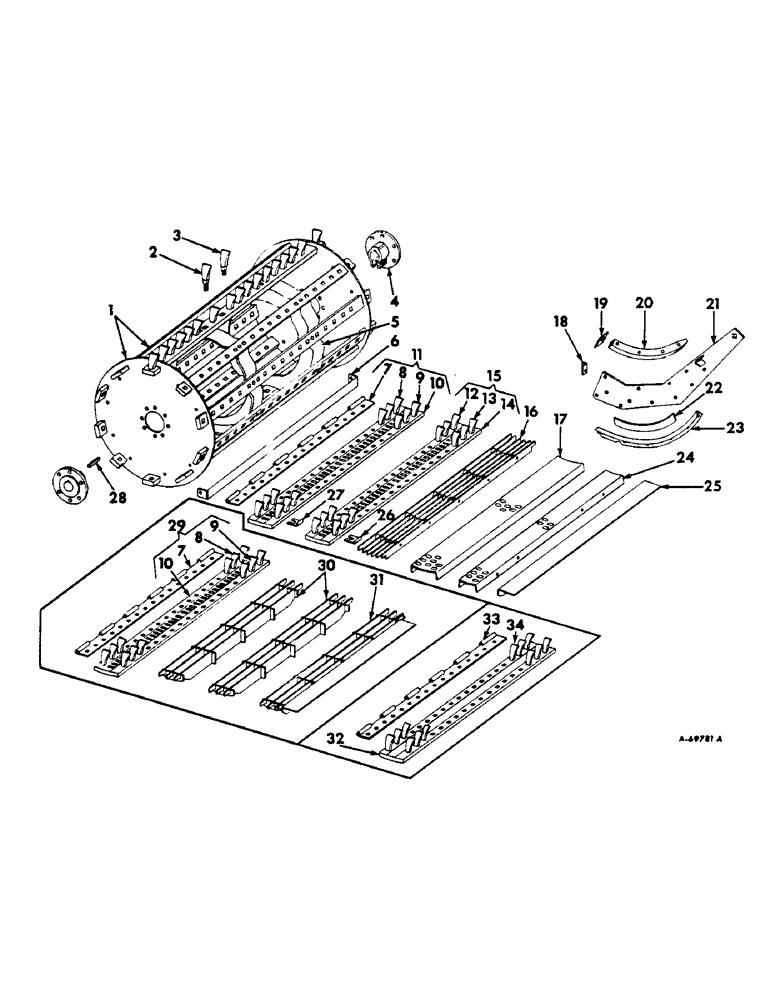

Запчасти Case IH 303 (063) - SPIKE TOOTH CYLINDER ATTACHMENT, SERIAL NO. 11763 AND BELOW (66) - THRESHING

1

155268C91

CYLINDER, less shaft, Includes ref. nos. 2, 4 and 5

1шт.

2

M3073

TOOTH

cylinder middle

1шт.

9/16 nut

1шт.

9/16 lockwasher

1шт.

3

M4498

TOOTH

cylinder

1шт.

9/16 nut

1шт.

9/16 lockwasher

1шт.

4

155113C1

HUB, cylinder

2шт.

3/8 x 1-1/4 b-hd rivet

12шт.

5

567891R1

HEAD, cylinder center

1шт.

3/8 x 1-5/8 ct-sk rivet

10шт.

6

569911R91

SPREADER W/PLATE, concave adjusting arm

1шт.

634122R1

BOLT,5/8"-11 x 2", G8, Full Thd

5/8 x 2 no. 3 plow bolt

2шт.

5/8 nut

2шт.

5/8 lockwasher

2шт.

21/32 x 1 x 16 ga washer

2шт.

7

629405R1

HINGE, concave front extension

1шт.

8

M6073

TOOTH, concave front, short

2шт.

9/16 nut

1шт.

9/16 lockwasher

1шт.

936476R1

SQ HOLE WASHER

concave tooth

1шт.

9

M4498

TOOTH

concave front, long

23шт.

9/16 nut

1шт.

9/16 lockwasher

1шт.

936476R1

SQ HOLE WASHER

concave tooth

1шт.

10

567904R1

CONCAVE, front

1шт.

9/16 nut

1шт.

9/16 lockwasher

1шт.

11

NON-SERVICE

1шт.

12

M6073

TOOTH, concave rear, short, grain

2шт.

9/16 nut

1шт.

9/16 lockwasher

1шт.

936476R1

SQ HOLE WASHER

concave tooth

1шт.

13

M4498

TOOTH

concave rear, long, grain

23шт.

9/16 nut

1шт.

9/16 lockwasher

1шт.

936476R1

SQ HOLE WASHER

concave tooth

1шт.

14

567904R1

CONCAVE, rear, grain

1шт.

15

NON-SERVICE

1шт.

16

567899R91

GRATE W/BAR, concave, grain

2шт.

17

567905R1

GRATE, concave, grain

2шт.

18

568139R1

ANGLE

DEFLECTOR, concave LH

4шт.

18

568140R1

ANGLE

DEFLECTOR, concave RH

4шт.

19

567908R1

BAR

CLIP, concave locking

2шт.

20

568135R1

SUPPORT

RETAINER, upper LH

1шт.

20

568136R1

SUPPORT

RETAINER, upper RH

1шт.

5/16 jam nut

2шт.

5/16 x 7/8 cap screw

2шт.

5/16 lockwasher

2шт.

11/32 x 3/4 x 16 ga washer

2шт.

21

567901R11

SUPPORT W/STOP, concave LH

1шт.

21

567902R11

SUPPORT, w/stop, Concave RH

1шт.

3/8 x 1 no. 3 plow bolt w/nut

20шт.

3/8 lockwasher

20шт.

22

587764R1

SHIM

concave adjusting

8шт.

23

568137R1

RETAINER, concave lower LH

1шт.

23

568138R1

RETAINER, concave lower RH

1шт.

24

567903R1

GRATE, concave rear, grain

1шт.

25

567907R1

EXTENSION, concave rear, grain

1шт.

3/8 x 3/4 mach bolt w/nut

4шт.

3/8 lockwasher

4шт.

26

588849R1

SPACER, concave, grain

3шт.

27

588849R1

SPACER, concave, grain

3шт.

28

Q3406

KEY,3/8" Sq x 5 1/4"

3/8 x 23/8 x 5-1/4 straight

2шт.

29

NON-SERVICE

1шт.

30

574245R91

CONCAVE W/RAIL, bar grate front, rice

2шт.

31

574505R91

CONCAVE W/RAIL, bar grate rear, rice

1шт.

32

NOT USED

1шт.

33

NOT USED

1шт.

34

NOT USED

1шт.
