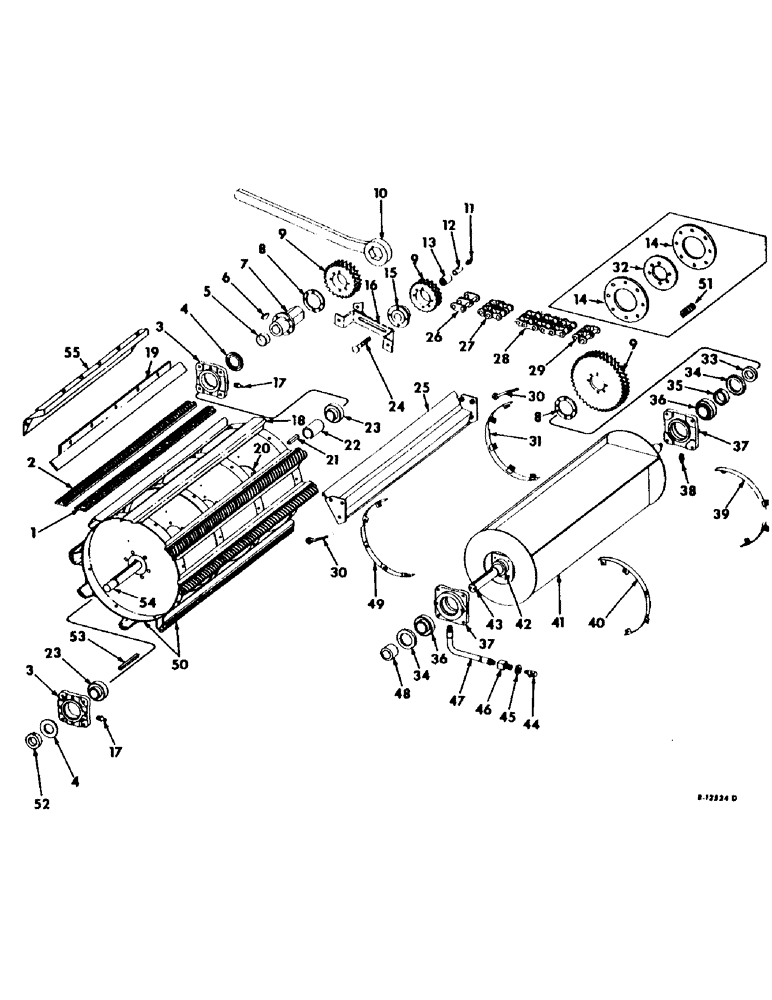

Запчасти Case IH 303 (060) - CYLINDER, DRIVE AND SLIP CLUTCH AND CYLINDER BEATER (66) - THRESHING

1

654255R91

BAR

SET OF CYLINDER BARS, RH, grain

1шт.

1

654257R91

SET OF CYLINDER BARS, RH, rice

1шт.

181655

BOLT,Hex, 7/16" - 20 x 9/16", Gr 5

7/16 x 9/16 C-Z hex-hd cap screw, type 2

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

2

654254R91

BAR

SET OF CYLINDER BARS, LH, grain

1шт.

2

654256R91

SET OF CYLINDER BARS, LH, rice

1шт.

181655

BOLT,Hex, 7/16" - 20 x 9/16", Gr 5

7/16 x 9/16 C-Z hex-hd cap screw, type 2

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

3

629689R11

HOUSING

W/BEARING AND SEAL ASSY, cyl bearing, Includes ref. nos. 4 and 23, Serial no. 7277 & below

2шт.

3

939617R11

BOX

HOUSING ASSY, cyl shaft beraing, Includes ref. nos. 4 and 23, Serial no. 7278 & above

2шт.

1/2 x 3/4 mach bolt

4шт.

936627R1

17/32 x 2 x 16 ga washer

4шт.

557268R1

WASHER

17/32 x 3/4 x 16 ga washer

4шт.

4

631758R91

SEAL

cyl bearing, Serial no. 7277 & below

2шт.

4

939619R91

SEAL

SEAL ASSY, cyl bearing, Serial no. 7278 & above

2шт.

5

631405R1

SPACER, cyl shaft

1шт.

6

117998

WOODRUFF KEY,#G, 3/8" x 1 1/2", HT

KEY, 3/8 x 1-1/2 Woodruff, Serial no. 9427 & below

1шт.

6

Q29

KEY, 3/8 x 3/8 x 5-1/2 sq parallel, Serial no. 9428 & above 3/8" Sq x 5 1/2"

1шт.

7

629690R1

HUB

cyl drive

1шт.

5/16 jam nut

2шт.

106837

SET SCREW,Sq Hd, 5/16"-18 x 3/4"

5/16 x 3/4 sq-hd set screw

2шт.

8

631836R1

SPACER, cyl sprocket, grain, special

2шт.

9

564475R2

SPROCKET ASSY.

SPROCKET, 20T, single, grain, regular

1шт.

9

565376R2

SPROCKET ASSY.

SPROCKET, 30T, single, rice, regular

1шт.

20153R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 C-Z cap screw

6шт.

3/8 C-Z nut

6шт.

3/8 C-Z washer

6шт.

9

564476R2

SPROCKET, 25T, single, regular

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 C-Z cap screw

6шт.

3/8 lockwasher

6шт.

9

564474R2

SPROCKET ASSY.

SPROCKET, 43T, single, regular

1шт.

9

627886R1

SPROCKET, 22T, single, regular

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z

4шт.

3/8 lockwasher

4шт.

9

568855R1

SPROCKET, 43T, single, bean special

1шт.

9

574054R1

SPROCKET, 48T, single, bean special

1шт.

9

569201R2

PINION

SPROCKET, 20T, double, grain

1шт.

897520R1

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

3/8 x 2-3/4 cap screw

1шт.

9

569200R2

DRIVE SPROCKET

SPROCKET, 25T, double, grain, special

1шт.

9

569202R2

DRIVE SPROCKET

SPROCKET, 43T, double

1шт.

9

627884R1

SPROCKET ASSY.

SPROCKET, 22T, double

1шт.

3/8 C-Z nut

6шт.

20153R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 C-Z cap screw

12шт.

3/8 C-Z lockwasher

12шт.

9

569202R2

DRIVE SPROCKET

SPROCKET, 43T, double, grain, special

1шт.

142680H

BOLT (SPREADER),Hex, 3/8"-16 x 2 1/2", G8

BOLT, Hex, 3/8"-16 x 2 1/2", G8

6шт.

3/8 C-Z lockwasher

6шт.

9

627884R1

SPROCKET ASSY.

SPROCKET, 22T, double, grain, special

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 C-Z cap screw

4шт.

3/8 C-Z lockwasher

4шт.

10

156259C91

BAR ASSY, cylinder rocking

1шт.

11

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 elbow lub

1шт.

12

578607R1

SLEEVE CYLINDER

SLEEVE, cyl chain tightener sprocket

1шт.

13

577006R91

NEEDLE BEARING,Needle, 22.2mm ID x 33.36mm OD x 38.1mm W

needle

1шт.

14

568853R1

PLATE, cyl shaft friction clutch outer, bean special

2шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Stove 3/8"-16, GB

8шт.

3/8 x 3-1/2 cap screw

8шт.

13/32 x 1 x 16 ga washer

8шт.

15

627887R11

HUB W/BEARING ASSY, cyl drive chain tightener sprocket, Includes ref. nos. 13

1шт.

15

627885R11

HUB CAP

HUB W/BEARING ASSY, cyl drive chain tightener sprocket, Includes ref. no. 13, grain, special

1шт.

16

633507R91

BRACKET W/STIFFENER, cyl drive chain tightener

1шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 x 1 C-Z cap screw w/nut

1шт.

1/2 C-Z lockwasher

1шт.

PO10532

WASHER

13/32 x 1-1/4 x 11 ga washer

1шт.

17

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 elbow lub

2шт.

18

633527R1

SUPPORT, cylinder bar, Not for use with spike tooth cylinder

8шт.

5/16 x 5/8 b-hd rivet

128шт.

19

653857R1

DEFLECTOR, cylinder front, Not for use with windrow special

1шт.

20

156390C1

HUB, cyliner

2шт.

1/2 x 2-3/4 crg bolt w/nut

2шт.

1/2 lockwasher

2шт.

104099

RIVET,But Hd, 5/16" x 1"

5/16 x 1 b-hd rivet

12шт.

21

Q51

KEY,3/8" Sq x 2 1/2", Par

Not for use with spike tooth cylinder 3/8" Sq x 2 1/2", Par

1шт.

22

629691R1

SPACER, cylinder shaft bearing, Not for use with spike tooth cylinder

1шт.

23

631984R91

BALL BEARING

ASSY, cylinder ball shaft, Serial no. 7277 & below

2шт.

23

939618R91

BEARING

ASSY, cylinder shaft ball, Serial no. 7278 & above

1шт.

24

575280R1

BOLT (SPREADER)

BOLT, cylinder drive chain tightener sprocket

1шт.

5/8 nut

1шт.

5/8 lockwasher

1шт.

575810R1

WASHER

21/32 x 1-1/2 x 11 ga washer

5шт.

21/32 x 1-1/2 x 12 ga sq-hole washer

1шт.

25

628441R91

DEFLECTOR W/NUT, cylinder, Serial no. 7277 & below

1шт.

3/8 x 1 cap screw

3шт.

354921R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 cap screw

2шт.

560164R1

SCREW,Hex, 3/8"-16 x 7/8", G8, Full Thd

3/8 x 7/8 cap screw

1шт.

3/8 lockwasher

5шт.

13/32 x 1 x 16 ga washer

3шт.

25

150201C91

DEFLECTOR ASSY, cylinder, Serial no. 7278 & above

1шт.

454997

O-RING,175mm ID x 8mm Width

1/2 x 7/8 C-Z cap screw

3шт.

20171R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 8

1/2 x 1-1/8 C-Z cap screw

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

Q5035

WASHER

17/32 x 1 x 16 ga washer

4шт.

26

1786D

LINK

connecting, 3/4 single pitch, regular

1шт.

26

569206R91

CHAIN LINK

LINK, connecting, 3/4 double pitch, grain, special

1шт.

27

570036R91

LINK, two pitch combination offset, 3/4 single pitch, grain, regular

1шт.

27

570988R91

DRAG LINK

LINK, two pitch combination offset, grain, special

1шт.

28

CHAIN ASSY, cyl drive roller, Use 77 links of 3/4 single pitch standard roller chain from a 10 ft. roll marked 1793D, (3) connecting links, 1786D and (1) two pitch combination offset link 570036R91, grain, regular

1шт.

28

CHAIN ASSY, cyl drive roller, Use 81 links of 3/4 single pitch standard roller chain from a 10 ft. roll marked 1793D, (1) roller link, 1316D, (4) connecting links, 1786D and (1) two pitch combination offset link, 570036R91, rice, regular

1шт.

28

CHAIN, cylinder drive roller, Use 75 links of 3/4 double pitch roller chain from a 10 ft. roll marked 1355D, (2) roller links, 1316D, (3) connecting links, 569206R91, and (1) two pitch combination offset links, 570988R91, grain, special

1шт.

28

CHAIN, cylinder drive roller extension, Use 7 links of 3/4 pitch roller chain from a 10 ft. roll marked 1793D, (3) connecting links, 1786D and (1) two pitch combination offset link, 570036R91, bean, special

1шт.

29

1318D

LINK

offset, 3/4 single pitch, rice

1шт.

30

634125R1

BOLT

EYEBOLT, cylinder stripper adjusting

2шт.

3/8 C-Z nut

4шт.

31

631098R91

SHIELD W/BRACKET ASSY, cylinder beater front right, Serial no., Serial Range: 501-2750

1шт.

32

568854R2

PLATE, cylinder drive friction clutch, inner, bean, special

1шт.

33

631660R1

SPACER, cylinder beater shaft, right

1шт.

34

631705R91

SEAL

cylinder beater bearing oil, Serial no. 7277 & below

2шт.

34

939624R91

SEAL

SEAL ASSY, cylinder shaft oil, Serial no. 7278 & above

1шт.

35

629724R11

COLLAR

COLLAR W/SET SCREW ASSY, locking, (1) used for Serial no. 501 to 4806, (2) used for Serial no., Serial Range: 4807-7277

1шт.

35

939932R11

COLLAR

W/SET SCREW LOCKING

2шт.

102596

3/8 x 3/8 socket-hd set screw, Serial no. 7278 & above

2шт.

36

631988R91

BEARING ASSY,1.688" ID

ball, Serial no. 7277 & below

2шт.

36

939621R91

BEARING

ball, Serial no. 7278 & above

2шт.

37

631212R11

HOUSING W/BEARING AND SEAL, cylinder beater shaft bearing, Includes ref. nos. 34 and 36, Serial no. 7277 & below

2шт.

37

939620R11

HOUSING ASSY, cylinder beater shaft bearing, Includes ref. nos. 34 and 36, Serial no. 7278 & above

2шт.

1/2 x 3-3/4 mach bolt

4шт.

936627R1

17/32 x 2 x 16 ga washer

4шт.

557268R1

WASHER

17/32 x 3/4 x 16 ga washer

4шт.

38

213517

FITTING

1/8 straight lubrication

1шт.

39

631102R91

SHIELD W/BRACKET ASSY, cylinder beater rear RH, Serial no., Serial Range: 501-2750

1шт.

40

631101R91

SHIELD W/BRACKET ASSY, cylinder beater rear LH, Serial no., Serial Range: 501-2750

1шт.

41

150686C91

BEATER ASSY, cylinder, Not for use with bean special

1шт.

42

629713R1

SPACER

cylinder beater inner LH

1шт.

43

628472R11

SHAFT

W/NUT ASSY, cylinder beater, Serial no. 4806 & below, Order service package 936714R91

1шт.

43

936714R91

PACKAGE

ASSY, cylinder beater and separator driven pulley, Serial no. 4806 & below, Consists of

1шт.

163443C11

SHAFT ASSY, cylinder beater

1шт.

936474R91

PULLEY ASSY, separator driven

1шт.

117998

WOODRUFF KEY,#G, 3/8" x 1 1/2", HT

KEY, 3/8 x 1-1/2 Woodruff

1шт.

629724R11

COLLAR

COLLAR W/SET SCREW ASSY

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 x 3/8 set screw

1шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 x 2-1/4 x 1/4 washer

2шт.

632471R1

1-1/32 x 2 x 22 ga washer

4шт.

43

163443C11

SHAFT ASSY, cylinder beater, Serial no. 4807 & above

1шт.

427651

SLOTTED NUT,1"-14, G5

1 slt hex nut

2шт.

1/8 x 2 cot pin

2шт.

Q254

WASHER

23/32 x 2-1/2 x 16 ga washer

2шт.

937245R1

1-1/32 x 3 x 1/4 washer

1шт.

632471R1

1-1/32 x 2 x 22 ga washer

2шт.

10619P

1-21/32 x 2-1/4 x 16 ga washer

4шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 x 2-1/4 x 14 ga washer

2шт.

Q1437

1-1/32 x 2-1/2 x 18 ga washer

4шт.

44

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication

1шт.

45

581873R1

TUBE NUT,4.8 mm Length

cylinder beater bearing housing lubrication hose

1шт.

46

580255R1

ADAPTER

NIPPLE, cylinder beater bearing housing lubrication hose

1шт.

47

580260R91

HOSE,0.19" ID x 6.00"

Cylinder Beater Bearing Housing Lubrication 0.19" ID x 6.00"

1шт.

48

936210R1

SPACER, cylinder beater shaft outer LH, Serial no., Serial Range: 501-4806

1шт.

49

631097R91

SHIELD W/BRACKET ASSY, cylinder beater front LH, Serial no., Serial Range: 501-2750

1шт.

50

633524R91

CYLINDER ASSY, less shaft, grain

1шт.

50

633528R91

CYLINDER ASSY, less shaft, rice

1шт.

51

M74156

SPRING

cylinder drive slip clutch, bean special

8шт.

52

629721R11

COLLAR

COLLAR W/SET SCREW, locking, Serial no. 7277 & below

1шт.

52

939930R11

COLLAR

W/SET SCREW, locking, Serial no. 7278 & above

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 x 3/8 socket-hd set screw

1шт.

53

Q1432

KEY,3/8" Sq x 5", Par

3/8 x 3/8 x 5 straight, Not for use with spike tooth cylinder

1шт.

54

628191R11

SHAFT W/NUT ASSY, cylinder

1шт.

427651

SLOTTED NUT,1"-14, G5

1-14NS sltd nut

1шт.

1/8 x 2 cotter pin

1шт.

551179R1

1-1/32 x 2-1/4 x 22 ga washer

1шт.

10619P

1-21/32 x 2-1/4 x 16 ga washer

1шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 x 2-1/4 x 1/4 washer

1шт.

55

935694R91

DEFLECTOR W/BRACKET, cylinder cover dust

1шт.

3/8 x 1 crg bolt w/nut

4шт.

3/8 lockwasher

4шт.
