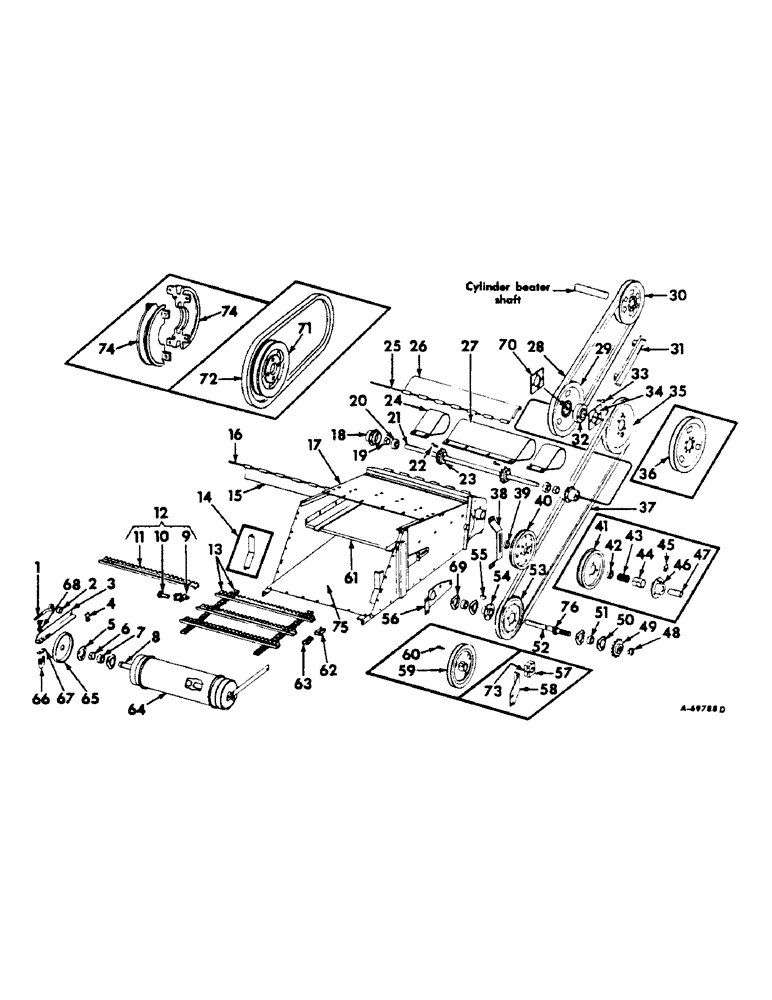

Запчасти Case IH 303 (033) - FEEDER, FEED CONVEYOR CHAIN AND GRAIN, DEFLECTOR ATTACHMENT (60) - PRODUCT FEEDING

1

564979R1

BOLT (SPREADER),7/16" - 14 x 6"

BOLT, feed conveyor chain tightener

2шт.

7/16 C-Z nut

4шт.

2

M79156

BUSHING

feed conveyor chain tightener bot

2шт.

3

583930R1

ARM

feeder lower shift, LH adjusting

1шт.

3

583931R1

ARM

feeder lower shift, RH adjusting

1шт.

3/8 x 7 mach bolt

2шт.

425-126

SLOTTED NUT,3/8"-16, G5

3/8 slt nut

2шт.

3/32 x 3/4 cotter pin

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

13/32 x 3/4 x 16 GA washer

4шт.

4

584013R1

STOP

feeder lower shaft adjusting arm bolt

2шт.

3/8 x 1-1/4 mach bolt w/nut

2шт.

3/8 lockwasher

2шт.

5

571424R1

FLANGE

feeder lower shift bearing

4шт.

6

565618R11

RETAINER

COLLAR ASSY, w/set screw, For use with bearing 565617R91

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 x 1/4 cup-pt set screw

1шт.

6

561211R11

COLLAR

ASSY, w/set screw, For used with bearing 561210R92

2шт.

7

565617R91

BALL BEARING

ball, Optional for bearing 561210R92

2шт.

7

561210R92

BEARING

ball, Optional for bearing 565617R91

2шт.

8

564974R1

SHAFT, feeder lower

1шт.

9

588567R11

DRAG LINK

LINK W/COTTER AND PIN ASSY, attaching

1шт.

10

588565R1

AXLE PIN

PIN, attaching link

4шт.

1/8 x 1/2 cotter pin

4шт.

11

SLAT, feed conveyor chain, Ordering slat assy 588568R91, ref. no. 12

1шт.

12

588568R91

SLAT

W/LINK AND PIN ASSY, feed conveyor chain, (18) used on machines equipped with 13.6/12-26, 14.9/13-26, 16.9/14-26 main wheel tires, (19) used on machines equipped with 18.4/15-26 main wheel tires, (22) used on machines equipped with 23.1/18-26 main wh

1шт.

13

584367R91

CHAIN (AG)

CHAIN W/SLATS, feed conveyor, For machines equipped with 13.6/ 12-26, 14.9/13-26, 16.9/14-26 main wheel tires

1шт.

13

584369R91

CHAIN (CE)

CHAIN W/SLATS, feed conveyor, For machines equipped with 18.4/ 15-26 main wheel tires

1шт.

13

589828R91

CHAIN W/SLATS, feed conveyor, For machines equipped with 23.1/ 18-26 main wheel tires

1шт.

14

631318R1

DEFLECTOR, feed conveyor chain LH

1шт.

14

631319R1

DEFLECTOR, feed conveyor chain, RH, rice

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-rd-hd mach screw

6шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-rd-hd mach screw

2шт.

1/4 nut

8шт.

1/4 lockwasher

8шт.

15

564330R1

EXTENSION, feed plate, Not for use with bean special or windrow special, See note

1шт.

16

564918R1

ROD, feed plate extension hinge, Not for use with bean special

1шт.

17

631625R92

FEEDER W/BOTTOM, sides and top, Includes ref. no. 18, For machines equipped with 13.6/12-26, 14.9/13-26, 16.9/14-26 main wheel tires

1шт.

17

631626R92

FEEDER W/BOTTOM, sides and top, Includes ref. no. 18, For machines equipped with 18.4/15-26 main wheel tires

1шт.

17

631627R92

FEEDER W/BOTTOM, sides and top, Includes ref. no. 18, For machines equipped with 23.1/18-26 main wheel tires

1шт.

5/16 x 3/4 crg bolt w/nut

9шт.

5/16 x 1 crg bolt w/nut

2шт.

3/8 x 3/4 crg bolt w/nut

1шт.

7/16 x 1 crg bolt w/nut

8шт.

1/2 nut

4шт.

1/2 x 1 cap screw

4шт.

5/16 lockwasher

11шт.

3/8 lockwasher

1шт.

7/16 lockwasher

8шт.

1/2 lockwasher

4шт.

18

631633R1

CAGE

BOX, feeder upper shaft brg

2шт.

19

455104R11

COLLAR

W/SET SCREW ASSY, locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 x 3/8 cup-pt set screw

2шт.

20

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

ball

2шт.

21

564973R1

SHAFT, feeder pivot

1шт.

22

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

feeder upper sprocket gib, 3/8 x 3/8 x 1-1/2

2шт.

23

564968R1

SPROCKET ASSY.

SPROCKET, feeder support, 10T

2шт.

24

626613R1

SHIELD

feeder shaft end

2шт.

5/16 x 3/4 crg bolt w/nut

4шт.

5/16 lockwasher

4шт.

11/32 x 3/4 x 16 GA washer

4шт.

25

564918R1

ROD, feeder upper door hinge

1шт.

26

565327R91

DOOR W/FLANGE, feeder upper shaft, For machines equipped with 13.6/12-26, 14.9/13-26, 16.9/14-26 and 18.4/15-26 main wheel tires

1шт.

26

589831R91

DOOR W/FLANGE, feeder upper shaft, For machines equipped with 23.1/18-26 main wheel tires

1шт.

27

626615R1

SHEET

SHIELD, feeder pivot shaft center

1шт.

5/16 x 3/4 crg bolt w/nut

4шт.

5/16 lockwasher

4шт.

11/32 x 3/4 x 16 GA washer

4шт.

28

937932R1

BELT

V-BELT, Feeder drive

1шт.

28

156062C1

V-BELT,1.26" W x 114.48" L

Feeder Drive, Windrow Special 1.26" W x 114.48" L

1шт.

29

571467R1

SHEAVE, feeder driven, Serial no. 7277 & below

1шт.

29

568937R21

PULLEY

SHEAVE ASSY, feeder driven, Serial no. 7278 & above

1шт.

5/16 x 2-1/2 mach bolt w/nut

4шт.

5/16 lockwasher

4шт.

30

150493C11

PULLEY ASSY, feeder drive

1шт.

3/8 x 1-1/4 cap screw

4шт.

3/8 nut

4шт.

3/8 lockwasher

4шт.

31

633516R91

GUIDE W/SUPPORT, feeder drive belt

1шт.

5/16 x 2 crg bolt w/nut

2шт.

5/16 lockwasher

2шт.

32

564493R1

HUB, feeder driven sheave

1шт.

33

240

KEY,Gib, 3/8" Sq x 2 1/2"

feeder driven sheave hub gib, 3/8 x 3/8 x 2-1/2

1шт.

34

568939R2

SPACER

platform jackshaft drive sheave

1шт.

35

564568R11

SHEAVE ASSY, platform jackshaft drive, 10 ft. and 12 ft., Serial no. 9427 & below, grain, Serial no. 9428 & above

1шт.

35

150815C11

PULLEY ASSY, platform jackshaft drive, 10 ft. and 13 ft. rice, Serial no. 9428 & above

1шт.

36

571467R1

SHEAVE, platform jackshaft drive, 13 ft. and 14 ft.

1шт.

36

568937R21

PULLEY

SHEAVE ASSY, platform jackshaft drive, 14 ft.

1шт.

36

564568R11

PULLEY ASSY, platform jackshaft drive, 13 ft.

1шт.

37

633724R2

V-BELT,0.88" W

Platform jackshaft drive, 10 ft., 12 ft. or 13 ft. machines equipped with 13.6/12-26, 14.9/13-26 and 16.9/14-26 tires 0.88" W

1шт.

37

633726R2

V-BELT,0.88" W

Platform jackshaft drive, 10 ft., 12 ft. or 13 ft. machines equipped with 18.4/15-26 tires, Serial no. 9427 & below 0.88" W

1шт.

37

150814C1

BELT, platform jackshaft drive, 12 ft. or 13 ft. machines equipped with 18.4/15-26 main wheel tires, Serial no. 9428 & above

1шт.

37

633727R1

V-BELT,0.88" W

Platform jackshaft drive, 10 ft., 12 ft. or 13 ft. machines equipped with 23.1/18-26 tires, Serial no. 9427 & below 0.88" W

1шт.

37

569663R1

V-BELT, Platform jackshaft drive, 12 ft. or 13 ft. machines equipped with 23.1/18-26 main wheel tires, Serial no. 9428 & above

1шт.

37

569845R1

V-BELT, Platform jackshaft drive, 14 ft. machines equipped with 13.6/12-26, 14.9/13-26, and 16.9/14-26 main wheel tires

1шт.

37

633723R2

V-BELT,1.26" W

Platform jackshaft drive, 14 ft. machines equipped with 18.4/15-26 main wheel tires 1.26" W

1шт.

38

565333R1

BRACKET, platform jackshaft tightener, 10 ft. and 12 ft.

1шт.

1/2 x 2-3/4 crg bolt w/nut

1шт.

1/2 lockwasher

1шт.

17/32 sq-hole x 1-1/4 x 14 GA washer

1шт.

17/32 x 1 x 11 GA washer

4шт.

17/32 x 1-1/4 x 16 GA washer

1шт.

38

569037R1

BRACKET, platform jackshaft belt tightener, 13 ft. and 14 ft.

1шт.

5/8 x 3/4 crg bolt w/nut

1шт.

5/8 lockwasher

1шт.

21/32 x 1-1/4 x 11 GA washer

2шт.

575812R1

WASHER

23/32 x 1-1/2 x 11 GA washer

1шт.

557270R1

WASHER

29/32 x 1-1/4 x 11 GA washer

1шт.

39

M76945

SPACER, platform jackshaft tightener, 10 ft. and 12 ft.

1шт.

40

566518R91

PULLEY,152.4mm Idler Dia x 171.45mm OD x 38.1mm W

SHEAVE, platform jackshaft drive belt tightener, 10 ft. & 12 ft.

1шт.

41

568941R11

PULLEY

SHEAVE, platform jackshaft drive belt tightener, 13 ft. & 14 ft.

1шт.

42

M23538

WASHER

platform jackshaft drive belt tightener hub, 13 ft. & 14 ft.

1шт.

43

ST1302

BEARING

roller, 13 ft. and 14 ft.

1шт.

44

632592R1

BUSHING

RACE, cylindrical roller unit, 13 ft. and 14 ft.

1шт.

45

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , 13 ft. and 14 ft. 1/8"-27 x .66 lg

1шт.

44

632591R11

HUB

W/BEARING, race and washer assy, platform jackshaft drive belt tightener, Includes ref. nos. 42, 43 and 44, 13 ft. and 14 ft.

1шт.

3/8 x 1 cap screw

3шт.

3/8 nut

3шт.

3/8 lockwasher

3шт.

47

22847KA

BUSHING

platform jackshaft drive belt tightener sheave, 13 ft. and 14 ft.

1шт.

48

565644R1

RING, SNAP

SNAP RING, platform jackshaft, Serial no., Serial Range: 501-4806

1шт.

49

633711R1

SPROCKET ASSY.

SPROCKET, platform auger and reel drive, 10T, 10 ft. and 12 ft.

1шт.

49

633715R1

SPROCKET ASSY.

SPROCKET, platform auger and reel drive, 17T, 13 ft. and 14 ft.

1шт.

49

634127R91

SPROCKET W/HUB, platform auger drive, 20T, special, For machines equipped with platform less cutting parts

1шт.

49

589148R91

SPROCKET W/HUB, platform auger and reel drive, 15T, slow speed, 14 ft.

1шт.

50

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

platform jackshaft bearing, (2) used for 10 ft., 12 ft. and 13 ft., Serial no. 501 to 4806, (2) used for inner 14 ft., Serial no. 4807 to 9957, (4) used for 10 ft. and 13 ft., Serial no. 4807 to 7277, (3) used for 10 ft. and 13 ft., Serial no. 727

1шт.

3/8 x 3/4 crg bolt w/nut

6шт.

3/8 lockwasher

6шт.

50

617863R1

FLANGED BEARING

platform jackshaft bearing, (4) used for 14 ft., Serial no., Serial Range: 501-4806

1шт.

50

617863R1

FLANGED BEARING

platform jackshaft bearing, outer, (2) used for 14 ft., Serial no. 4807 & above

1шт.

50

937521R1

FLANGE

platform jackshaft inner bearing, (1) used for 10 ft. and 14 ft.

1шт.

51

617668R91

BALL BEARING

ball, 10 ft. and 12 ft., Serial no. 501 to 4806, (1) used for outer 10 ft. and 13 ft., Serial no. 4807 & above

2шт.

51

571588R91

BALL BEARING

BEARING, ball, (2) used for 13 ft. and 14 ft., Serial no. 501 to 4806, (1) used outer 14 ft., Serial no. 4807 & above

1шт.

51

937519R91

FLANGE

BEARING, ball, (1) used for inner 10 ft. and 13 ft., Serial no. 4807 & above

1шт.

51

937520R91

BALL BEARING

ball, (1) used for inner 14 ft., Serial no. 4807 & above

1шт.

52

589135R2

JACKSHAFT W/COLLAR, platform ,10 ft., Serial no., Serial Range: 501-4806

1шт.

52

654593R1

JACKSHAFT W/COLLAR, platform, 10 ft., Serial no., Serial Range: 4807-9427

1шт.

52

153094C11

SHAFT

JACKSHAFT ASSY, platform, 10 ft., Serial no. 9428 & above

1шт.

52

589136R12

JACKSHAFT W/COLLAR, platform, 12 ft., Serial no., Serial Range: 501-4806

1шт.

52

654823R11

JACKSHAFT W/COLLAR, platform, 13 ft., Serial no., Serial Range: 501-4806

1шт.

52

654594R11

JACKSHAFT W/COLLAR, platform, 13 ft., Serial no., Serial Range: 4807-9427

1шт.

52

153095C11

SHAFT

JACKSHAFT ASSY, platform, 13 ft., Serial no. 9428 & above

1шт.

52

589134R12

JACKSHAFT W/COLLAR, platform, 14 ft., Serial no., Serial Range: 501-4806

1шт.

52

654603R11

JACKSHAFT W/COLLAR, platform, 14 ft., Serial no. 4807 & above

1шт.

1/2 x 2-3/4 cap screw

1шт.

1/2 nut

1шт.

1/2 lockwasher

1шт.

1-13/32 x 2 x 16 Ga washer

1шт.

53

574049R11

SHEAVE W/HUB, platform jackshaft driven

1шт.

54

574048R1

HUB, platform jackshaft driven hseave, 10 ft., 12 ft. and 13 ft., Serial no. 9427 & below

1шт.

5/16 nut

5шт.

Q1302

HEADED PIN,5/16" x 2 1/4"

5/16 x 2-1/4 dld pin

1шт.

1/8 x 3/4 cot. pin

1шт.

5/16 x 1 cap screw

5шт.

5/16 lockwasher

5шт.

54

574048R1

HUB, platform jackshaft driven sheave, 10 ft., 12 ft. and 13 ft., Serial no. 9427 & below

1шт.

5/16 nut

5шт.

Q1302

HEADED PIN,5/16" x 2 1/4"

5/16 x 2-1/4 dld pin

1шт.

1/8 x 3/4 cot. pin

1шт.

5/16 x 1 cap screw

5шт.

5/16 lockwasher

5шт.

54

153093C1

HUB, platform jackshaft driven sheave, 10 ft. and 13 ft., Serial no. 9428 & above

1шт.

5/16 x 1 mach bolt w/nut

5шт.

5/16 lockwasher

5шт.

55

57388D

WOODRUFF KEY,#128, 5/16" x 2 1/8", HT

KEY, platform jackshaft driven sheave hub Woodruff, 5/16 x 2-1/8, 10 ft., 12 ft . and 13 ft., Serial no. 9427 & below (Replaces 117988)

1шт.

55

Q3952

KEY,Gib, 3/8" Sq x 2 3/4"

3/8 x 2-3/4 gib, 10 ft. and 13 ft., Serial no. 9428 & above

1шт.

56

574535R1

SUPPORT, platform inner bearing, 10 ft. and 12 ft., Serial no., Serial Range: 501-4806

1шт.

56

571436R1

SUPPORT, platform inner bearing, 13 ft. and 14 ft., Serial no., Serial Range: 501-4806

1шт.

56

574535R1

SUPPORT, platform inner bearing, Serial no. 4807 & above

1шт.

57

571439R1

BEARING

platform jackshaft center wood, 14 ft., Serial no., Serial Range: 501-4806

1шт.

57

936637R1

CYLINDER END CAP

BEARING, platform jackshaft center wood, 14 ft. Serial no. 4807 & above

2шт.

57

935683R1

BEARING

platform jackshaft center wood, 13 ft., Serial no., Serial Range: 501-4806

1шт.

57

936638R1

BEARING

platform jackshaft center wood, (2) used for 13 ft., Serial no. 4807 & above

1шт.

58

571438R1

SUPPORT, jackshaft bearing center, 13 ft. and 14 ft.

1шт.

3/8 x 1 cap screw

2шт.

3/8 x 3/4 cap screw

2шт.

3/8 lockwasher

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

13/32 x 1 x 16 GA washer

6шт.

59

571435R1

SHEAVE, jackshaft driven, 14 ft., Serial no., Serial Range: 501-4806

1шт.

59

654592R1

SHEAVE, jackshaft driven, 14 ft., Serial no 4807 & above

1шт.

60

Q3952

KEY,Gib, 3/8" Sq x 2 3/4"

jackshaft driven sheave gib, 3/8 x 3/8 x 2-3/4, 13 ft. and 14 ft.

1шт.

61

626612R91

SHIELD W/STIFFENER AND STRIP, feed conveyor, For machines equipped with 13.6/12-26, 14.9/13-26 and 16.9/14-26 main wheel tires

1шт.

5/16 x 3/4 crg bolt w/nut

10шт.

5/16 lockwasher

10шт.

61

626616R91

SHIELD W/STIFFENER AND STRIP, feed conveyor, For machines equipped with 18.4/15-26 main wheel wheel tires

1шт.

5/16 x 3/4 crg bolt w/nut

12шт.

5/16 lockwasher

12шт.

61

627469R91

SHIELD W/STIFFENER AND STRIP, feed conveyor, For machines equipped with 23.1/18-26 main wheel tires

1шт.

5/16 x 3/4 crg bolt w/nut

14шт.

5/16 lockwasher

14шт.

62

588564R11

LINK

connecting

1шт.

588565R1

AXLE PIN

PIN, connecting link

1шт.

63

588562R91

CHAIN LINK

LINK, offset

1шт.

588563R1

PIN, offset link

1шт.

64

584363R91

CROP W/HUB, feed conveyor lower, Serial no. 9427 & below

1шт.

5/16 x 3/4 cap screw

6шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

6шт.

64

153315C91

CROP ASSY, feed conveyor lower, Serial no. 9428 & above

1шт.

5/16 C-Z nut

6шт.

5/16 C-Z internal tooth lockwasher

6шт.

65

559096R91

SHIELD W/SUPPORT, feed conveyor lower sprocket

2шт.

66

558456R1

BOLT (SPREADER),3/8" - 16 x 2 1/4"

U-BOLT, feeder lower shaft

2шт.

3/8 nut

4шт.

3/8 lockwasher

4шт.

67

558455R1

STRAP

SHIM, feeder shaft U-bolt

8шт.

68

PC144

SPRING, feeder lower adjusting

4шт.

69

937521R1

FLANGE

platform jackshaft bearing inner, (1) used for 10 ft. and 13 ft., Serial no. & above

1шт.

70

568939R2

SPACER

feeder driven sheave, Serial no. & above

1шт.

71

588984R1

PULLEY, feeder drive, slow speed feeder drive attachment

1шт.

72

589145R1

V-BELT 1.26" W, Feeder drive, Slow speed feeder drive attachment 1.26" W

1шт.

73

936639R1

SHIM

center bearing

1шт.

74

152307C11

PULLEY ASSY, split feeder drive, For machines equipped with three row corn head, Serial no. 7278 & above

1шт.

17488R1

1/2 x 1-1/4 mach bolt

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

19328R1

LOCK PIN,3/8" x 3/4", Slotted

2шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

7/16 x 1-1/2 std-hd-dld

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

75

565309R1

BOTTOM, feeder, grain

1шт.

75

569525R1

BOTTOM, feeder, rice or grain, w/18.4/15-26 main wheel tires

1шт.

76

654436R1

COLLAR, platform jackshaft

1шт.

FOOTNOTE

1шт.

REF#96 SHOULD READ 382944R1 11/8/96

1шт.
