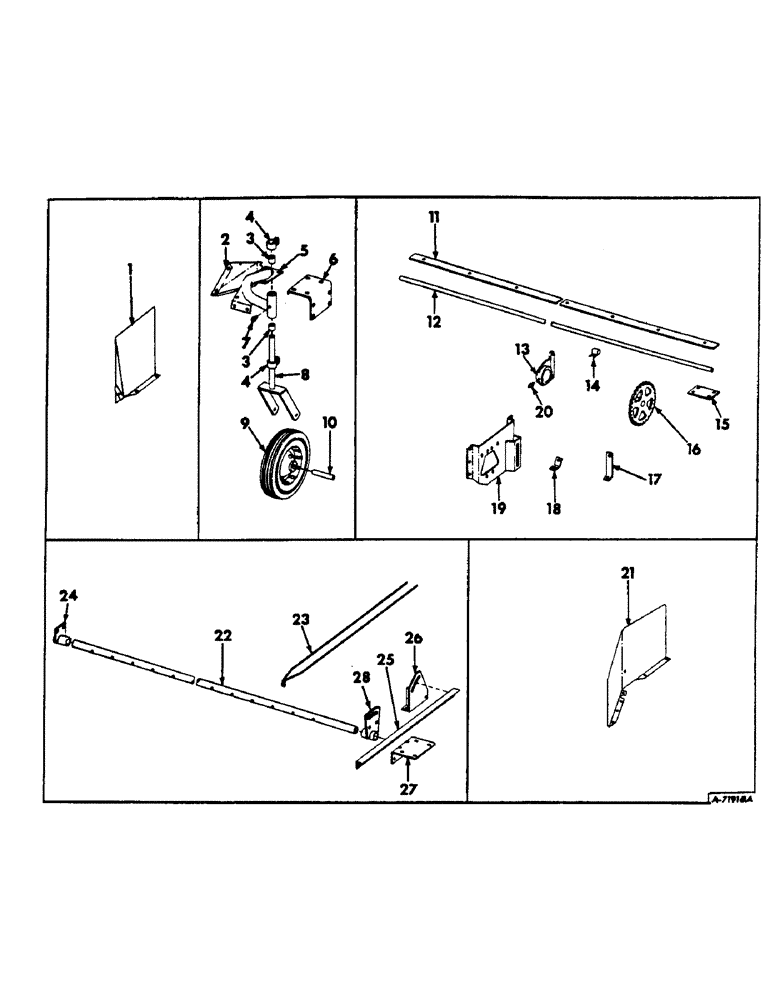

Запчасти Case IH 303 (291) - WINDROW PICKUP, BELT TYPE (58) - ATTACHMENTS/HEADERS

1

634098R1

SHIELD, wind deflector LH, Unit A, grain

1шт.

1

634099R1

SHIELD, wind deflector RH, Unit A, grain

1шт.

1/4 x 1/2 crg bolt w/nut

2шт.

5/16 x 3/4 crg bolt w/nut

4шт.

1/4 lockwasher

2шт.

5/16 lockwasher

4шт.

2

633002R1

SHIELD, wheel support LH, Unit B, grain

1шт.

2

633003R1

SHIELD, wheel support RH, Unit B, grain

1шт.

1/4 x 1/2 crg bolt w/nut

4шт.

1/4 lockwasher

4шт.

3

454172R1

BUSHING

wheel pivot shaft housing, Unit B, grain

4шт.

4

633000R1

CLAMP, yoke pivot shaft, Unit B, grain

4шт.

7/16 x 1-1/2 crg bolt w/nut

4шт.

7/16 lockwasher

4шт.

5

155261C91

SUPPORT ASSY, gauge wheel LH, Includes ref. no. 3, Unit B, grain

1шт.

5

155262C91

SUPPORT ASSY, gauge wheel RH, Includes ref. no. 3, Unit B, grain

1шт.

6

632998R91

STIFFENER W/GUSSET, wheel anchor, Unit B, grain

1шт.

1/4 x 1/2 crg bolt w/nut

2шт.

3/8 x 1-3/4 crg bolt w/nut

8шт.

1/4 lockwasher

2шт.

3/8 lockwasher

8шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication, Unit B, grain

2шт.

8

632993R91

YOKE W/SIDES, gauge wheel, Unit B, grain

2шт.

1/2 x 5-3/4 mach bolt w/nut

2шт.

1/2 lockwasher

2шт.

9

633001R92

WHEEL W/TIRE ASSY, gauge, Unit B, grain

2шт.

10

632990R1

BUSHING

SLEEVE, gauge wheel hub, Unit B, grain

2шт.

25/32 x 1-1/2 x 16 ga washer

4шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga washer

4шт.

551658R1

WASHER

25/32 x 1-1/4 x 22 ga washer

4шт.

11

633140R1

PAD, finger wear, Unit C

1шт.

12

633130R1

STRIPPER, finger, Unit C

1шт.

13

633134R1

BRACKET

LH pivot, Unit C

2шт.

7/16 x 1-1/4 mach bolt w/nut

4шт.

14

633131R1

CLIP, finger stripper, Unit C

12шт.

3/8 x 1 crg bolt w/nut

12шт.

3/8 lockwasher

12шт.

15

633139R1

STRAP, pickup support anchor, Unit C

1шт.

3/8 x 1 crg bolt w/nut

8шт.

3/8 lockwasher

8шт.

16

633147R1

SPROCKET, main drive, Unit C

1шт.

1/8 x 3/4 cotter pin

1шт.

AB5331

5/16 x 2-1/8 dld pin

1шт.

17

633143R1

STRAP, jackshaft shield upper, Unit C

1шт.

18

633144R1

STRAP, jackshaft shield lower

2шт.

3/8 x 3/4 crg bolt w/nut

2шт.

5/16 x 3/4 mach bolt w/nut

2шт.

5/16 lockwasher

4шт.

19

633136R91

SUPPORT W/BRACKET, jackshaft drive bearing bracket, Unit C

1шт.

20

16964R1

FITTING

1/4 90 deg elbow lubrication

1шт.

21

634095R11

SHIELD W/ROD ASSY, wind deflector LH, Unit D, grass

1шт.

21

634096R11

SHIELD W/ROD ASSY, wind deflector RH, Unit D, grass

1шт.

5/16 x 3/4 crg bolt w/nut

12шт.

5/16 lockwasher

12шт.

22

653932R91

HOLDER, finger, Units E and F

1шт.

23

634092R1

FINGER, Unites E and F

13шт.

1/4 x 1-1/4 crg bolt w/nut

13шт.

1/4 lockwasher

13шт.

24

634081R91

SUPPORT ASSY, finger holder RH, Units E and F

1шт.

3/8 x 1 crg bolt w/nut

2шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

3/8 x 1 sq-hd cup-pt set screw

1шт.

3/8 lockwasher

2шт.

25

634090R1

ARM, finger holder LH, Units E and F

1шт.

25

634091R1

ARM, finger holder RH, Units E and F

1шт.

26

634084R91

BRACKET W/GUSSET, LH arm, Units E and F

1шт.

26

634085R91

BRACKET W/GUSSET, RH arm, Units E and F

1шт.

3/8 x 1-1/4 crg bolt w/nut

4шт.

1/2 x 1 crg bolt w/nut

4шт.

3/8 lockwasher

4шт.

1/2 lockwasher

4шт.

27

634482R1

STIFFENER, anchor, Unit E

2шт.

3/8 x 1-1/4 crg bolt w/nut

8шт.

5/16 x 1-1/4 mach bolt w/nut

2шт.

5/16 lockwasher

2шт.

3/8 lockwasher

8шт.

28

653930R91

SUPPORT ASSY, finger holder LH, Units E and F

1шт.

3/8 x 1 crg bolt w/nut

2шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

3/8 x 1 sq-hd cup-pt set screw

1шт.

3/8 lockwasher

2шт.
