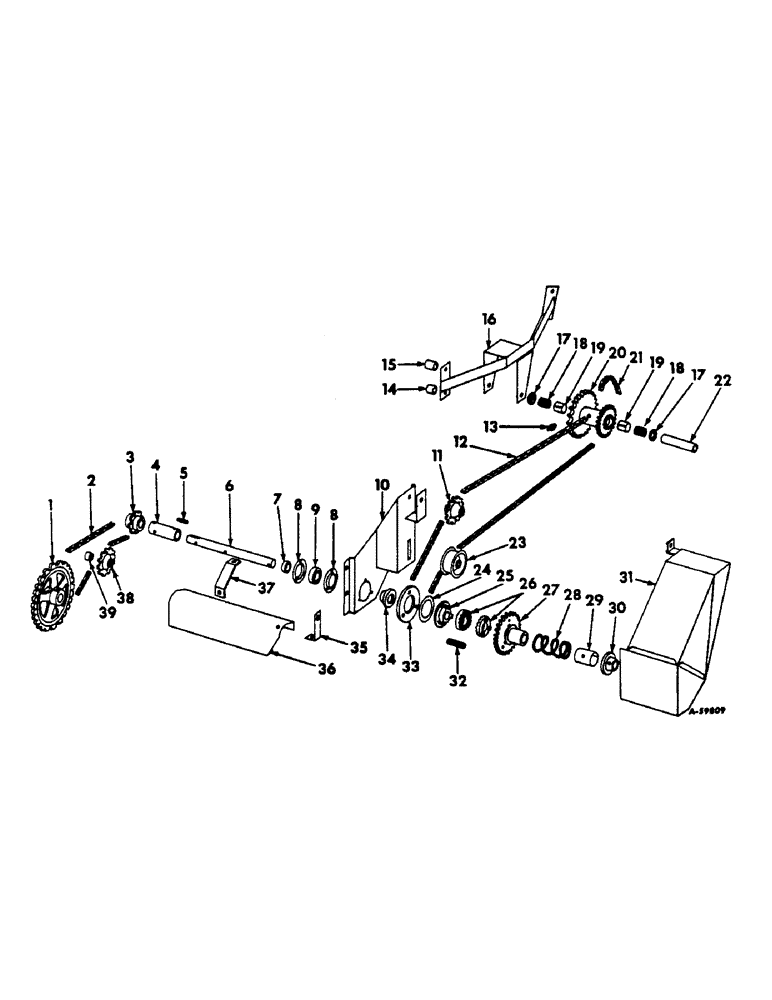

Запчасти Case IH 303 (274) - WINDROW PICKUP DRIVE, ROTARY TYPE (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
552271R1
SPROCKET, main shaft driven
1шт.
551680R1
DOWEL
5/16 x 2-7/16 dld-hd pin
2шт.
1/8 x 3/4 cotter pin
2шт.
2
CHAIN, pickup drive, 1 in. pitch agricultural transmission type, Use 43 links from 10 ft. roll marked 569088R91, (1) offset link 457114R91 and (1) connecting link, 457113R91
1шт.
3
2562KA
SPROCKET, roller drive, regular, 8T
1шт.
3
2474KC
SPROCKET, roller drive, slow speed, 7T
1шт.
4
588633R11
COUPLING ASSY, jackshaft
1шт.
137
1/4 x 5/16 x 1-5/16 straight dld key
2шт.
5
Q480
KEY, 5/16 x 1/4 x 1 straight
1шт.
6
587827R1
JACKSHAFT, drive, 10 ft. platform
1шт.
6
584319R1
JACKSHAFT, drive, 12 ft. platform
1шт.
6
935459R1
JACKSHAFT, drive, 13 ft. platform
1шт.
6
587828R1
JACKSHAFT, drive, 14 ft. platform
1шт.
Q3480
WASHER
1-3/32 x 1-1/2 x 11 ga washer
1шт.
7
455102R11
COLLAR
W/SET SCREW ASSY
1шт.
8
571424R1
FLANGE
jackshaft bearing
2шт.
5/16 x 3/4 crg bolt w/nut
3шт.
5/16 lockwasher
3шт.
9
455965R91
BALL BEARING,1.0005" ID x 52 mm OD x 15 mm
ASSY, jackshaft
1шт.
10
584285R92
BRACKET, w/strap, jackshaft drive inner bearing
1шт.
5/16 x 3/4 crg bolt w/nut
6шт.
5/16 x 1 crg bolt w/nut
1шт.
1/4 nut
1шт.
113959
SCREW,Sl Rnd Hd, 1/4" - 20 x 1"
1/4 x 1 rd-hd-sltd screw
1шт.
1/4 lockwasher
1шт.
5/16 lockwasher
7шт.
11/32 x 3/4 x 16 ga washer
2шт.
11
565511R91
BEARING
SPROCKET ASSY, jackshaft drive chain idler
1шт.
1/2 x 2-3/4 crg bolt w/nut
1шт.
1/2 lockwasher
1шт.
17/32 x 1 x 16 ga washer
1шт.
17/32 x 1 x 11 ga washer
1шт.
575811R1
WASHER
23/32 x 1-1/4 x 16 ga washer
1шт.
12
CHAIN, jackshaft drive, 1 in. pitch agricultural transmission type, Use 82 links from a 10 ft. roll marked 569088R91, (2) offset links, 457114R91 and (1) connecting link, 457113R91
1шт.
13
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING, 1/8 straight lubrication
1шт.
14
588736R1
SPACER
sprocket support
1шт.
15
12302N
SPACER,1/4" Pipe x 15/16"
sprocket support
3шт.
16
567795R91
BRACKET W/BRACE, drive sprocket support
1шт.
5/16 x 1-3/4 mach bolt w/nut
2шт.
5/16 x 2 mach bolt w/nut
2шт.
1/2 x 5-1/4 crg bolt w/nut
1шт.
5/16 lockwasher
4шт.
1/2 lockwasher
1шт.
551657R1
23/32 x 1-1/4 x 22 ga washer
1шт.
17
557189R91
SEAL
OIL SEAL, drive sprocket hub
2шт.
18
568029R91
BEARING ASSY,25.4mm ID x 35mm OD x 25.4mm W
BEARING ASSY, drive sprocket hub
2шт.
19
588997R1
BUSHING,34.99mm ID x 36.55mm OD x 25.27mm L
RACE, drive sprocket hub bearing
2шт.
20
572226R91
SPROCKET ASSY, pickup drive, 10 ft., 12 ft. or 13 ft. platforms
1шт.
21
CHAIN, auger drive roller extension, Use 5 links of 1-1/4 extended pitch, agricultural, roller chain from a 10 ft. roll marked 569089R91 and (1) connecting link, 456980R91, 10 ft., 12 ft. or 13 ft. platforms
1шт.
22
567804R1
SLEEVE, drive sprocket
1шт.
1-1/32 x 1-3/4 x 16 ga washer
1шт.
1-1/32 x 1-3/4 x 22 ga washer
2шт.
23
559168R91
PTO
SHEAVE ASSY, drive chain tightener
1шт.
1/2 x 2-1/4 crg bolt w/nut
1шт.
1/2 lockwasher
1шт.
17/32 x 1 x 16 ga washer
1шт.
17/32 x 1 x 11 ga washer
1шт.
575811R1
WASHER
23/32 x 1-1/4 x 16 ga washer
1шт.
24
587637R1
WASHER, slip clutch thrust
1шт.
25
550960R1
HOLDER, slip clutch ratchet
1шт.
26
12102L
RATCHET
slip clutch
2шт.
27
567793R92
SPROCKET, w/hub jackshaft driven
1шт.
552225R1
1-21/32 x 2-1/2 x 16 ga washer
1шт.
28
M1456
SPRING, jackshaft throw-out
1шт.
29
584150R1
BUSHING
jackshaft sprocket
1шт.
30
M5508
COLLAR, jackshaft throw-out
1шт.
Q3516
PIN
1/4 x 2 dld pin
1шт.
1/8 x 3/4 cotter pin
1шт.
31
584283R91
SHIELD W/CLIP, slip clutch
1шт.
5/16 x 3/4 crg bolt w/nut
3шт.
5/16 lockwasher
3шт.
32
M74156
SPRING
slip clutch
3шт.
33
567792R1
PLATE, slip clutch
1шт.
3/8 x 4 dld crg bolt
3шт.
109886
NUT
3/8 sltd nut
3шт.
3/32 x 3/4 cotter pin
3шт.
13/32 x 3/4 x 16 ga washer
3шт.
34
550959R1
RATCHET, jackshaft throw-out
1шт.
U18183
PIN, throw-out ratchet
1шт.
1/8 x 3/4 cotter pin
2шт.
35
584288R1
STRAP, jackshaft drive shield RH, See ref. no. 37, Not 10 ft. platforms
1шт.
35
567852R1
STRAP, jackshaft drive shield LH, Not 10 ft. platforms
1шт.
5/16 x 3/4 mach bolt w/nut
1шт.
5/16 lockwasher
1шт.
36
584287R1
SHIELD, jackshaft drive, 12 ft. platform
1шт.
36
935458R1
SHIELD, jackshaft drive, 13 ft. platform
1шт.
36
587832R1
SHIELD, jackshaft drive, 14 ft. platform
1шт.
36
587834R1
SHIELD, jackshaft drive, 16 ft. platform
1шт.
5/16 x 3/4 crg bolt w/nut
1шт.
5/16 lockwasher
1шт.
37
584288R1
STRAP, jackshaft drive shield RH
1шт.
5/16 x 3/4 crg bolt w/nut
1шт.
5/16 lockwasher
1шт.
38
565336R91
BEARING
SPROCKET ASSY, drive chain tightener
1шт.
1/2 x 2-3/4 crg bolt w/nut
1шт.
1/2 lockwasher
1шт.
17/32 x 1 x 16 ga washer
1шт.
39
576271R1
SPACER
drive chain tightener sprocket
1шт.
Выбрано товаров: 99
