(223) - PLATFORM AUTOMATIC CONTROL ATTACHMENT FLOW, CONTROL VALVE

Запчасти Case IH 303 (223) - PLATFORM AUTOMATIC CONTROL ATTACHMENT FLOW, CONTROL VALVE (58) - ATTACHMENTS/HEADERS

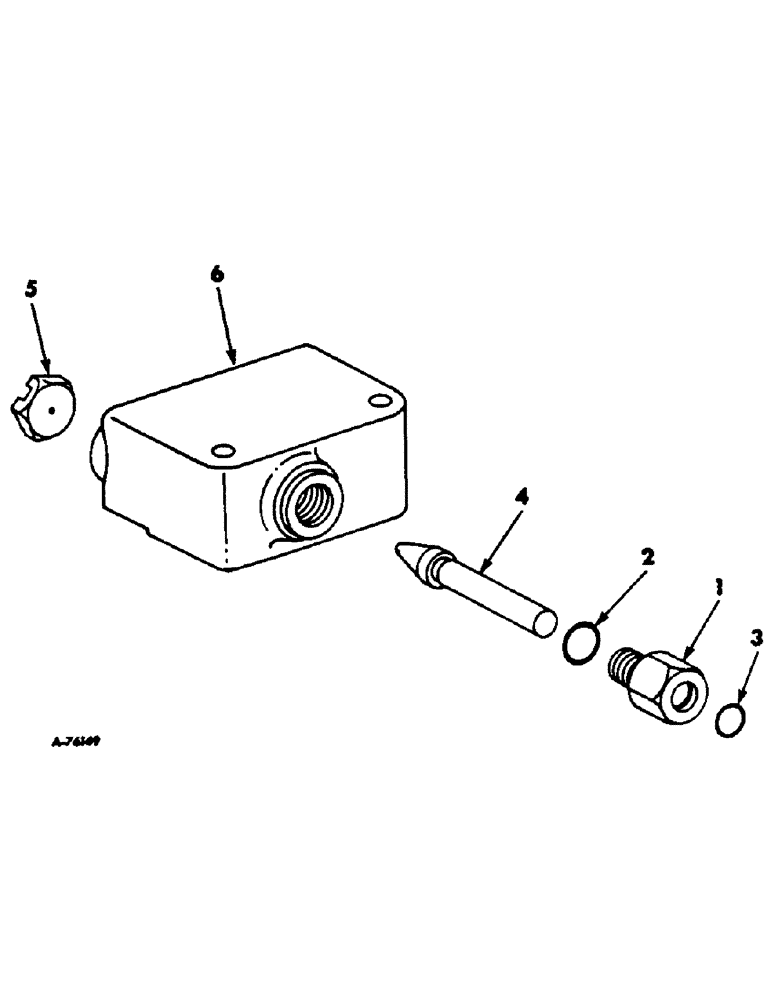

Схема запчастей Case IH 303 - (223) - PLATFORM AUTOMATIC CONTROL ATTACHMENT FLOW, CONTROL VALVE (58) - ATTACHMENTS/HEADERS
6
5
3
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

155199C91

VALVE

ASSY, flow control

1шт.

1

937202R1

PLUG

metering pin

1шт.

2

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32

1шт.

3

310926R1

O-RING

3/8 x 9/16 x 3/32

1шт.

4

937204R1

PIN

metering

1шт.

5

937201R1

PLUG

PLATE, orifice

1шт.

6

BODY, Order valve assy, 155199C91

1шт.

Выбрано товаров: 7
