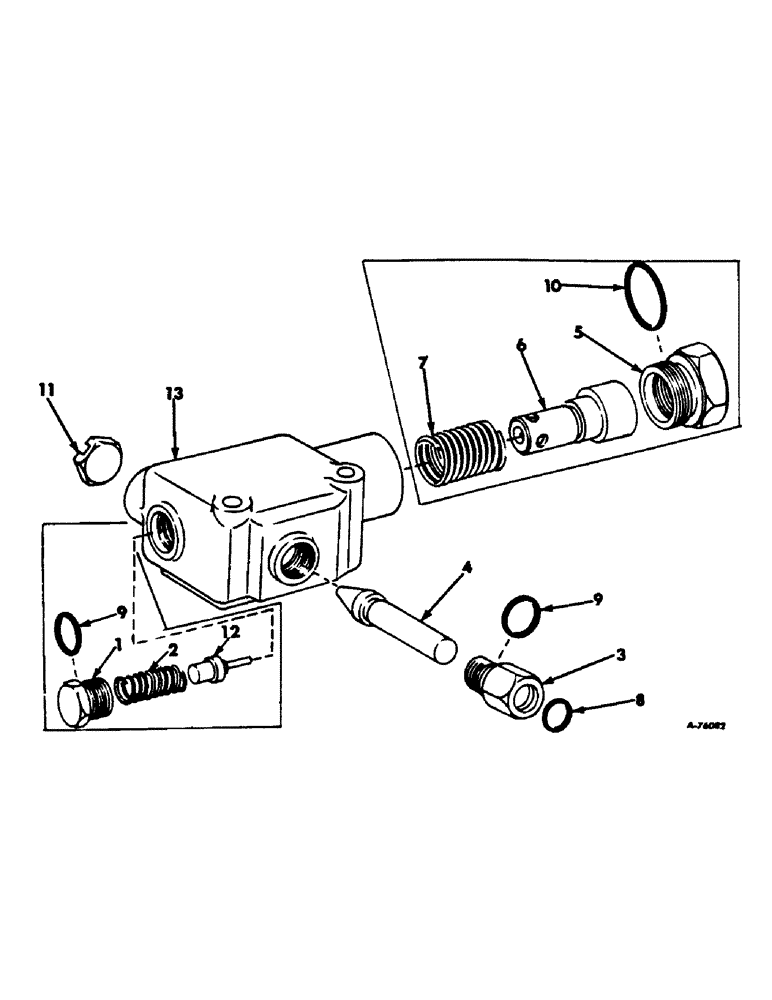

Запчасти Case IH 303 (222) - PLATFORM AUTOMATIC CONTROL ATTACHMENT FLOW, CONTROL VALVE (58) - ATTACHMENTS/HEADERS

936898R91

VALVE ASSY, flow control

1шт.

1

588347R1

PLUG, hex

1шт.

2

574789R1

SPRING

lockout, For valve, 936898R91

1шт.

3

937202R1

PLUG

BUSHING, meter pin plug

1шт.

4

937204R1

PIN

metering

1шт.

5

937203R1

BUSHING, adapter plug

1шт.

6

937205R1

PLUNGER, lockout

1шт.

7

937200R1

SPRING, lockout plunger

1шт.

8

310926R1

O-RING

3/8 x 9/16 x 3/32

1шт.

9

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32

1шт.

10

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.

11

937201R1

PLUG

VENT

1шт.

12

937206R91

VALVE ASSY, poppet repair, Composed of

1шт.

310926R1

O-RING

1шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

2шт.

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

13

BODY, Not serviced separately, order valve assy, 936898R91

1шт.
