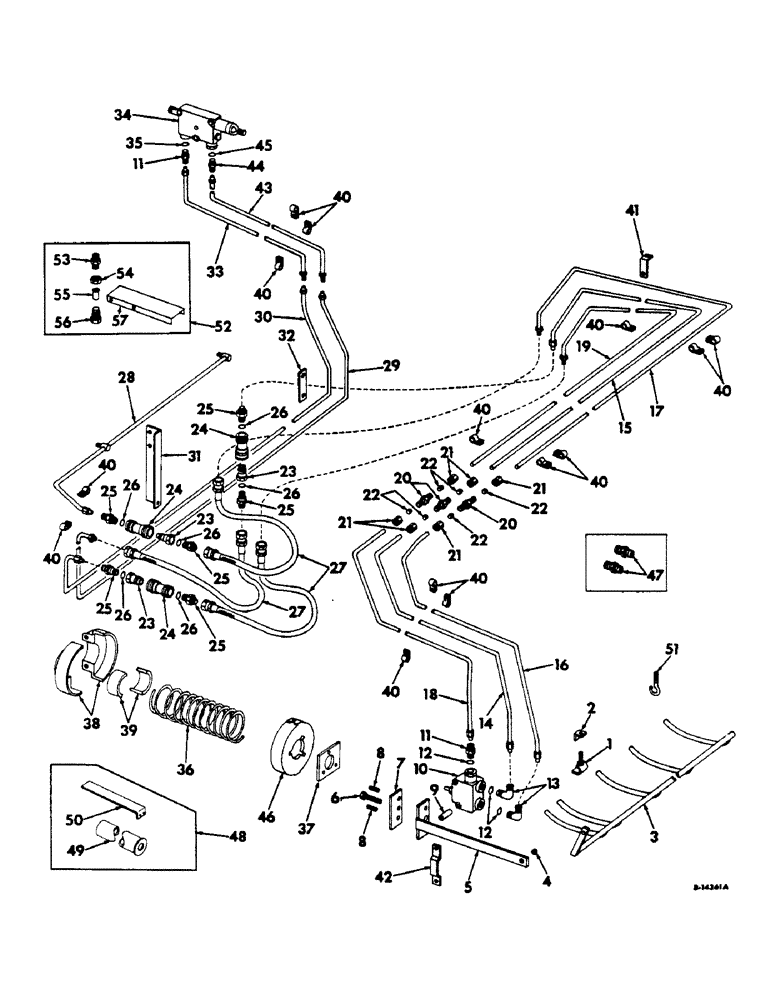

Запчасти Case IH 303 (217) - PLATFORM AUTOMATIC CONTROL ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

151204C91

BRACKET ASSY, finger retainer, Serial no. 11763 & below

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga washer

6шт.

2

589138R1

ANGLE, finger retainer bracket, Serial no. 11763 & below

6шт.

3

150412C91

FINGER

ASSY, Serial no. 11763 & below

1шт.

3

159783C91

FINGER ASSY, automatic control, Serial no. 11764 & above

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z mach bolt

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga washer

1шт.

4

556587R1

SPACER

valve control bar

1шт.

5

936751R1

BAR ASY, valve control

1шт.

18770R1

BOLT,Hex, 5/16"-18 x 2 3/4", G2

5/16 x 2-3/4 C-Z mach bolt

2шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

JAM .313 UNC GR5 YZD

4шт.

Q397

WASHER

11/32 x 3/4 x 16 ga washer

4шт.

6

552301R1

BOLT, 3/8 x 2 sq-hd mach bolt

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

7

936759R1

BAR, spring retainer

1шт.

8

15258E

SPRING

2шт.

9

23323H

SPACER,1/4" Pipe x 1/2"

platform automatic control valve

2шт.

10

936898R91

VALVE ASSY, flow control, For components see list of parts under details of flow control valve, Serial no., Serial Range: 4807-9427

1шт.

10

155199C91

VALVE

ASSY, flow control, For components see list of parts under details of flow control valve, Serial no. 9428 & above

1шт.

11

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube

2шт.

12

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

13

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg hyd flared tube 90 deg

2шт.

14

936933R1

TUBE ASSY, flow control valve to lower return, Serial no. 9427 & below

1шт.

14

936933R11

TUBE ASSY, flow control valve to lower pressure, Serial no. 9428 & above

1шт.

15

936932R11

TUBE ASSY, flow control valve to upper return, Serial no. 9427 & below

1шт.

15

155195C91

TUBE ASSY, flow control valve to upper pressure, Serial no. 9428 & above

1шт.

16

936931R11

TUBE ASSY, flow control valve to platform lift cylinder lower

1шт.

17

936930R11

TUBE ASSY, flow control valve to platform lift cylinder upper

1шт.

18

936925R11

TUBE ASSY, flow control valve to lower pressure, Serial no. 9427 & below

1шт.

18

936925R11

TUBE ASSY, flow control valve to lower return, Serial no. 9428 & above

1шт.

19

936924R11

TUBE ASSY, flow control valve to upper pressure, Serial no. 9427 & below

1шт.

19

155194C91

TUBE ASSY, flow control valve to upper return, Serial no. 9428 & above

1шт.

20

9409300

HYD CONNECTOR,Flareless, 3/4"-16

UNION, 3/4-16 hyd flare

3шт.

21

9409524

NUT,3/4"-16, Flareless

3/4-16 hyd flare

6шт.

22

222-1585

FERRULE,Flareless, 1/2" Tube

FERRULE, 1/2

6шт.

23

395149R1

QUICK MALE COUPLING

COUPLING ASSY, self sealing male

3шт.

24

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, self sealing female

3шт.

25

587578R1

CONNECTOR, ELEC

CONNECTOR, 7/8-14 37 deg

6шт.

26

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

6шт.

27

587582R91

HOSE ASSY.

HOSE ASSY, self sealing connector

3шт.

28

936929R91

TUBE ASSY, platform lift cylinder

1шт.

29

936926R11

TUBE ASSY, main axle upper

1шт.

30

936927R11

TUBE ASSY, main axle lower

1шт.

31

936909R1

ANGLE, main axle pipe clip support

1шт.

32

936911R1

STRAP, main axle pipe clip support

2шт.

33

936928R11

TUBE ASSY, control valve to main axle

1шт.

34

936897R91

VALVE ASSY, lift, For components see list of parts under lift valve, Serial no. 9427 & below

1шт.

34

159376C91

VALVE

ASSY, lift, For components see list of parts under lift valve, For rice and windrow special, Serial no. 9428 & above, For grain and bean special, Serial no., Serial Range: 9428-11764

1шт.

35

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

36

936760R2

SPRING

2шт.

37

936781R1

BLOCK, platform lift helper spring front

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z crg bolt

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

38

936779R2

FLANGE, platform lift helper spring rear

4шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z mach bolt

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

39

936940R1

BAR, platform lift helper spring rear filler

4шт.

40

587501R2

CLAMP

CLIP, hyd pip

19шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 C-Z mach bolt

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z mach bolt

1шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16 x 1-1/2 C-Z crg bolt

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

615009R1

WASHER

17/64 x 3/4 x 16 ga washer

1шт.

41

NOT USED

1шт.

42

936758R1

STRAP, automatic control valve control bar retainer

1шт.

20344R1

BOLT

5/16 x 3-1/4 C-Z mach bolt

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

43

PIPE ASSY, installed on basic machine as platform lift cylinder upper pipe and being relocted it now becomes axle lift return pipe

1шт.

44

CONNECTOR, Use same as basic machine

1шт.

45

O-RING, Use same as basic machine

1шт.

46

936778R2

FLANGE

platform lift helper spring front

2шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

4шт.

47

NOT USED

1шт.

48

PLATFORM, automatic control lift cylinder helper spring front, spacer att., special

1шт.

49

154676C91

TUBE ASSY, lift cylinder front spacer, For combines w/cylinder having 1-7/8 OD x 17 in. or 2 OD x 17 in. stroke

1шт.

49

154740C91

TUBE ASSY, lift cylinder front spacer, For combines w/cylinder having 2-1/4 OD x 17 in. stroke

1шт.

50

154703C1

SUPPORT, lift cylinder helper spring guide, For combines with cylinder having 2-1/4 OD x 5-1/2 in. stroke

1шт.

51

159780C1

EYEBOLT,3/8" - 16 x 2.20", Full Thd

BOLT, platform automatic control finger eye, Serial no. 11764 & above

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

10шт.

52

NOT USED

1шт.

53

NOT USED

1шт.

54

NOT USED

1шт.

55

NOT USED

1шт.

56

NOT USED

1шт.

57

NOT USED

1шт.
