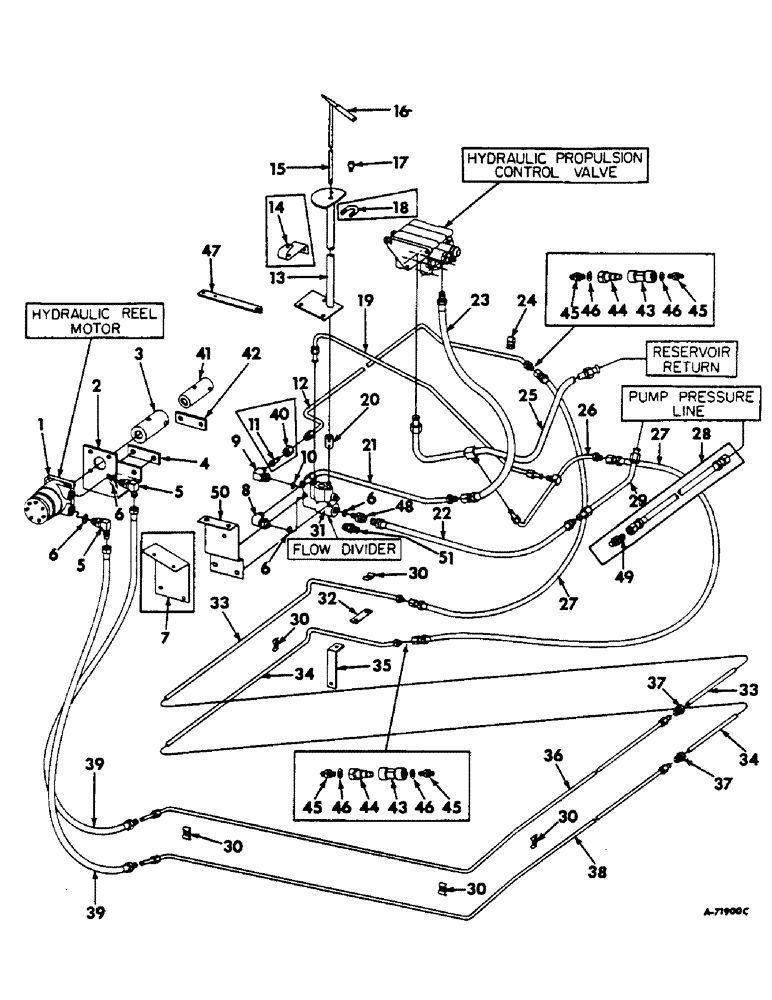

Запчасти Case IH 303 (214) - HYDRAULIC REEL DRIVE DIAGRAM, FOR MACHINES EQUIPPED WITH IH REEL (58) - ATTACHMENTS/HEADERS

1

634733R91

HYDRAULIC MOTOR

MOTOR ASSY, reel drive

1шт.

3/8 x 3/4 C-Z cap screw

4шт.

3/8 C-Z lockwasher

4шт.

2

634744R1

SUPPORT, hydraulic motor

1шт.

7/16 x 1-3/4 C-Z crg bolt w/nut

2шт.

7/16 C-Z lockwasher

2шт.

3

634745R1

SLEEVE, reel drive

1шт.

7/16 x 2-3/4 C-Z cap screw

2шт.

7/16 C-Z nut

2шт.

7/16 C-Z lockwasher

2шт.

4

634746R1

FILLER, hydraulic motor mount

1шт.

7/16 x 2 C-Z cap screw

2шт.

5

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

2шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

7

634781R1

BRACKET, flow divider support, Serial no. 7277 & below

1шт.

1/4 C-Z nut

2шт.

1/4 x 2-1/4 C-Z cap screw

2шт.

1/4 C-Z lockwasher

2шт.

8

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

1шт.

9

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

10

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

Serial no. 7277 & below

1шт.

12

634810R11

TUBE W/NUT, sleeve and spud assy, flow divider priority port to hose, Serial no. 7277 & below

1шт.

12

939679R91

PIPE ASSY, flow divider to feeder hose, Serial no. 7278 & above

1шт.

13

634767R92

MOUNTING W/INDICATOR AND STIFFENER, control handle, Serial no. 7277 & below

1шт.

13

939671R91

MOUNTING ASSY, control handle, Serial no. 7278 & above

1шт.

5/16 x 1/2 C-Z crg bolt w/nut

1шт.

5/16 x 1 C-Z crg bolt w/nut

2шт.

5/16 C-Z lockwasher

3шт.

14

634823R1

SUPPORT, control to rail, Serial no. 7277 & below

1шт.

1/4 x 1-1/4 C-Z cap screw

1шт.

1/4 C-Z nut

1шт.

1/4 C-Z lockwasher

1шт.

15

634765R92

ARM W/HANDLE, control valve, Serial no. 7277 & below

1шт.

15

939708R91

HANDLE ASSY, control valve, Serial no. 7278 & above

1шт.

16

634976R1

GRIP, flow control valve handle, Serial no. 7277 & below

1шт.

16

939928R1

GRIP, flow control valve handle, Serial no. 7278 & above

1шт.

17

634980R1

STOP, flow control valve handle

1шт.

1/4 C-Z nut

1шт.

1/4 C-Z lockwasher

1шт.

18

634824R1

U-BOLT, control to rail support, Serial no. 7277 & below

1шт.

1/4 C-Z nut

2шт.

1/4 C-Z lockwasher

2шт.

19

634809R11

TUBE W/NUT AND SLEEVE ASSY, relief valve to reel drive return, Serial no. 7277 & below

1шт.

19

939675R91

PIPE ASSY, relief valve to reel drive return, Serial no. 7278 & above

1шт.

20

634762R1

COLLAR, control valve

1шт.

1/8 x 1-1/4 cotter pin

1шт.

1/4 x 1 roll pin

1шт.

21

634807R11

TUBE W/NUT, sleeve and spud assy, pressure flow divider to control valve, Serial no. 7277 & below

1шт.

21

939674R91

PIPE ASSY, flow divider to control valve, Serial no. 7278 & above

1шт.

22

573900R91

HOSE ASSY, Serial no. 7277 & below

1шт.

22

574230R91

HOSE ASSY.

HOSE ASSY, Serial no. 7278 & above

1шт.

23

631163R91

HOSE ASSY.

HOSE ASSY

1шт.

24

589980R2

CLIP

1шт.

25

634815R1

TUBE W/NUT AND SLEEVE ASSY, lower return, Serial no. 9427 & below

1шт.

25

151454C91

PIPE ASSY, platform lift front return, Serial no. 9428 & above

1шт.

26

935435R11

TUBE W/NUT, sleeve and tee assy, motor return to platform lift return

1шт.

27

632454R91

HYDRAULIC HOSE,0.31" ID x 30.00", SAE 100R1 Class B

HOSE ASSY, reel drive feeder to deck

2шт.

28

574230R91

HOSE ASSY.

HOSE ASSY

1шт.

29

634808R11

TUBE W/NUT AND SLEEVE ASSY, pump pressure, Serial no. 7277 & below 0.625" OD, 9.28, 3.16" Length

1шт.

29

939673R91

PIPE ASSY, pump to flow divider lower, Serial no. 7278 & above

1шт.

30

561529R2

CLIP

5шт.

1/4 C-Z nut

4шт.

1/4 x 1-1/4 C-Z cap screw

4шт.

1/4 C-Z lockwasher

4шт.

31

634743R91

DIVIDER ASSY, flow

1шт.

32

567711R1

STRIP, hydraulic tube clip holder

1шт.

5/16 x 3/4 C-Z cap screw

2шт.

5/16 C-Z nut

2шт.

5/16 C-Z lockwasher

2шт.

33

935436R11

TUBE W/SPUD, pressure to motor upper

1шт.

34

634812R11

TUBE W/SPUD, return from motor upper 0.375" OD, 72.34, 12.34" Length

1шт.

35

628562R1

SUPPORT, clip

1шт.

36

634814R11

TUBE W/NUT AND SLEEVE ASSY, pressure to motor lower 0.375" OD, 41.44, 41" Length

1шт.

37

631162R1

LUBE NIPPLE

FITTING, spud

2шт.

38

634813R11

TUBE W/NUT AND SLEEVE ASSY, return from motor lower 0.375" OD, 41.53, 39.84" Length

1шт.

39

634766R91

HOSE ASSY, hydraulic reel, Serial Range: drive-motor

1шт.

40

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, flow divider priority port to hose reducer, Serial no. 7277 & below

1шт.

41

654358R1

SLEEVE, reel drive

1шт.

42

654352R1

FILLER, hydraulic motor mount

1шт.

43

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, self sealing female

2шт.

44

395149R91

COUPLING

ASSY, self sealing male

2шт.

45

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, self sealing coupling

4шт.

46

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

self sealing coupling connector

4шт.

47

939688R1

ANGLE, control support, Serial no. 7278 & above

1шт.

5/16 x 1 C-Z crg bolt w/nut

2шт.

5/16 C-Z lockwasher

2шт.

48

587578R1

CONNECTOR, ELEC

CONNECTOR, Serial no. 7278 & above

1шт.

49

9402788

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

Serial no. 7278 & above

1шт.

50

939681R1

BRACKET, reel drive flow divider support, Serial no. 7278 & above

1шт.

51

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, Serial no. 7278 & above

1шт.
