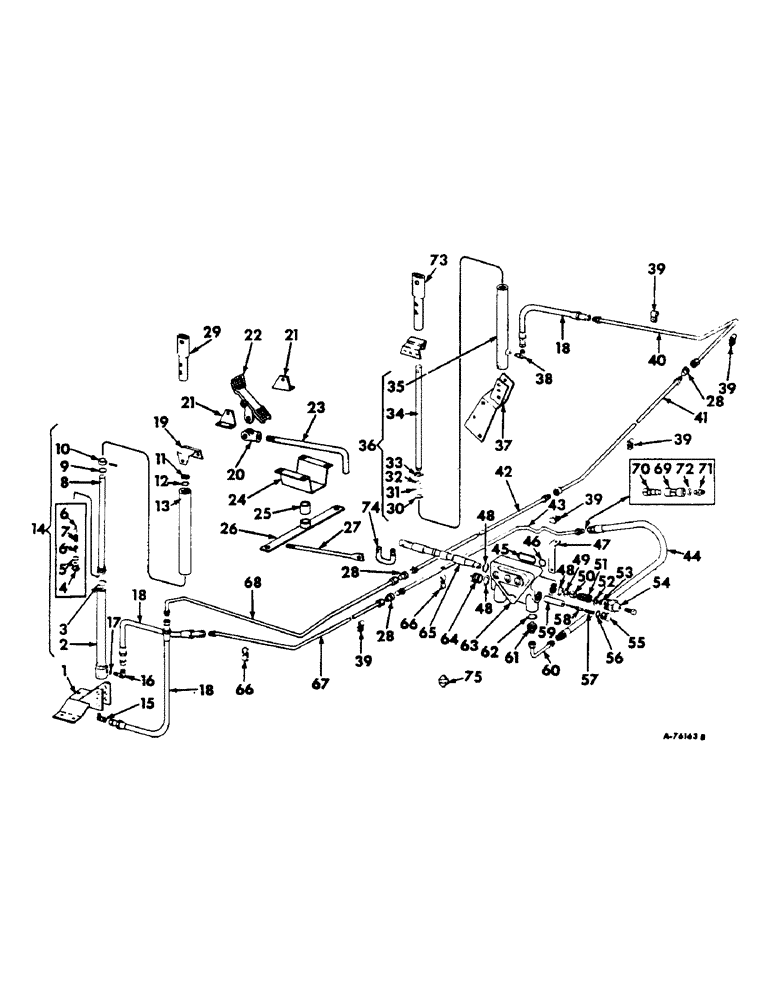

Запчасти Case IH 303 (212) - HYDRAULIC REEL LIFT, FOR HYDROSTATIC GROUND DRIVE (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
150367C91
BRACKET ASY, cylinder lift support LH
1шт.
Q3549
PIN, 1/2 x 2-13/16 std-hd dld
1шт.
2
632463R91
HEAD ASSY
1шт.
3
298384R1
OIL SEAL
O-RING, 1-11/16 x 1-7/8 x 3/32
1шт.
4
632458R1
PLUG, seat
1шт.
6
632460R91
POPPET ASSY
1шт.
7
632459R1
VALVE SPRING
SPRING
1шт.
8
632464R91
ROD ASSY, piston
1шт.
9
252483R1
O-RING,-218, 70 Duro, 1.234" ID x .139" Thk
1-1/4 x 1-1/2 x 1/8
1шт.
10
632461R1
COLLAR
1шт.
17045R1
LOCK PIN,5/32" x 1 3/8", Slotted
PIN, 5/32" x 1 3/8", Slotted
1шт.
11
564808R91
WIPER
SEAL, 1-1/8 shaft
1шт.
12
356005R1
O-RING,1.109" ID x 0.139" Width
1-1/8 x 1-3/8 x 1/8
1шт.
13
632462R91
BEARING ASY
1шт.
14
632457R91
CYLINDER
ASSY, reel master, Includes ref. nos. 2 thru 13
1шт.
159836C91
KIT
seal repair, For 632457R91 cyl, Consists of
1шт.
632460R91
POPPET ASSY
2шт.
632459R1
VALVE SPRING
SPRING
1шт.
356005R1
O-RING,1.109" ID x 0.139" Width
1шт.
252483R1
O-RING,-218, 70 Duro, 1.234" ID x .139" Thk
1шт.
298384R1
OIL SEAL
O-RING
1шт.
564808R91
WIPER
OIL SEAL
1шт.
15
585694R1
ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF
master cyl
1шт.
16
9410976
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
master cyl 90º, 9/16"-18, 37º x 9/16"-18, O-Ring
1шт.
17
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
18
632455R91
HOSE
ASSY, cyl to lower tubing
3шт.
19
634112R1
SUPPORT, reel lift cyl upper
2шт.
17452R1
BOLT,Hex, 1/2"-13 x 1 1/4", G2
1/2 x 1-1/4 C-Z hex-hd
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
654415R1
PIN,1/2" x 3 3/4"
1/2 x 3-3/4 hex dld
2шт.
20
104038
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
CLEVIS, 3/8 in
1шт.
103496
CLEVIS PIN,3/8" x 1.060"
PIN, 3/8 x 1-3/32 rod end
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
103396
PIN, SPLIT (COTTER),5/32" x 1"
5/32" x 1"
1шт.
21
574471R1
BRACKET, control pedal
2шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 C-Z hex-hd
4шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
U5363
PIN, 7/16 x 2-7/8 std-hd dld
1шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
1шт.
22
631486R1
PEDAL, lift control
1шт.
23
938295R1
ROD, front control
1шт.
24
627429R1
SUPPORT, control pivot strap
1шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 C-Z sq-nk crg
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
Q1505
WASHER
13/32 x 1 x 16 ga
2шт.
25
574464R1
BUSHING, control pivot strap
1шт.
18781R1
BOLT,Hex, 3/8"-16 x 2", G2
3/8 x 2 C-Z hex-hd
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
510579R1
WASHER
13/32 x 1-1/4 x 16 ga
1шт.
26
627425R91
STRAP ASSY, control pivot
1шт.
18781R1
BOLT,Hex, 3/8"-16 x 2", G2
3/8 x 2 C-Z hex-hd
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
510579R1
WASHER
13/32 x 1-1/4 x 16 ga
1шт.
27
939236R1
ROD, reel lift rear control
1шт.
25-158
JAM NUT,Jam, 1/2"-20, G5
1/2-20 C-Z hex jam
1шт.
60530H
CLEVIS PIN,3/8" x 1"
PIN, 3/8 x 1 rod end
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
103498
CLEVIS PIN,1/2" x 1.360"
PIN, 1/2 x 1-27/64 rod end
1шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
1шт.
28
631162R1
LUBE NIPPLE
FITTING, crossover pipe stud
3шт.
29
935599R1
COUPLING, master cyl extension
1шт.
465839R1
PIN, 1/2 x 2-51/6 std-hd dld
1шт.
30
SNAP RING, Order repair kit, 609986R91
1шт.
31
O-RING, Order repair kit, 609986R91
1шт.
32
WASHER, backup, Order repair kit, 609986R91
1шт.
33
SEAL ASSY, Order repair kit, 609986R91
1шт.
34
609985R1
ROD
piston
1шт.
35
609984R91
BARREL ASSY
1шт.
36
610899R92
CYLINDER BLOCK
CYLINDER ASSY, slave
1шт.
37
634115R91
BRACET ASSY, lift cylinder right
1шт.
20485R1
BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd
7/16 x 3/4 C-Z hex-hd
1шт.
18707R1
CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2
BOLT, 1/2 x 1 C-Z sq-nk crg
1шт.
17140R1
CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd
BOLT, 1/2 x 1-1/4 C-Z sq-nk crg
1шт.
NLS
NO LONGER SERVICED
NUT, 7/16 C-Z hex
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
Q5035
WASHER
17/32 x 1 x 16 ga
9шт.
LC175
PIN
1/2 x 2-1/2 std-hd dld
1шт.
38
9402864
ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, NPTF
slave cylinder
1шт.
39
589980R2
CLIP
5шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
5шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
5шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
5шт.
40
632022R11
PIPE ASSY, lower right crossover
1шт.
41
632023R22
PIPE ASSY, upper right crossover 0.375" OD, 111, 1.78" Length
1шт.
5
369384R1
O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro
5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube
1шт.
42
632456R22
PIPE ASSY, upper left crossover 0.375" OD, 98.75" Length
1шт.
369384R1
O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro
5-1, 90 Duro, .414" ID x .072" Thk
1шт.
43
935542R11
PIPE ASSY, upper pressure
1шт.
44
632454R91
HYDRAULIC HOSE,0.31" ID x 30.00", SAE 100R1 Class B
HOSE ASSY, valve to upper tube
1шт.
45
587594R1
O-RING
1-1/2 x 1-11/16 x 3/32
1шт.
46
587579R1
O-RING
3/4 x 7/8 x 1/16
10шт.
47
628562R1
SUPPORT, pipe clip
1шт.
48
252707R1
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
3/4 x 15/16 x 3/32
1шт.
49
11002VA
WASHER
1шт.
50
588345R1
SLEEVE
spool
1шт.
51
588353R1
SPRING
spool centering
1шт.
52
557268R1
WASHER
1шт.
53
572998R1
SNAP RING
1шт.
54
588343R91
CAP ASSY
1шт.
181336
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5
1шт.
114493
JAM NUT,Jam, 5/16"-24, G5
1шт.
55
588347R1
PLUG
1шт.
56
252739R1
O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro
1/2 x 11/16 x 3/32
1шт.
57
574789R1
SPRING
lockout
1шт.
58
588351R91
VALVE
POPPET ASSY
1шт.
59
935586R1
PLUNGER, lockout
1шт.
60
632452R11
PIPE ASSY, valve to hose 0.375" OD, 5.81, 2.03" Length
1шт.
61
587639R1
HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring
CONNECTOR, valve
1шт.
63
935585R92
VALVE ASSY, three-way, Includes ref. nos. 48 thru 59, 62, 64 & 65
1шт.
20484R1
BOLT,Hex, 5/16" - 18 x 6 1/2", Gr 5
SCREW, 5/16 x 6-1/2 C-Z cap
3шт.
159644C91
KIT
seal repair, For 935585R91 valve, Consists of
1шт.
252739R1
O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro
3/32 x 1/2
1шт.
310925R1
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
3/32 x 3/4
3шт.
588351R1
POPPET ASSY
1шт.
64
588342R1
PLUG
hex
1шт.
65
SPOOL, single action, Order valve assy, 935585R91
1шт.
66
561529R2
CLIP
2шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
67
632021R11
PIPE ASSY, lower pressure
1шт.
68
632453R11
PIPE ASSY, lower left crossover
1шт.
69
395150R91
COUPLING, QUICK, FEM
COUPLING ASSY, self-sealing female
1шт.
70
395149R1
QUICK MALE COUPLING
COUPLING ASSY, self-sealing male
1шт.
71
935433R1
HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring
CONNECTOR, self-sealing coupling
2шт.
72
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
For 5/8 OD tubing
4шт.
73
935598R1
COUPLING, slave cylinder extension
1шт.
465839R1
PIN, 1/2 x 2-51/6 std-hd dld
1шт.
74
633673R1
ROD, rear control
1шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
1шт.
75
164787C1
PLATE, orifice
1шт.
Выбрано товаров: 144
