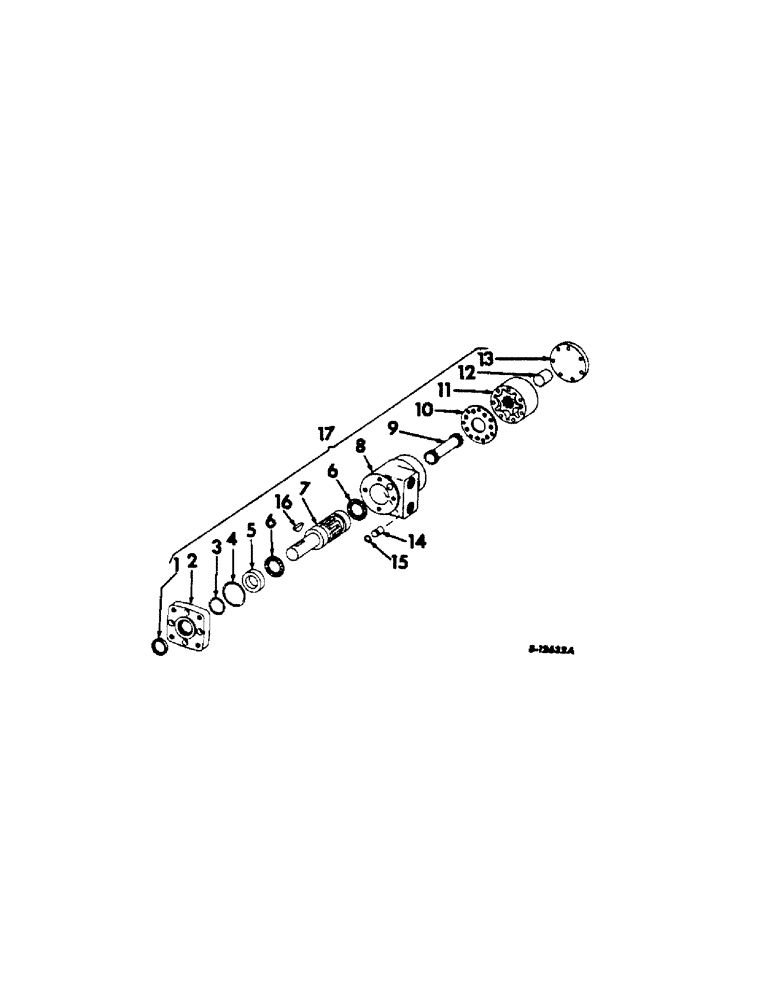

Запчасти Case IH 303 (209) - REEL DRIVE MOTOR (58) - ATTACHMENTS/HEADERS

1

697494R91

OIL SEAL

OIL SEAL

1шт.

2

653950R1

PLATE, mounting valve housing

1шт.

1/4 x 1 ESNA roll pin

2шт.

1/4 x 2-1/4 skt-hd cap screw

7шт.

5/16 x 5/8 skt-hd cap screw

4шт.

3

310930R1

O-RING

1шт.

4

298384R1

OIL SEAL

O-RING

1шт.

5

653946R1

SPACER

RACE, bearing

1шт.

6

653947R91

BEARING ASSY, thrust

2шт.

7

SHAFT, Order motor assy, 634733R91, ref. no. 17

1шт.

8

BODY, motor, Order motor assy, 634733R91, ref. no. 17

1шт.

9

653944R1

DRIVE

1шт.

10

653943R1

LARGE PLATE

PLATE, spacer

1шт.

11

ROTOR ASSY, Order motor assy, 634733R91, ref. no. 17

1шт.

12

653945R1

SPACER

1шт.

13

653949R1

END, cap

1шт.

14

653948R1

PLUG

housing

1шт.

15

355967R1

O-RING,0.364" ID x 0.003" Width

1шт.

16

153865C1

KEY, 3/16 x 1 Woodruff

1шт.

17

634733R91

HYDRAULIC MOTOR

MOTOR ASSY, hydraulic reel drive, Includes ref. nos. 1 thru 16

1шт.
