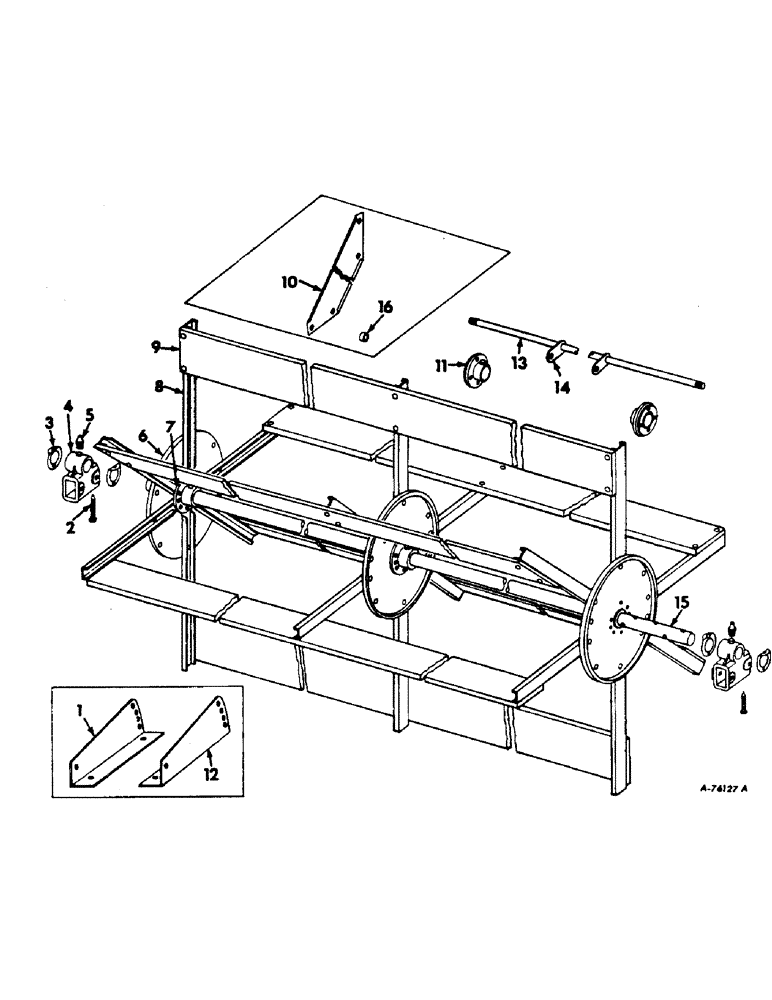

Запчасти Case IH 303 (026) - REEL, IH DESIGN, REEL END GUARDS, SPECIAL (58) - ATTACHMENTS/HEADERS

1

564843R1

CLAMP, bat RH adjusting, Serial no. 9427 & below

4шт.

1/4 cd-pltd nut

8шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 x 1/2 slt-rd-hd, cd-pltd mach screw

8шт.

1/4 cd-pltd lockwasher

8шт.

2

633184R1

SET SCREW

reel shaft support housing, 1/2 x 2 sq-hd

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 cd-pltd, jam nut

2шт.

3

633177R1

WASHER

WASHER, cotter pin retaining

4шт.

1/4 x 2-1/4 cot. pin

4шт.

Q3655

1-25/32 x 2-3/4 x 18 GA washer

8шт.

Q3859

WASHER

1-25/32 x 2-3/4 x 11 GA washer

2шт.

4

633181R1

BRACKET

HOUSING, reel shaft support

1шт.

1-25/32 x 2-3/4 x 11 GA washer

2шт.

1-25/32 x 2-3/4 x 18 GA washer

18шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

6

464841R1

SUPPORT, reel arm

1шт.

7

633172R1

HUB, arm support reel

1шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

7/16 cd-pltd jam nut

1шт.

19888R1

7/16 x 1 cd-pltd sq-hd set screw

1шт.

8

633175R2

ARM, reel bat

1шт.

5/16 x 1 cd-pltd crg bolt w/nut

1шт.

5/16 x 3/4 cd-pltd mach bolt w/nut

1шт.

5/16 cd-pltd lockwasher

1шт.

9

632907R1

BAT, reel, 10 ft.

6шт.

9

632908R1

BAT, reel, 12 ft.

6шт.

9

654795R1

BAT, reel, 13 ft.

6шт.

9

632903R1

BAT, reel, 14 ft.

6шт.

1/4 x 1-1/4 cd-pltd step bolt w/nut

1шт.

1/4 cd-pltd lockwasher

1шт.

10

565396R1

GUARD, reel end, 4 bat reel, reel end guard attachment

8шт.

10

565395R1

GUARD, reel end, 6 bat reel, reel end guard attachment

12шт.

11

NOT USED THIS APPLICATION

1шт.

12

564842R1

CLAMP, reel bat LH adjusting, Serial no. 9427 & below

1шт.

13

NOT USED THIS APPLICATION

1шт.

14

NOT USED THIS APPLICATION

1шт.

15

633178R1

SHAFT, reel, 10 ft., Serial no. 4643 & below

1шт.

564640R1

1-3/32 x 2 x 11 Ga washer

2шт.

1-3/32 x 2 x 16 GA waher

8шт.

15

936477R1

SHAFT, reel, 12 ft., Serial no. 4644 & above

1шт.

15

633179R1

SHAFT, reel, 12 ft.

1шт.

15

654794R1

SHAFT, reel, 13 ft.

1шт.

633176R1

SHAFT, reel, 14 ft.

1шт.

432-1636

COTTER PIN,1/4" x 2 1/4"

Pin, Split (Cotter), 1/4" x 2 1/4"

1шт.

Q3655

1-25/32 x 2-3/4 x 18 GA washer

1шт.

Q3859

WASHER

1-25/32 x 2-3/4 x 11 GA washer

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 x 1/2 cd-plat slt-rd-hd mach screw

1шт.

1/4 cd-pltd lockwasher

1шт.

16

580295R1

SPACER

reel end guard, reel end guard attachment

24шт.

1/4 x 1-1/4 C-Z hex-hd mach bolt w/nut

24шт.

1/4 C-Z lockwasher

24шт.
