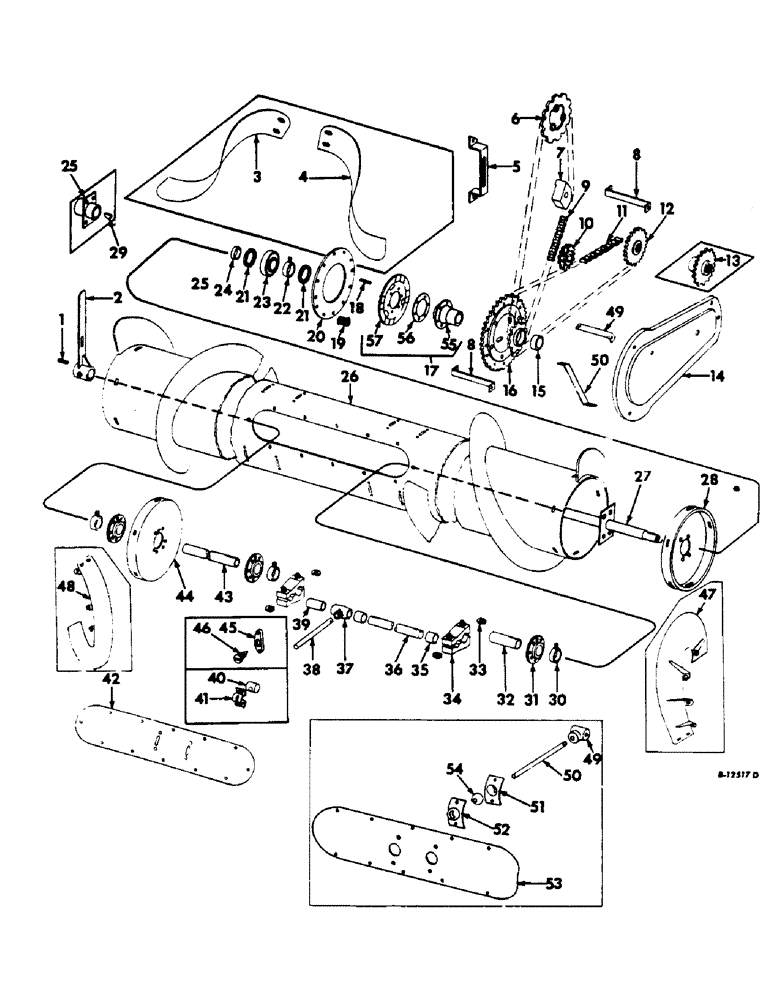

Запчасти Case IH 303 (023) - PLATFORM AUGER AND DRIVE, PLATFORM AUGER EXTENSION ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

Q98

KEY, straight, 1/4 x 1/4 x 1-7/8 1/4" Sq x 1 7/8", Par

1шт.

2

155200C91

LEVER ASSY, platform auger finger adj

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

106839

SET SCREW,Sq Hd, 5/16"-18 x 1"

5/16 x 1 sq-hd dog-pt set screw

1шт.

3

565373R91

EXTENSION W/CLIP, platform auger RH, platform auger extension att

1шт.

5/16 x 3/4 C-Z crg bolt w/nut

2шт.

5/16 x 1 C-Z mach bolt

1шт.

459063R1

SPRING NUT

5/16 Tinnerman nut w/retainer

1шт.

5/16 lockwasher

2шт.

Q397

WASHER

11/32 x 3/4 x 16 GA washer

1шт.

4

565372R91

EXTENSION W/CLIP, platform auger LH, platform auger extension att

1шт.

5/16 x 3/4 crg bolt w/nut

2шт.

5/16 x 1 mach bolt

1шт.

459063R1

SPRING NUT

5/16 Tinnerman nut w/retainer

1шт.

5/16 lockwasher

2шт.

11/32 x 3/4 x 16 GA washer

1шт.

5

564924R1

BRACKET, auger drive chain tightener

1шт.

6

569018R1

SPROCKET ASSY.

SPROCKET, reel idler driven, slow speed, 16T

1шт.

6

569019R1

NO LONGER SERVICED

SPROCKET, reel idler driven, intermediate speed, 14T

1шт.

6

588771R2

SPROCKET ASSY.

SPROCKET, reel idler driven, 19T, rice

1шт.

6

459020R1

SPROCKET, reel idler driven, fast speed, 12T, grain

1шт.

7

575875R1

BLOCK

reel drive chain tightener

1шт.

5/16 x 2 crg bolt w/nut

1шт.

5/16 lockwasher

1шт.

11/32 x 1 x 16 GA washer

1шт.

8

565946R1

BRACKET, platform auger drive shield, Not for 24 in. OD auger

2шт.

5/16 x 3/4 mach bolt w/nut

3шт.

5/16 lockwasher

3шт.

9

CHAIN, reel jackshaft drive roller, Use 43 links of 1-1/4 extended pitch stock roller chain, agricultural, from a 10 ft. roll marked 569089R91, (3) roller links, 456979R91, (3) connecting links, 456980R91, and (4) offset connecting links, 456929R91

1шт.

9

456979R91

CHAIN LINK

LINK, roller 1-1/4 extended pitch, agricultural, For use with 558771R1 idler driven sprocket, rice

1шт.

9

456980R91

CHAIN LINK

LINK, connecting, 1-1/4 extended pitch, agricultural, For use with 558771R1 idler driven sprocket, rice

1шт.

10

564989R91

DRIVE SPROCKET

SPROCKET, platform auger, 9T, 10 ft., 12 ft. and 13 ft.

1шт.

10

571441R91

SPROCKET ASSY.,15T

SPROCKET ASSY, platform auger drive tightener, 14 ft.

1шт.

1/2 x 1-3/4 crg bolt

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

1/2 lockwasher

1шт.

17/32 x 1 x 16 GA washer

2шт.

M83536

WASHER

17/32 x 1-1/4 x 11 GA sq-hole washer

1шт.

551658R1

WASHER

25/32 x 1-1/4 x 22 GA washer

1шт.

11

CHAIN, platform auger drive roller, Use 51 links of 1-1/4 extended pitch stock roller chain, agricultural, from a 10 ft. roll, 569089R91, (1) connecting link, 456980R91, 10 ft. & 12 ft.

1шт.

11

CHAIN, platform auger drive roller, Use 82 links from 10 ft. roll marked 1793D and (1) connecting link, 1315D, 14 ft.

1шт.

12

633711R1

SPROCKET ASSY.

SPROCKET, platform auger and reel drive, 10T, 10 ft. and 12 ft. regular

1шт.

12

633710R91

SPROCKET ASSY, platform auger and reel drive, 16T, 10 ft., 12 ft. or 13 ft., special slow speed

1шт.

12

633715R1

SPROCKET ASSY.

SPROCKET, platform auger and reel drive, 17T, 14 ft.

1шт.

12

589148R91

SPROCKET ASSY, platform auger and reel drive, 15T, 14 ft., special slow speed

1шт.

13

634127R91

SPROCKET W/HUB, platform auger drive, 20T, special, For machines equipped with platform less cutting parts

1шт.

14

564931R1

SHIELD, platform auger drive

1шт.

5/16 x 3/4 mach bolt w/nut

1шт.

5/16 lockwasher

1шт.

15

568239R1

BEARING

BUSHING, platform auger slip clutch, 14 ft. platform, Serial no. 11763 & below

1шт.

16

569333R1

SPROCKET ASSY.

SPROCKET, platform auger drive slip clutch, 10 ft. and 12 ft., 27T and 10T

1шт.

16

571460R1

SPROCKET ASSY.

SPROCKET, platform auger drive slip clutch, 14 ft., Serial no. 11763 & below

1шт.

16

156867C1

SPROCKET ASSY.

SPROCKET, platform auger drive slip clutch driven, Serial no. 11764 & above

1шт.

17

152772C91

HUB CAP

HUB ASSY, platform auger drive slip clutch, 14 ft., Serial no. 11763 & below

1шт.

17

152774C91

HUB CAP

HUB ASSY, platform auger drive slip clutch, 10 ft., 12 ft. & 13 ft.

1шт.

18

Q1482

KEY,5/16" Sq x 1", Par

straight, 5/16 x 5/16 x 1, 10 ft. and 12 ft.

1шт.

18

192

KEY,5/16" Sq x 1 5/8", Par

5/16 x 5/16 x 1-5/8 straight, 14 ft.

1шт.

19

568243R1

SPRING

platform auger drive slip clutch, 14 ft. platform, Serial no. 11763 & below

1шт.

20

568241R1

PLATE ASSY.

PLATE, platform auger drive slip clutch friction, 14 ft. platform, Serial no. 11763 & below

1шт.

230-4115

LOCK NUT,5/16"-18, GA

5/16 Stover locknut, (8) used grain, (6) used rice

1шт.

5/16 x 1-1/2 no. 3 plow bolt, (8) used grain, (6) used rice

1шт.

5/16 x 1-1/2 no. 3 plow bolt, (8) used grain, (6) used rice

1шт.

11/32 x 1 x 16 GA washer, (8) used grain, (6) used rice

1шт.

21

561088R1

SNAP RING,#244, 2.588", Int, Spiral

platform auger LH bearing retainer

2шт.

22

617685R11

COLLAR

W/SET SCREW ASSY, locking, 10 ft. and 12 ft.

1шт.

22

557995R11

COLLAR

W/SET SCREW ASSY, locking, 14 ft.

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

5/16 x 5/16 cup-pt set screw

1шт.

23

566938R91

BEARING

ball, 10 ft. and 12 ft.

1шт.

23

156353C91

BEARING

ball platform auger LH, 10 ft. and 13 ft.

1шт.

23

563883R91

BALL BEARING,31.75mm ID x 62mm OD x 16mm W

BEARING, ball, 14 ft.

1шт.

24

150180C1

SPACER, platform auger LH shaft, 10 ft. and 13 ft.

1шт.

24

153311C1

SPACER

platform auger LH shaft, 14 ft.

1шт.

25

935964R1

HUB

platform auger drive shaft support, 10 ft. and 12 ft., Serial no. 11763 & below

1шт.

26

629592R91

AUGER W/TUBE, platform, 10 ft., Serial no. 9427 & below

1шт.

26

153056C91

AUGER ASSY, platform, 10 ft., Serial no. 9428 & above

1шт.

26

629595R91

AUGER W/TUBE, platform, 12 ft.

1шт.

26

654837R91

AUGER W/TUBE, platform, 13 ft., Serial no. 9427 & below

1шт.

26

153059C91

AUGER ASSY, platform, 13 ft., Serial no. 9428 & above

1шт.

26

588591R91

AUGER W/TUBE, platform, 14 ft., Serial no. 9427 & below

1шт.

26

153061C91

AUGER ASSY, platform, 14 ft., Serial no. 9428 & above

1шт.

5/16 x 3/4 crg bolt w/nut

1шт.

5/16 lockwasher

1шт.

27

153312C11

SHAFT ASSY, platform auger LH, 10 ft.

1шт.

27

153313C11

SHAFT ASSY, platform auger LH, 13 ft.

1шт.

1-5/32 x 1-3/4 x 16 GA washer

1шт.

3/4 sltd hex nut

1шт.

575814R1

WASHER

25/32 x 2 x 11 GA washer

2шт.

1/8 x 1-1/4 cot. pin

1шт.

27

153310C11

SHAFT

ASSY, platform auger LH, 14 ft, 12 ft.

1шт.

1-9/32 x 1-3/4 x 16 GA washer

1шт.

7/8 sltd hex jam nut

1шт.

550999R1

WASHER

29/32 x 2 x 11 GA washer

1шт.

1/8 x 1-1/2 cot. pin

1шт.

28

565669R91

DISC W/STUD, platform auger LH

1шт.

7/16 nut

4шт.

7/16 lockwasher

4шт.

29

113879

KEY

Woodruff, 5/16 X 1-1/4, Serial no. 11763 & below

1шт.

30

564853R11

COLLAR

W/SET SCREW ASSY, locking

3шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 x 1/4 cup-pt set screw

3шт.

31

564851R91

BALL BEARING,1.002" ID x 3.75" OD x 0.9"

ball

3шт.

32

558353R1

SHAFT

platform auger stub, Serial no. 501 to 2750 and 11764 & above

1шт.

32

936028R1

SPACER

PIN, platform auger stub, Serial no., Serial Range: 2751-11763

1шт.

33

28459KA

WASHER

platform auger shaft arm, (4) used for Serial no. 501 to 2750 and 11764 & above, (3) used for Serial no., Serial Range: 2751-11764

1шт.

34

566608R11

CLAMP

ARM W/BOLT, nut and lockwasher, platform auger shaft

2шт.

3/8 x 2-1/4 mach bolt w/nut

4шт.

3/8 lockwasher

4шт.

35

566614R1

SPACER, platform auger finger

2шт.

36

564955R1

SHAFT, platform auger center, Serial no. 9427 & below

1шт.

36

153411C1

SHAFT, platform auger center, Serial no. 9428 & above

1шт.

25/32 x 1-1/4 x 16 GA washer

1шт.

37

558316R2

HUB

platform auger finger bearing, Serial no. 501 to 1470 and Serial no., Serial Range: 7278-9427

1шт.

5/16 x 1 sq-hd cup-pt set screw

1шт.

5/16 jam nut

1шт.

37

617182R1

BUSHING

HUB, platform auger finger, Serial no., Serial Range: 4807-7277

1шт.

38

564954R1

FINGER

platform auger, Serial no. 501 to 4806 and Serial no., Serial Range: 7278-9427

1шт.

38

936655R1

FINGER

PIN, platform auger, Not for 24 in. OD auger, Serial no., Serial Range: 4807-7277

1шт.

3/4 x 1-1/2 cot. pin

1шт.

39

558318R1

HALF-BUSHING

BUSHING, platform auger finger, Serial no. 501 to 4806 and Serial no., Serial Range: 7278-9427

1шт.

40

557173R2

RING

PIVOT, platform auger finger, platform Serial no. 2862 & below

1шт.

41

566613R11

RETAINER

W/NUT, platform auger pivot, platform Serial no. 2862 & below

1шт.

42

564958R1

PLATE, platform auger inspection, Serial no. 9427 & below

1шт.

113859

BOLT (SPREADER),Rd Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-rd-hd mach screw

1шт.

5/16 lockwasher

1шт.

43

564957R1

SHAFT, platform auger adjusting, 10 ft.

1шт.

43

570166R1

SHAFT, platform auger adjusting, 12 ft.

1шт.

43

654817R1

SHAFT, platform auger adjusting, 13 ft.

1шт.

43

588596R1

SHAFT, platform auger adjusting, 14 ft.

1шт.

44

563246R1

FLANGE

DISC, platform auger end RH

1шт.

45

653935R2

GUIDE

platform auger pin, platform Serial no., Serial Range: 2863-9427

1шт.

46

936693R1

CAPSCREW,Tapping, 1/4" x 7/8"

SCREW, platform auger pin guide, platform Serial no., Serial Range: 2863-9427

1шт.

47

NOT USED THIS APPLICATION

1шт.

48

NOT USED THIS APPLICATION

1шт.

49

150725C1

HUB CAP

HUB, platform finger, Serial no. 9428 & above

7шт.

50

150728C1

SHAFT

PIN, platform auger, Serial no. 9428 & above

7шт.

150724C1

SPLIT PIN/SAFETY PIN

PIN, quick attachable

7шт.

51

150723C1

RETAINER

platform auger pin bushing inner, Serial no. 9427 & above

7шт.

52

150726C1

RETAINER

platform auger pin bushing outer

7шт.

1/4 C-Z nut

1шт.

1/4 x 1/2 sltd-truss-hd mach screw

14шт.

1/4 C-Z lockwasher

1шт.

53

153083C1

COVER, platform auger inspection, Serial no. 9428 & above

1шт.

5/16 x 3/4 C-Z pan-hd self tapping screw

1шт.

5/16 C-Z lockwasher

1шт.

54

150727C1

BUSHING

platform auger pin, Serial no. 9428 & above

7шт.

55

CENTER KEYED, Not serviced separately, Order 152772C91 hub assy for 14 ft. or 152774C91 hub assy for 10 ft. and 13 ft., Serial no. 9428 & above

1шт.

56

PLATE, rivet, Not serviced separately, Order 152772C91 hub assy for 14 ft., or 152774C91 hub assy for 10 ft. and 13 ft., Serial no. 9428 & above

1шт.

118072

NUT

RIVET, fl-hd

6шт.

57

PLATE AND FACING ASSY, Not serviced separately, Order 152772C91 hub assy for 14 ft., or 152774C91 hub assy for 10 ft. and 13 ft., Serial no. 9428 & above

1шт.
