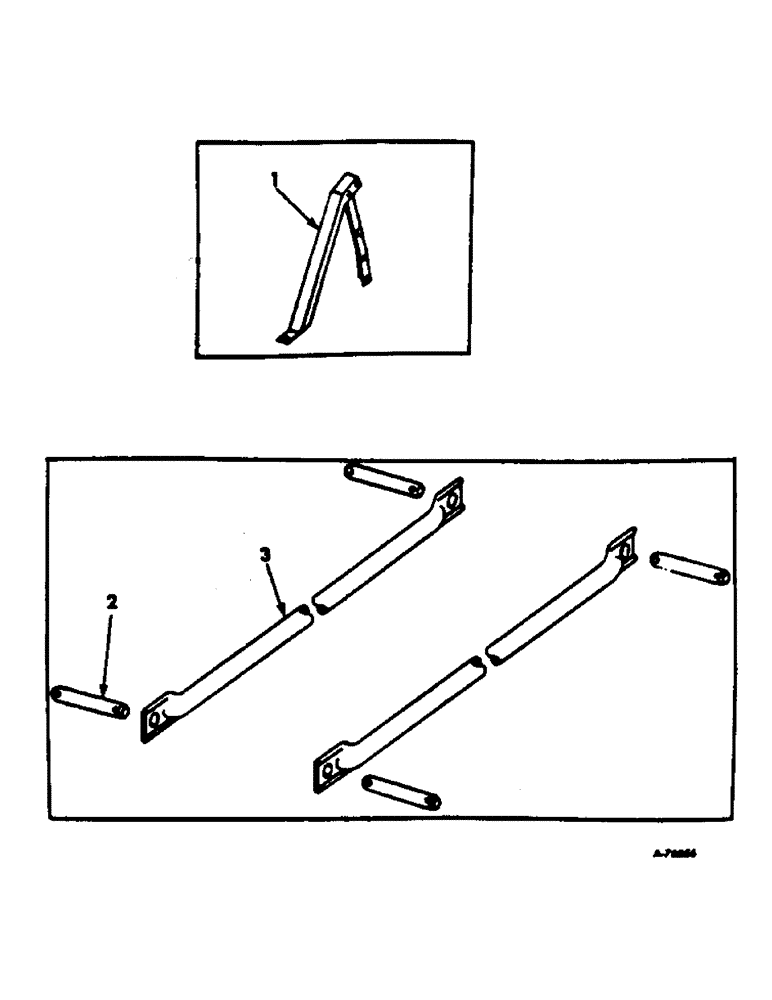

Запчасти Case IH 303 (019) - DIVIDER RUNNER BRACE ATTACHMENT, PLATFORM TRANSPORT ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

628100R92

BRACE W/STIFFENER, divider runner LH

1шт.

1

628103R92

BRACE W/STIFFENER, divider runner RH, divider runner brace attachment

1шт.

5/16 x 1-1/4 C-Z crg bolt w/nut

2шт.

3/8 x 3/4 C-Z crg bolt w/nut

4шт.

3/8 x 1-3/4 C-Z crg bolt w/nut

2шт.

5/16 x 3/4 C-Z cap screw

4шт.

5/16 C-Z lockwasher

6шт.

3/8 C-Z lockwasher

6шт.

11/32 x 3/4 x 16 GA washer

8шт.

615090R1

WASHER

17/32 x 2 x 11 GA washer

12шт.

2

NOT USED THIS APPLICATION

1шт.

3

NOT USED THIS APPLICATION

1шт.
