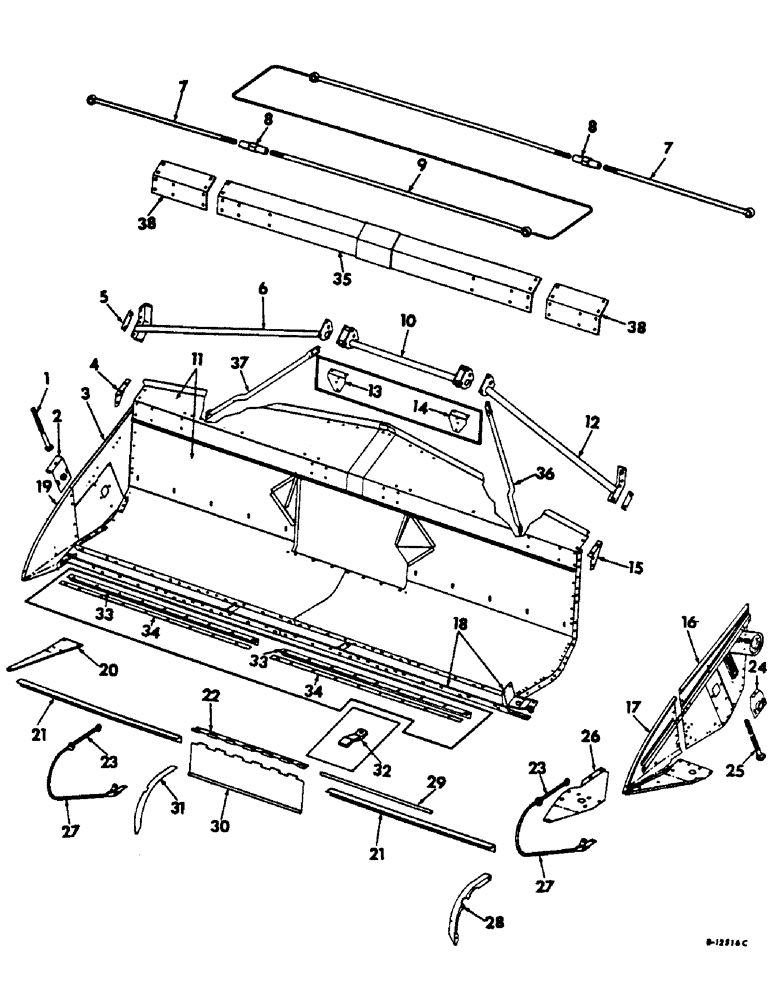

Запчасти Case IH 303 (016) - PLATFORM (58) - ATTACHMENTS/HEADERS

1

565392R1

BOLT, platform auger RH adjusting, 3/8 x 6-1/2

1шт.

3/8 nut

2шт.

13/32 x 1 x 16 GA washer

1шт.

2

564812R21

PLATE W/HUB, platform auger adjusting, RH 10 ft. and 12 ft.

1шт.

2

569244R21

PLATE W/HUB, platform auger adjusting, RH, 14 ft.

1шт.

3/8 x 1-1/4 crg bolt w/nut

1шт.

3/8 lockwasher

1шт.

13/32 x 1 x 16 GA washer

1шт.

3

633722R91

END W/STIFFENER AND SUPPORT, platform, RH 14 ft.

1шт.

3

631518R91

END W/STIFFENER AND SUPPORT, platform, RH 10 ft, 12 ft. and 13 ft

1шт.

5/16 x 1 crg bolt w/nut

1шт.

3/8 x 1-1/4 crg bolt w/nut

1шт.

1/2 x 1-1/4 crg bolt w/nut

1шт.

5/16 x 1/2 mach bolt w/nut

1шт.

11/32 x 3/4 x 16 GA washer

1шт.

13/32 x 1 x 16 GA washer

1шт.

4

564911R1

GUSSET, platform support, RH platform, Serial no. 2862 & below

1шт.

4

631293R1

GUSSET, platform upper support, RH platform, Serial no. 2863 & above

1шт.

5/16 x 3/4 crg bolt w/nut

2шт.

5/16 x 1 crg bolt w/nut

2шт.

5/16 lockwasher

4шт.

5

570369R1

SHIM, platform lower brace outer

1шт.

5

587860R1

SHIM, platform lower brace outer

1шт.

6

631520R91

BRACE W/PIPE, platform lower RH 10 ft.

1шт.

6

631523R91

BRACE W/PIPE, platform lower RH 12 ft.

1шт.

6

654780R91

BRACE W/PIPE, platform lower RH 13 ft.

1шт.

6

588586R91

BRACE W/PIPE, platform lower RH 14 ft.

1шт.

1/2 x 1-3/4 crg bolt w/nut

1шт.

7/16 x 1-1/4 crg bolt w/nut

1шт.

7/16 x 1 mach bolt w/nut

1шт.

7/16 lockwasher

1шт.

1/2 lockwasher

1шт.

7

573062R1

ROD, platform lower truss, 12 ft. rice and 14 ft. grain

1шт.

7

588583R1

ROD, platform truss lower, 13 ft.

2шт.

5/8 x 1-3/4 mach bolt

2шт.

5/8 nut

3шт.

5/8 lockwasher

2шт.

8

M4175

TURNBUCKLE, platform truss rod

2шт.

5/8 nut

2шт.

9

631525R1

ROD, platform truss upper, 12 ft. rice

2шт.

9

654796R1

ROD, platform truss upper, 13 ft.

2шт.

9

588583R1

ROD, platform truss upper, 14 ft. grain

2шт.

5/8 x 1-3/4 mach bolt w/nut

2шт.

5/8 lockwasher

2шт.

10

588584R91

LIFT W/GUSSET AND SPACER, platform

1шт.

1/2 x 2-3/4 mach bolt w/nut

1шт.

1/2 x 3 mach bolt w/nut

1шт.

1/2 lockwasher

1шт.

11

631516R91

PLATFORM W/BACKSHEET AND BOTTOM, 10 ft.

1шт.

11

631515R91

PLATFORM W/BACKSHEET AND BOTTOM, 12 ft.

1шт.

11

654734R91

PLATFORM W/BACKSHEET AND BOTTOM, 13 ft.

1шт.

11

588576R91

PLATFORM W/BACKSHEET AND BOTTOM, 14 ft.

1шт.

5/16 x 1/2 crg bolt w/nut

1шт.

5/16 x 3/4 crg bolt w/nut

1шт.

3/8 x 3/4 crg bolt w/nut

1шт.

7/16 x 1 crg bolt w/nut

1шт.

7/16 x 1-1/2 crg bolt w/nut

1шт.

1/2 x 1-3/4 crg bolt w/nut

1шт.

5/16 x 3/4 mach bolt w/nut

1шт.

3/8 x 3/4 mach bolt w/nut

1шт.

3/8 x 1 mach bolt w/nut

1шт.

7/16 x 1 mach bolt w/nut

1шт.

1/2 x 1-1/2 mach bolt w/nut

1шт.

1/4 x 5/8 wagon-box-hd rivet

1шт.

5/16 lockwasher

1шт.

3/8 lockwasher

1шт.

7/16 lockwasher

1шт.

1/2 lockwasher

1шт.

13/32 x 1 x 16 GA washer

1шт.

615009R1

WASHER

17/64 x 3/4 x 16 GA washer

1шт.

12

631519R91

BRACE W/PIPE, platform lower LH, 10 ft.

1шт.

12

631522R91

BRACE W/PIPE, platform lower LH, 12 ft.

1шт.

12

654779R91

BRACE W/PIPE, platform lower LH, 13 ft.

1шт.

12

588585R91

BRACE W/PIPE, platform lower LH, 14 ft.

1шт.

7/16 x 1-1/2 crg bolt w/nut

1шт.

7/16 x 1 mach bolt w/nut

1шт.

1/2 x 1-3/4 crg bolt w/nut

1шт.

7/16 lockwasher

1шт.

1/2 lockwasher

1шт.

13

631366R1

REINFORCEMENT, platform top rail RH, Serial no. 501 & above

1шт.

3/8 x 1 mach bolt w/nut

1шт.

7/16 x 3/4 mach bolt w/nut

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

3/8 lockwasher

1шт.

7/16 lockwasher

1шт.

14

631365R1

STIFFENER

REINFORCEMENT, platform top rail LH, Serial no. 501 & above

1шт.

3/8 x 1 mach bolt

1шт.

7/16 x 3/4 mach bolt w/nut

2шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

3/8 lockwasher

2шт.

7/16 lockwasher

2шт.

15

564910R1

GUSSET, platform upper support LH platform, Serial no. 2862 & below

1шт.

15

631292R1

GUSSET, platform upper support LH platform, Serial no. 2863 & above

1шт.

5/16 x 3/4 crg bolt w/nut

2шт.

5/16 x 1 crg bolt w/nut

2шт.

5/16 lockwasher

4шт.

16

631517R91

END W/STIFFENER AND SUPPORT, platform LH, 10 ft., 12 ft. & 13 ft.

1шт.

16

633721R91

END W/STIFFENER AND SUPPORT, platform, LH, 14 ft.

1шт.

5/16 x 3/4 crg bolt w/nut

1шт.

5/16 x 1 crg bolt w/nut

1шт.

3/8 x 3/4 crg bolt w/nut

1шт.

3/8 x 1-1/4 crg bolt w/nut

1шт.

7/16 x 1 crg bolt w/nut

1шт.

7/16 x 1-1/2 crg bolt w/nut

1шт.

1/2 x 1-1/4 crg bolt w/nut

1шт.

1/2 x 1-1/2 crg bolt w/nut

1шт.

5/16 x 1/2 mach bolt w/nut

1шт.

5/16 x 3/4 mach bolt w/nut

1шт.

3/8 x 1-1/4 mach bolt w/nut

1шт.

5/16 lockwasher

1шт.

3/8 lockwasher

1шт.

7/16 lockwasher

1шт.

1/2 lockwasher

1шт.

11/32 x 3/4 x 16 GA washer

1шт.

13/32 x 1 x 16 GA washer

1шт.

15/32 x 1 x 16 GA washer

1шт.

17

627812R91

DIVIDER W/STIFFENER AND STRAP, LH, Not for use with windrow special, Serial no., Serial Range: 501-4806

1шт.

17

634557R91

DIVIDER W/STIFFENER AND STRAP, LH, For use with windrow special, Serial no., Serial Range: 501-4806

1шт.

17

634557R91

DIVIDER W/STIFFENER AND STRAP, LH, regular, Serial no. 4807 & above

1шт.

5/16 x 1/2 crg bolt w/nut

2шт.

5/16 x 3/4 crg bolt w/nut

1шт.

5/16 x 1 crg bolt w/nut

1шт.

1/4 nut

1шт.

1/4 x 3/4 slt-rd-hd mach screw

1шт.

5/16 lockwasher

4шт.

1/4 lockwasher

1шт.

17

627812R91

DIVIDER W/STIFFENER AND STRAP, LH, Not for use with windrow speical, Serial no., Serial Range: 501-4806

1шт.

17

634557R91

DIVIDER W/STIFFENER AND STRAP, LH, For use with windrow special, Serial no., Serial Range: 501-4806

1шт.

17

634557R91

DIVIDER W/STIFFENER AND STRAP, LH, regular, Serial no. 4807 & above

1шт.

5/16 x 1/2 crg bolt w/nut

2шт.

5/16 x 3/4 crg bolt w/nut

1шт.

5/16 x 1 crg bolt w/nut

1шт.

1/4 nut

1шт.

1/4 x 3/4 slt-rd-hd mach screw

1шт.

5/16 lockwasher

4шт.

1/4 lockwasher

1шт.

18

939280R91

SUPPORT ASSY, cutter bar, Serial no. 7278 & above

1шт.

18

629737R91

SUPPORT W/ANCHOR, cutter bar, 10 ft., Serial no. 7277 & below

1шт.

18

629738R91

SUPPORT W/ANCHOR, cutter bar, 12 ft.

1шт.

18

654766R91

SUPPORT W/ANCHOR, cutter bar, 13 ft., Serial no. 7277 & below

1шт.

18

939281R91

SUPPORT ASSY, cutter bar, 13 ft., Serial no. 7278 & above

1шт.

18

588580R91

SUPPORT W/ANCHOR, cutter bar, 14 ft., Serial no. 7277 & below

1шт.

18

939282R91

SUPPORT ASSY, cutter bar, 14 ft., Serial no. 7278 & above

1шт.

5/16 x 3/4 crg bolt w/nut

1шт.

3/8 x 1 crg bolt w/nut

1шт.

7/16 x 1 crg bolt w/nut

1шт.

7/16 x 1-1/4 crg bolt w/nut

1шт.

1/2 x 3/4 crg bolt w/nut

1шт.

5/16 lockwasher

1шт.

3/8 lockwasher

1шт.

7/16 lockwasher

1шт.

1/2 lockwasher

1шт.

19

627819R91

DIVIDER W/STIFFENER AND STRAP, RH, Not for use with windrow special, Serial no., Serial Range: 501-4806

1шт.

19

634558R91

DIVIDER W/STIFFENER AND STRAP, RH, For use with windrow special

1шт.

19

634579R1

PLATE

STIFFENER, platform LH divider runner, Serial no., Serial Range: 501-4806

1шт.

19

634558R91

DIVIDER W/STIFFENER AND STRAP, RH, regular, Serial no. 4807 & above

1шт.

5/16 x 1/2 crg bolt w/nut

4шт.

5/16 x 3/4 crg bolt w/nut

1шт.

1/4 nut

1шт.

1/4 x 1/2 slt-rd-hd mach screw

1шт.

1/4 lockwasher

1шт.

5/16 lockwasher

5шт.

20

633293R1

STIFFENER, platform RH divider runner, Not for use with windrow special, Serial no., Serial Range: 501-4806

1шт.

20

634580R1

PLATE

STIFFENER, platform RH divider runner, For use with windrow special, Serial no., Serial Range: 501-4806

1шт.

20

634580R1

PLATE

STIFFENER, platform RH divider runner, regular, Serial no. 4807 & above

1шт.

3/8 x 1 crg bolt w/nut

3шт.

3/8 x 1-1/4 crg bolt w/nut

2шт.

3/8 lcokwasher

5шт.

21

588582R1

STRIPPER, platform auger, 14 ft. grain

2шт.

5/16 x 3/4 crg bolt w/nut

1шт.

5/16 lockwasher

1шт.

3420H

13/32 x 1-3/4 x 16 GA washer

1шт.

22

564906R1

HINGE, feeder front shield door

1шт.

23

564825R1

LINK, divider rod

1шт.

7/16 x 1-1/2 wagon box-hd rivet

2шт.

15/32 x 1 x 11 GA washer

4шт.

24

564810R91

PLATE W/HOUSING, platform auger adjusting left, 14 ft., 10 ft. and 13 ft., Serial no. 11763 & below

1шт.

24

158949C91

HUB ASSY, platform auger adjusting LH, 10 ft. and 13 ft., Serial no. 11764 & above

1шт.

25

M86308

BOLT, platform auger LH adjusting, 3/8 x 5-1/2

1шт.

3/8 nut

1шт.

13/32 x 1 x 16 GA washer

1шт.

26

633292R1

STIFFENER, platform LH divider runner, Not for use with windrow special, Serial no. 501 to 4806, For use with windrow special, Serial no., Serial Range: 501-4806

1шт.

26

634579R1

PLATE

STIFFENER, platform LH divider runner, regular, Serial no. 4807 & above

1шт.

5/16 x 1 crg bolt w/nut

2шт.

3/8 x 1 crg bolt w/nut

3шт.

1/2 x 1-1/2 crg bolt w/nut

3шт.

5/16 lockwasher

2шт.

3/8 lockwasher

3шт.

1/2 lockwasher

3шт.

27

568309R91

ROD

W/LINK, divider, Includes ref. no. 25

2шт.

28

568443R2

DEFLECTOR, platform end sheet LH, regular for rice, special for grain

1шт.

1/4 nut

4шт.

1/4 x 1/2 slt-hd-hd mach screw

3шт.

1/4 x 3/4 slt-rd-hd mach screw

1шт.

1/4 lockwasher

4шт.

29

564918R1

ROD, feeder front shield door hinge

1шт.

30

564905R1

DOOR, feeder front shield

1шт.

31

568444R2

DEFLECTOR, platform end sheet RH, regular for rice, special for grain, For 20 in. OD auger

1шт.

1/4 nut

4шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-rd-hd mach screw

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-rd-hd mach screw

1шт.

1/4 lockwasher

4шт.

32

936544R91

BRACKET PLATFORM EXTENSION SUPPORT, Less cutting parts, Serial no. 4807 & above

3шт.

3/8 x 1 crg bolt w/nut

3шт.

3/8 lockwasher

3шт.

33

654770R1

ANGLE, auger stripper LH, 13 ft.

1шт.

33

654771R1

ANGLE, auger stripper RH, 13 ft.

1шт.

3/8 x 3/4 crg bolt w/nut

8шт.

1/2 x 1-1/4 crg bolt w/nut

6шт.

3/8 lockwasher

8шт.

1/2 lockwasher

6шт.

34

654772R1

STRIPPER, platform auger, 13 ft.

2шт.

35

NOT USED THIS APPLICATION

1шт.

36

NOT USED THIS APPLICATION

1шт.

37

NOT USED THIS APPLICATION

1шт.

38

NOT USED THIS APPLICATION

1шт.
